Murata, BNX 15 A 50V dc 1 GHz, 1MHz, Through Hole EMI Filter, Pin
- RS Stock No.:
- 216-6042
- Distrelec Article No.:
- 303-73-164
- Mfr. Part No.:
- BNX005-11
- Brand:
- Murata

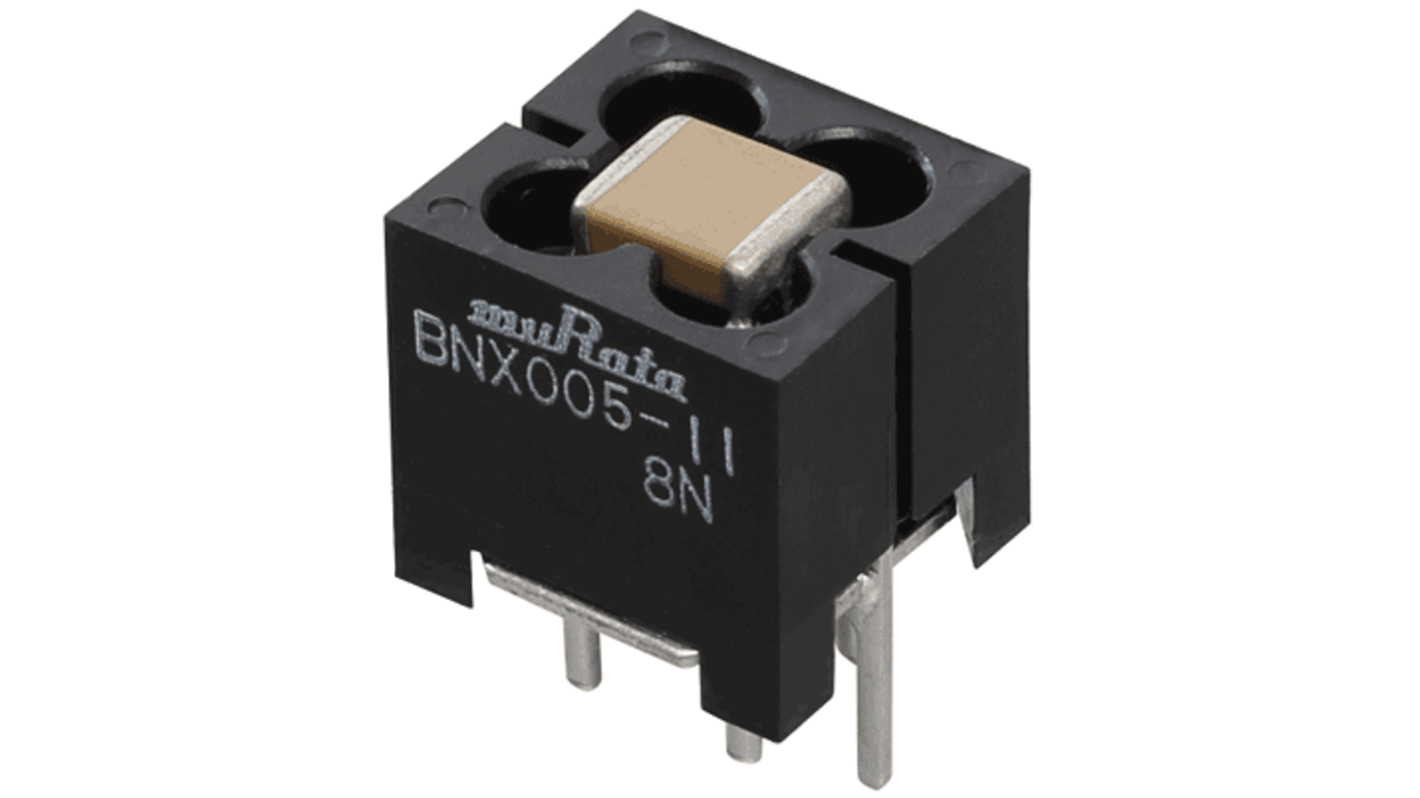

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$14.76
(exc. GST)
$16.24
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 20 unit(s) ready to ship from another location
- Plus 565 unit(s) shipping from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | $14.76 |
| 25 - 49 | $14.41 |
| 50 + | $14.17 |
*price indicative
- RS Stock No.:
- 216-6042
- Distrelec Article No.:
- 303-73-164
- Mfr. Part No.:
- BNX005-11
- Brand:
- Murata
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Product Type | EMI Filter | |
| Maximum Current | 15A | |
| Maximum Voltage | 50V dc | |
| Mount Type | Through Hole | |
| Packaging | 100 pcs per Box | |
| Termination Style | Pin | |
| Series | BNX | |
| Operating Frequency | 1, 1GHz | |
| Capacitance | 1μF | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 12mm | |
| Resistance | 100mΩ | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Product Type EMI Filter | ||
Maximum Current 15A | ||
Maximum Voltage 50V dc | ||
Mount Type Through Hole | ||
Packaging 100 pcs per Box | ||
Termination Style Pin | ||
Series BNX | ||
Operating Frequency 1, 1GHz | ||
Capacitance 1μF | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 12mm | ||
Resistance 100mΩ | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- JP
The Murata BNX series 50 V EMI suppression filter. The block type "EMIFIL" BNX series incorporates through-type capacitor, monolithic chip capacitors and bead. The BNX series has high performance and used in DC power circuits.
The filter enables obtaining high insertion loss in wide frequency ranges from 0.5MHz to 1GHz
Effective for impulse noise such as electrostatic discharge or spike noise
There are no connection routes in the current circuits, thus ensuring highly reliable performance.
