- RS Stock No.:
- 167-4995
- Mfr. Part No.:
- BNX023-01L
- Brand:
- Murata
2800 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Reel of 400)
$4.664
(exc. GST)
$5.13
(inc. GST)
Units | Per unit | Per Reel* |
400 - 1600 | $4.664 | $1,865.60 |
2000 + | $4.197 | $1,678.80 |
*price indicative |
- RS Stock No.:
- 167-4995
- Mfr. Part No.:
- BNX023-01L
- Brand:
- Murata
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
BNX02 Series

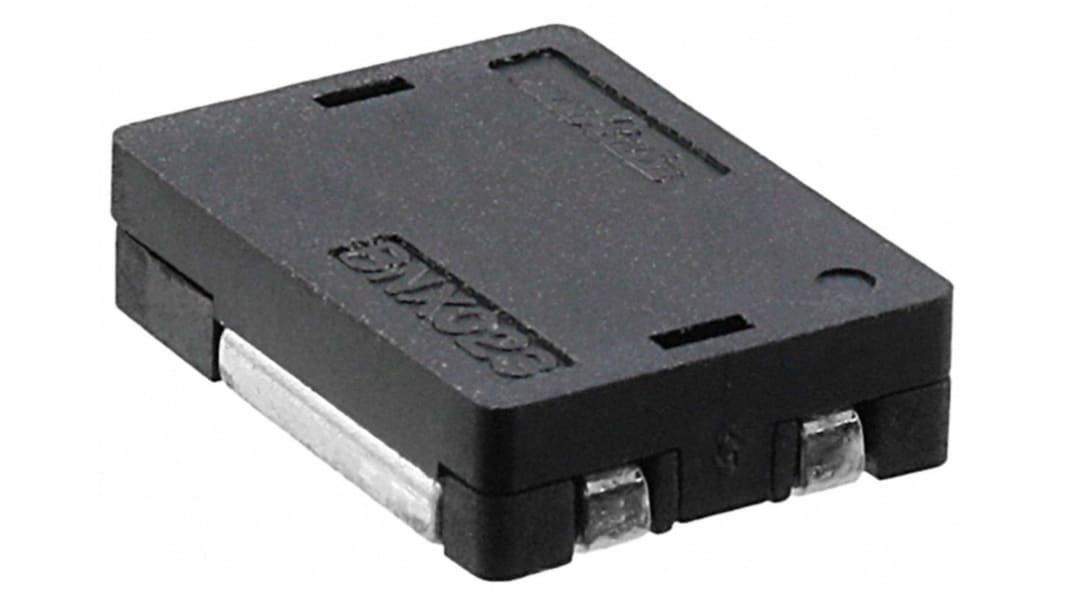

High performance SMD EMI suppression filter, providing excellent noise suppression on DC power lines.
Large rated current (10A - 15A) and Low DC Resistance. (0.43m ohm - Typ.)
High insertion loss characteristic over a wide frequency range of 1MHz to 1GHz
Mounting area and volume is reduced
Effective for impulse noise such as electro-static discharge or spike noise
High insertion loss characteristic over a wide frequency range of 1MHz to 1GHz
Mounting area and volume is reduced
Effective for impulse noise such as electro-static discharge or spike noise
Applications include:
Displays (PDP/LCD-TV)
Digital AV equipment
Amusement equipment
PC peripheral equipment
Industry equipment, measurement equipment, power supplies
Digital AV equipment
Amusement equipment
PC peripheral equipment
Industry equipment, measurement equipment, power supplies
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Maximum Current Rating | 15A |
Maximum Voltage Rating | 100 V dc |
Mounting Type | Surface Mount |
Termination Style | Flat Contact |
Series | BNX02 |
Operating Frequency | 1 MHz → 1GHz |
Length | 12.1mm |
Depth | 9.1mm |
Height | 3.1mm |
Capacitance | 1µF |
Dimensions | 12.1 x 9.1 x 3.1mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
