RS PRO 2 Core Power Cable, Black 1.5mm² 90 °C, 100 m Cross Linked
- RS Stock No.:
- 196-4658
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 100 metres)*
$895.50
(exc. GST)
$985.05
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Temporarily out of stock
- 3 unit(s) shipping from 03 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | $895.50 | $8.955 |
| 5 + | $737.00 | $7.37 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
$480.40
(exc. GST)
$528.44
(inc. GST)
- RS Stock No.:
- 196-4658
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Power Cable | |
| Number of Cores | 2 | |
| Jacket Colour | Black | |
| Cable Length | 100m | |
| Jacket Material | Cross Linked | |
| Outside Diameter | 11mm | |
| Voltage | 1000V, 600V | |
| Minimum Operating Temperature | -15°C | |
| Conductor Type | Stranded | |
| Cable CSA | 1.5mm² | |
| Standards/Approvals | BASEC | |
| Conductor Material | Annealed Copper | |
| Fire Behaviour | Flame Retardant | |
| Size of Strands | 0.53mm | |
| Maximum Operating Temperature | 90°C | |
| Number of Strands | 7 | |
| Core Strands | 7 x 0.53mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Power Cable | ||
Number of Cores 2 | ||
Jacket Colour Black | ||
Cable Length 100m | ||
Jacket Material Cross Linked | ||
Outside Diameter 11mm | ||
Voltage 1000V, 600V | ||
Minimum Operating Temperature -15°C | ||
Conductor Type Stranded | ||
Cable CSA 1.5mm² | ||
Standards/Approvals BASEC | ||
Conductor Material Annealed Copper | ||
Fire Behaviour Flame Retardant | ||
Size of Strands 0.53mm | ||
Maximum Operating Temperature 90°C | ||
Number of Strands 7 | ||
Core Strands 7 x 0.53mm | ||
- COO (Country of Origin):
- GB

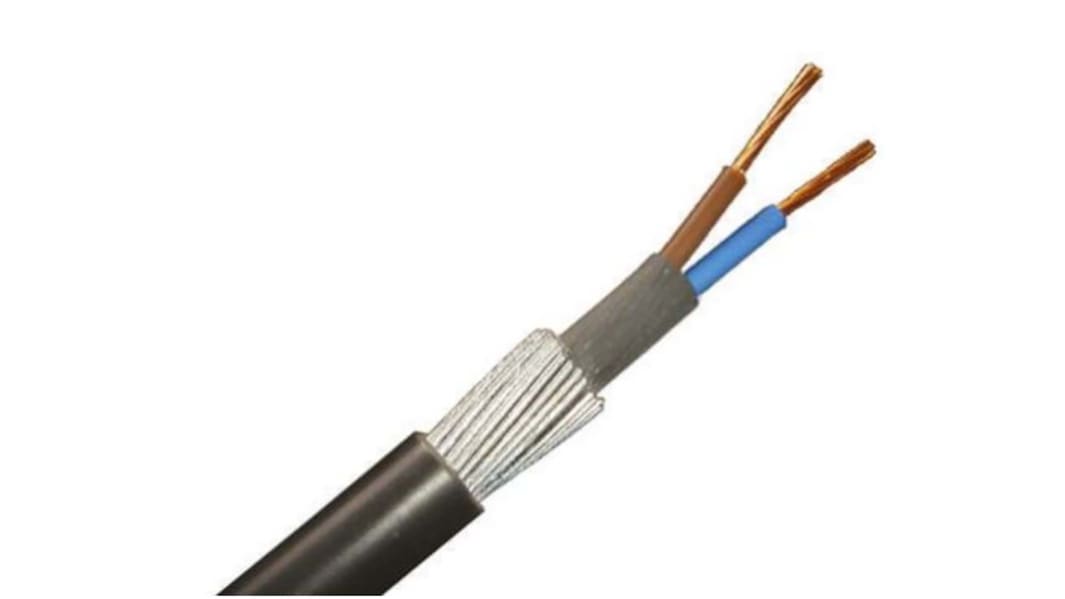

RS PRO 2 Core Armoured Power Cable 600/100V
A Steel Wire Armoured (SWA) power cable manufactured to BS 5467 ideally suited for use with industrial wirings and mains distribution. The 2 core cable features plain annealed Copper conductors for excellent conductivity and is manufactured with galvanised Steel wire armour for improved protection from mechanical stresses greatly improving the tensile strength of the power cable. ;Featuring Cross-linked Polyethylene (XPLE) insulation providing enhanced thermal and mechanical properties with increased chemical resistance, a layer of PVC bedding and a waterproof PVC sheath.;A hardwearing armoured power cable suitable for a wide range of applications and environments including direct burial, embedding in concrete and underground ducting.
Features and Benefits
2 core power cable
Galvanised Steel wire braid
Rated at 600/1000V
1.5mm stranded plain annealed Copper
XPLE insulation
PVC bedding
PVC sheath
100m in length
Standards and Approvals: BS 5467
