RS PRO 5 Core Power Cable, 10 mm², 50m Armoured PVC Sheath, 1000, 600 V
- RS Stock No.:
- 185-4009
- Brand:
- RS PRO
6 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) 1 Reel of 50 Metre(s)
$2,029.30
(exc. GST)
$2,232.23
(inc. GST)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | $2,029.30 | $40.586 |
| 5 + | $1,670.12 | $33.402 |
| *price indicative | ||
- RS Stock No.:
- 185-4009
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

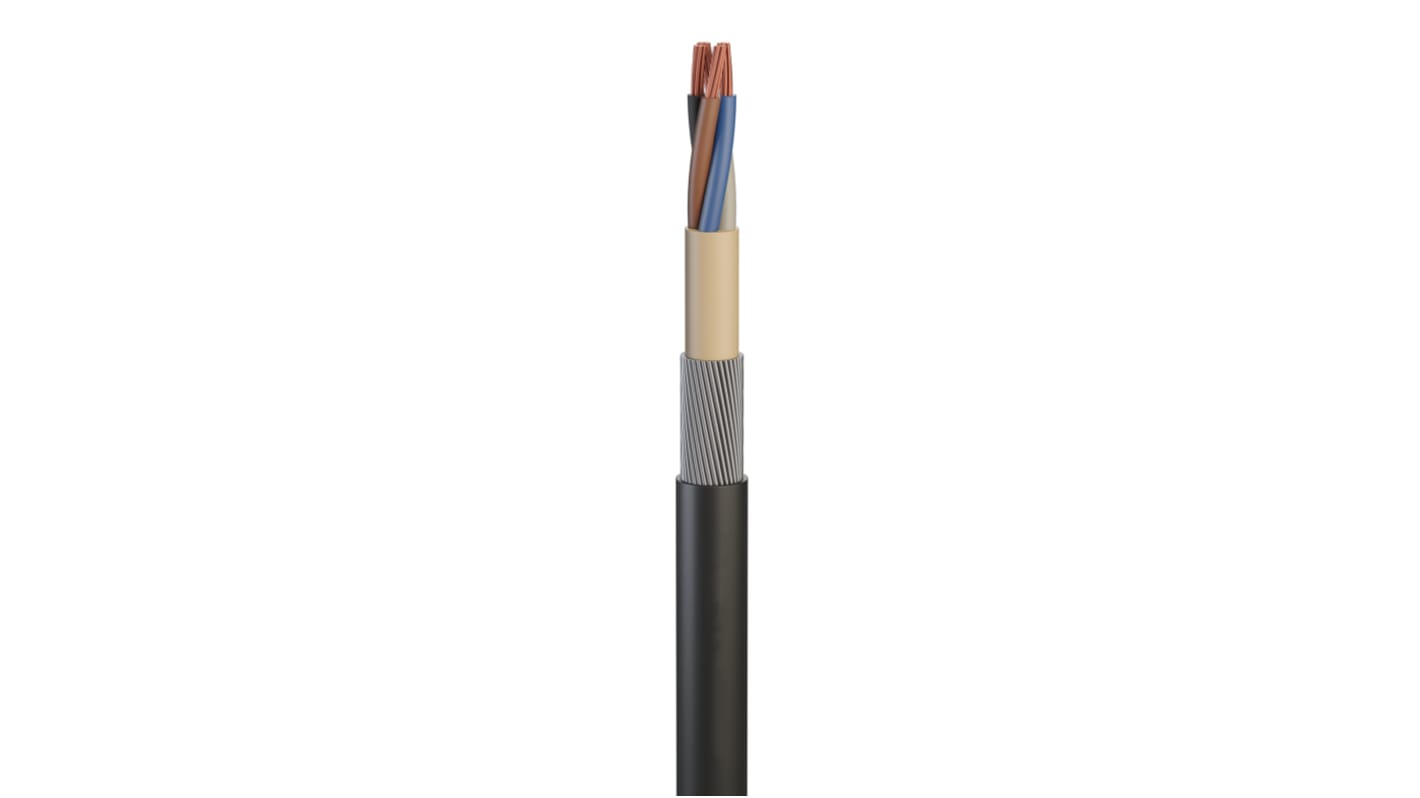

RS PRO Galvanised Steel Wire Armour Cable with XLPE Insulation, Plain Annealed Copper Conductor, PVC Sheathed and PVC Bedded
Introducing steel wire armoured cable (SWA Cable) from RS PRO, a range of high quality armoured cable ideal for applications requiring a secure and reliable electrical supply of mains electricity in harsh environments. RS PRO steel wire armoured cables feature plain annealed copper conductors, XLPE insulation and durable PVC sheath making them suitable for use in a wide range of applications. The high quality design means that the cables can be used for underground application either direct or via ducting underground as well as for use in cable or ladder work, making them a highly versatile and robust choice of cable.
Features and benefits
- Galvanised steel wire armoured construction
- XLPE Insulation
- Plain annealed copper conductor
- PVC Sheath
- PVC Bedded
- 5 Core
- Suitable for a wide range of applications
Application
Steel Wire Armoured (SWA) cables are commonly used for industrial wiring and mains distribution. The durable and armoured construction of SAW cable makes them ideal for use in industrial areas, in and around buildings and other similar environments. Their robust design also ensures they are protected from harsh environments, making them ideal for booth indoor and outdoor use. Steel wire armoured cables are used in applications such as:
- Construction sites
- Railways
- Underground
- Garages
FAQs
Can this be used underground?
Yes, this SWA cable from RS PRO is suitable for underground applications with free draining soil. However, care should be taken to prevent the cable being submerged in liquid.
What core colours are included?
This 5 core cable features Green/Yellow, Blue, Brown, Black and Grey colours.
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 10 mm² |
| Number of Cores | 5 |
| Length | 50m |
| Armoured | Yes |
| Outer Diameter | 21.6mm |
| Sheath Material | PVC |
| CPR Certification | Eca |
| Voltage Rating | 1000, 600 V |
| Conductor Strand Type | Stranded |
| Insulation Material | XLPE |
| Conductor Material | Copper |
| Core Strands | 7/1.35 mm |
| American Wire Gauge | 7 AWG |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +90°C |
| Standards Met | BS EN 60228 |
| Cable Shape | Multicore |
| Size of Strands | 1.35 mm |
