Acc Silicones QSIL 216 Transparent Low Flammability Silicone Potting Compound

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

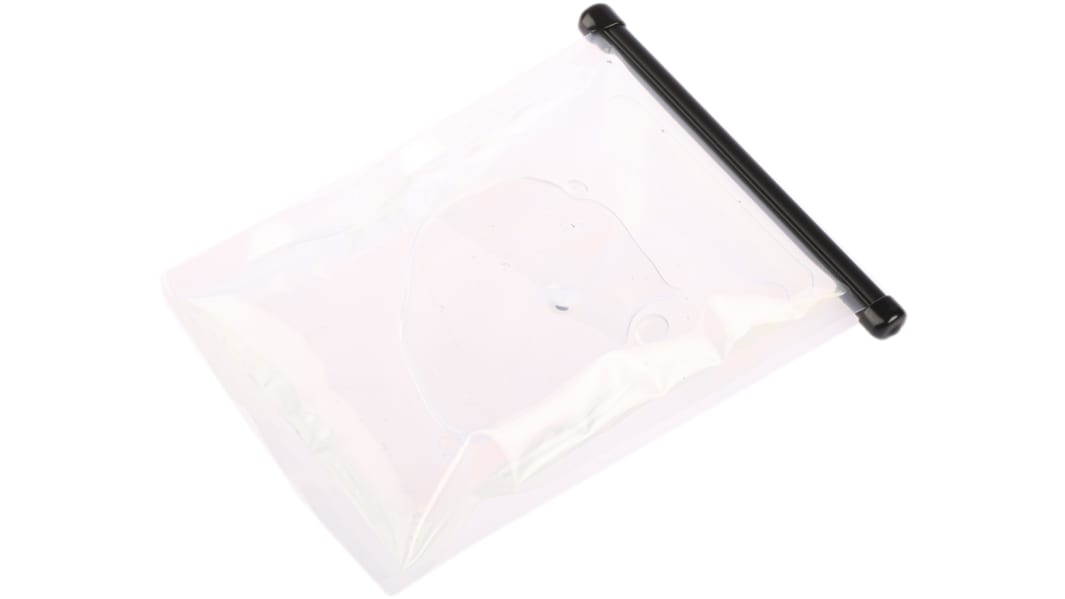

Q-Sil 216 Optically Clear Silicone Encapsulant Twin Pack

QSil216 is a 2-component, optically clear silicone elastomer system specially designed for electronic potting applications. Supplied in an easy to use twin pack there is no need for weighing with all the mixing contained within the package. It offers good protection against impact damage and can be employed in areas where the transmission of light is important. The cured product is a hard, medium to high modulus elastomer that can be repaired.

Non Yellowing under UV light
Optically clear
Low Viscosity
No messy mixing
Ideal for use with LED's
Small volume twin pack

ACC Silicones Silicone Encapsulant Twin Pack

The ACC Silicones 250g silicone encapsulant twin pack is a two-component, optically clear silicone elastomer system specially designed for electronic potting applications. It offers good protection against impact damage and it can be employed in areas where the transmission of light is important. This cured product is a hard, medium to high modulus elastomer that can be repaired. The parts have relatively low viscosities and are readily mixed in a simple 10:1 ratio.

Features and Benefits

Non-yellowing under UV light Optically clear Low viscosity No messy mixing Ideal for use with LED's Small volume twin pack Hardness is 40 shore A Cure time is 20 hours Shelf life is 12 months Operating temperature ranges between -60⁰C and 204⁰C Thermal conductivity of 0.18W/mK

Certifications

ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007

Silicone Compounds - ACC

Specifications
Attribute Value
Product Material Silicone
Package Type Dual Cartridge
Package Size 250 g
Special Properties Low Flammability
Cure Time 20 h
Hardness 40 Shore A
Thermal Conductivity 0.18W/mK
Colour Transparent
Maximum Operating Temperature +204°C
Minimum Operating Temperature -60°C
Operating Temperature Range -60 +204 °C
29 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 119.00
(exc. GST)
$ 130.90
(inc. GST)
units
Per unit
1 - 5
$119.00
6 - 11
$116.51
12 +
$114.78
