Name: Finder PIR Motion Detector PIR Sensor, 10 m Sensor Range
Brand: Finder
SKU: 225-4636
Price: 50.55 AUD
Availability: InStock

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Detector Type	PIR Motion Detector
	Product Type	PIR Sensor
	Sensor Radius	10m
	Diameter	49mm
	Depth	68.7mm
	Mount Type	Bracket
	Series	18
	Supply Voltage	120, 230V ac
	IP Rating	IP40
	Standards/Approvals	EN 60669-1/EN 60669-2-1

	Select all
	Brand Finder
	Detector Type PIR Motion Detector
	Product Type PIR Sensor
	Sensor Radius 10m
	Diameter 49mm
	Depth 68.7mm
	Mount Type Bracket
	Series 18
	Supply Voltage 120, 230V ac
	IP Rating IP40
	Standards/Approvals EN 60669-1/EN 60669-2-1

COO (Country of Origin):: IT

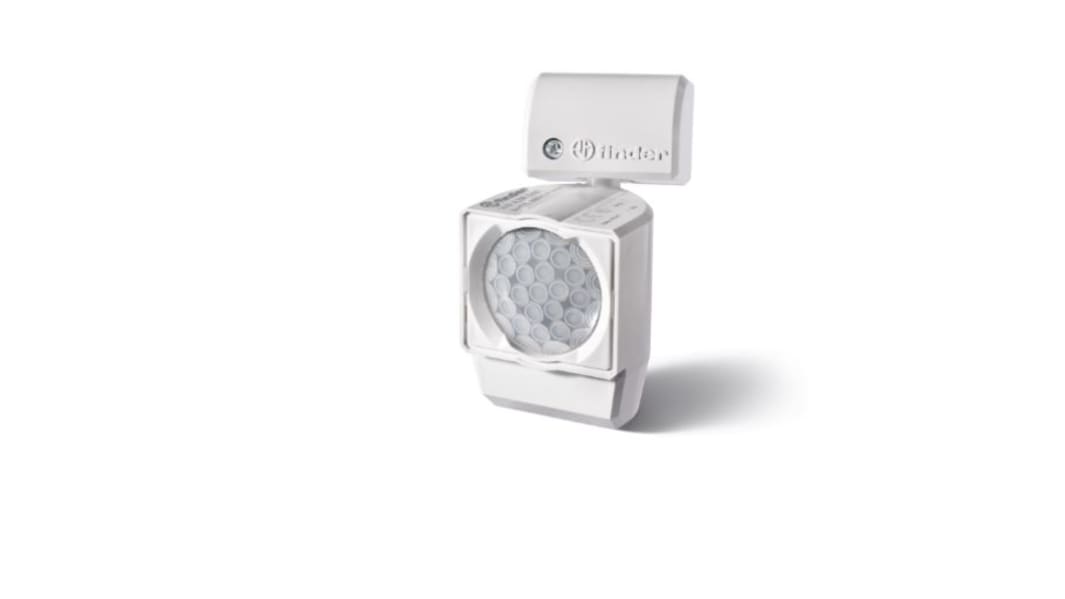

Finder Series 18 PIR Sensor, 10m Sensor Radius, PIR Motion Detector - 18.01.8.230.0000

This PIR sensor is a sophisticated indoor motion detector designed for reliable and efficient motion detection. With a sensing radius of up to 10m, it utilises cutting-edge motion sensing technology to enhance security and automation within environments. Its compact design is versatile for various internal installations, ensuring ease of integration into existing systems.

Features & Benefits

• Detects motion within a radius of 10m for effective surveillance

• Adjustable ambient light intervention threshold enhances performance

• Configurable output time ranging from 10 seconds to 12 minutes

• Compatible with various loads, ensuring broad application

• Designed for indoor use, promoting energy efficiency

• IP40 rated housing offers protection against dust ingress

Applications

• Utilised in residential and commercial lighting systems

• Ideal for security within offices and buildings

• Suitable for automated control in home and building management

• Used in workshops for enhanced monitoring and safety

How does the PIR sensor function in terms of energy efficiency?

The design incorporates energy-saving features that allow for precise control of lighting and other electrical systems, minimising unnecessary power consumption.

Can adjustments be made to the sensitivity settings?

Yes, the device allows for setting the ambient light intervention threshold, which ensures it only activates under specific lighting conditions.

What load capacities does the sensor support for various applications?

This sensor supports up to 10A at 120V AC and 230V AC, allowing it to manage a variety of electrical loads seamlessly.

Is installation straightforward for those unfamiliar with electrical systems?

The sensor comes with a clear installation sequence, making it easy for professionals to complete the setup with minimal complications.
