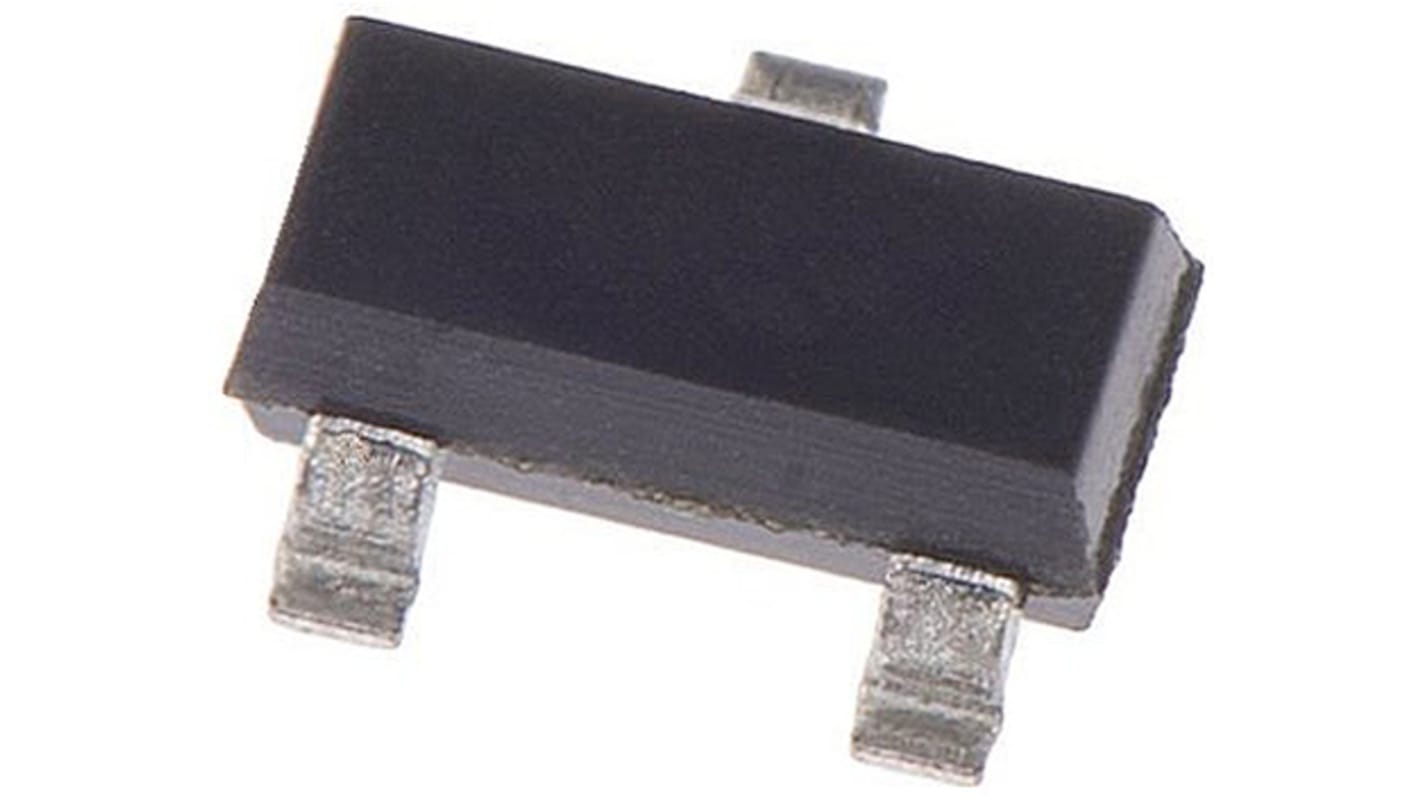

NXP BAP64-05,215 Dual Common Cathode PIN Diode, 100mA, 175V, 3-Pin SOT-23 (TO-236AB)
- RS Stock No.:
- 166-0556
- Mfr. Part No.:
- BAP64-05,215
- Brand:
- NXP
Discontinued product
- RS Stock No.:
- 166-0556
- Mfr. Part No.:
- BAP64-05,215
- Brand:
- NXP
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NXP | |
| Diode Configuration | Common Cathode | |
| Application | Attenuator, Switch | |
| Number of Elements per Chip | 2 | |
| Maximum Forward Current | 100mA | |
| Maximum Reverse Voltage | 175V | |
| Typical Carrier Life Time | 1.55µs | |
| Maximum Forward Voltage | 1.1V | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 (TO-236AB) | |
| Pin Count | 3 | |
| Maximum Diode Capacitance | 0.35pF | |
| Maximum Series Resistance @ Maximum IF | 1.35 Ω@ 100 mA | |
| Dimensions | 3 x 1.4 x 1mm | |
| Height | 1mm | |
| Length | 3mm | |
| Width | 1.4mm | |
| Minimum Operating Temperature | -65 °C | |
| Maximum Operating Temperature | +150 °C | |
