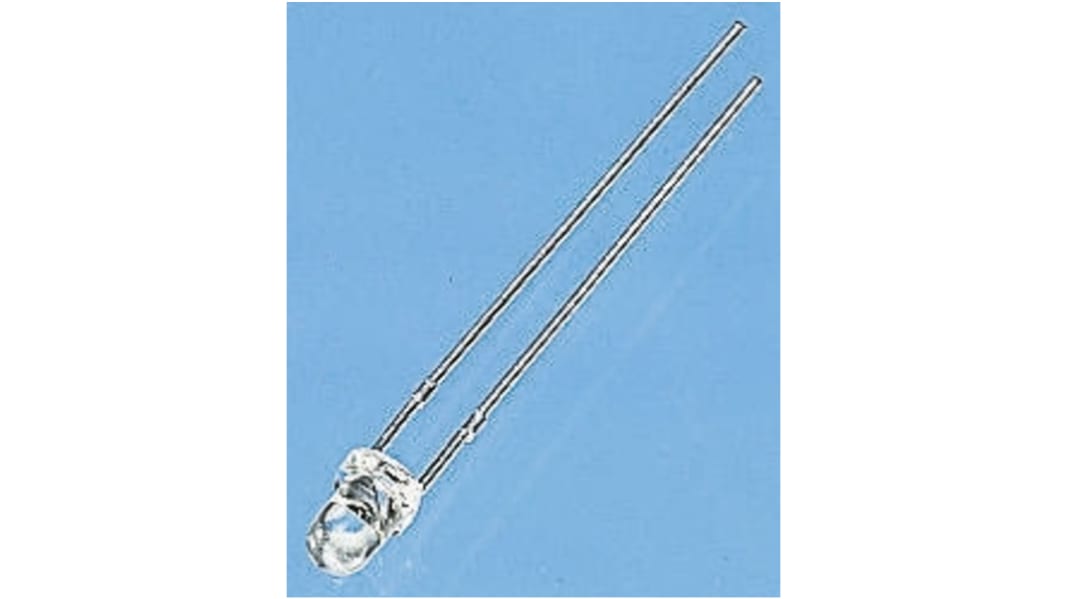

Vishay, TEFD4300 IR Si PIN Photodiode, ±20 °, Through Hole

  • RS Stock No. 145-1980
  • Mfr. Part No. TEFD4300
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

TEFD4300 Series PIN Photodiodes

The TEFD4300 series, from Vishay Semiconductor, are silicon PIN photodiodes with a high radiant sensitivity. They come in standard 3mm (T-1) through-hole packages with both clear or daylight filter options. Suitable applications include; high speed photo detector for data transmission, optical switches, counters and sorters, interrupters, encoders and position sensors.

Features:

• Package type: leaded
• Package form: T-1
• Dimensions (in mm): Ø 3
• High radiant sensitivity
• Suitable for visible and near infrared radiation
• Fast response times
• Angle of half sensitivity: ϕ = ± 20°
• Package matched with IR emitter series VSLB3940

Applications:

• High speed photo detector for data transmission
• Optical switches
• Counters and sorters
• Interrupters
• Encoders
• Position sensors

IR Photodiodes, Vishay Semiconductor

Specifications
Attribute Value
Spectrums Detected Infrared
Wavelength of Peak Sensitivity 950nm
Mounting Type Through Hole
Number of Pins 2
Diode Material Si
Minimum Wavelength Detected 350nm
Maximum Wavelength Detected 1120nm
Height 4.5mm
Angle of Half Sensitivity ±20 °
Diameter 3.2mm
2000 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Bag of 1000)
$ 0.532
(exc. GST)
$ 0.585
(inc. GST)
units
Per unit
Per Bag*
1000 +
$0.532
$532.00
*price indicative
