HARWIN P70 Series Vertical Surface Socket Pin, 1-Contact, 1 Row Solder
- RS Stock No.:
- 247-9192
- Mfr. Part No.:
- P70-6000045R
- Brand:
- HARWIN

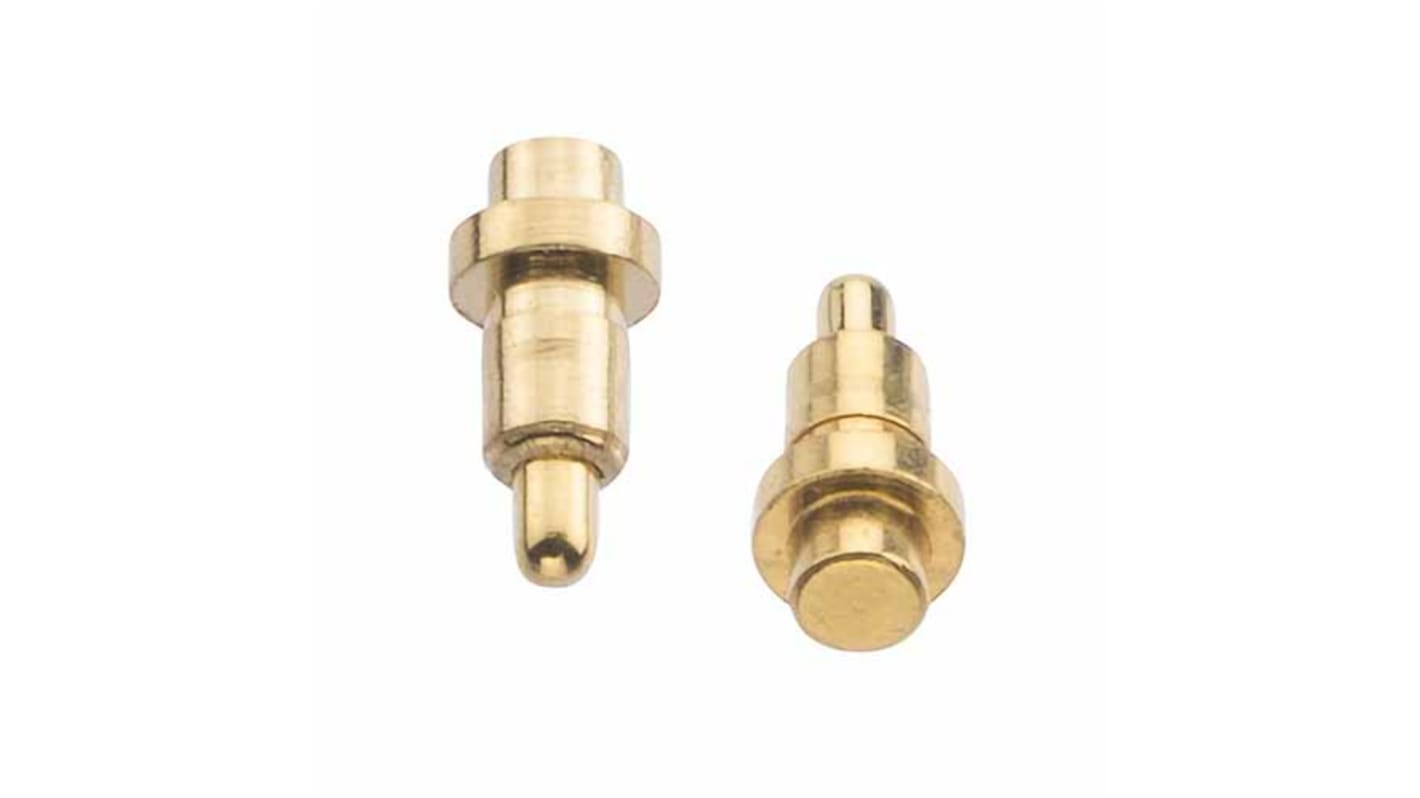

This image is representative of the product range
Get a bulk buy discount
Add 9000 more to save 10%
View bulk pricing optionsSubtotal (1 reel of 1800 units)*
$1,402.20
(exc. GST)
$1,542.60
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Temporarily out of stock
- 3,600 unit(s) shipping from 24 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* | Saving |
|---|---|---|---|
| 1800 - 7200 | $0.779 | $1,402.20 | - |
| 9000 + | $0.701 | $1,261.80 | 10% |
*price indicative
- RS Stock No.:
- 247-9192
- Mfr. Part No.:
- P70-6000045R
- Brand:
- HARWIN
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Number of Contacts | 1 | |
| Product Type | Socket Pin | |
| Number of Rows | 1 | |
| Sub Type | Pogo Pin | |
| Current | 1A | |
| Termination Type | Solder | |
| Housing Material | Thermoplastic | |
| Mount Type | Surface | |
| Orientation | Vertical | |
| Stacking Height | 5mm | |
| Connector System | Wire-to-Board | |
| Series | P70 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Contact Material | Copper | |
| Contact Plating | Gold | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Number of Contacts 1 | ||
Product Type Socket Pin | ||
Number of Rows 1 | ||
Sub Type Pogo Pin | ||
Current 1A | ||
Termination Type Solder | ||
Housing Material Thermoplastic | ||
Mount Type Surface | ||
Orientation Vertical | ||
Stacking Height 5mm | ||
Connector System Wire-to-Board | ||
Series P70 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Contact Material Copper | ||
Contact Plating Gold | ||
Standards/Approvals RoHS | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The HARWIN Pogo pins are intended to be used as surface mount with a location peg, but they can also be used as a through board tail version. The gold finish is given for improved wear resistance.
Connector orientation vertical
Surface mount connection
