Keysight Technologies Embedded Serial Triggering and Analysis for InfiniiVision EDUX1000 Series Oscilloscopes

RS Stock No.:: 134-6153
Mfr. Part No.:: EDUX1EMBD
Brand:: Keysight Technologies

Keysight Technologies Embedded Serial Triggering and Analysis for InfiniiVision EDUX1000 Series Oscilloscopes

Subtotal (1 unit)*

$307.00

(exc. GST)

$337.70

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Stocked by manufacturer

Ready to ship from 22 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$307.00

*price indicative

RS Stock No.:: 134-6153
Mfr. Part No.:: EDUX1EMBD
Brand:: Keysight Technologies

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keysight Technologies
	Product Type	Oscilloscope Software
	For Use With	EDUX1102A Digital Oscilloscope, EDUX1102G Digital Oscilloscope
	Software Name	Embedded Serial Triggering and Analysis for InfiniiVision EDUX1000 Series Oscilloscopes
	Languages Available	Korean, Portuguese, Thai, Simplified Chinese, Italian, French, Traditional Chinese, Japanese, German, Polish, Czech, English, Russian, Turkish, Spanish
	Cable Included	No
	Standards/Approvals	National Industrial Security Program Operation Manual (NISPOM) Chapter 8 requirements

	Select all
	Brand Keysight Technologies
	Product Type Oscilloscope Software
	For Use With EDUX1102A Digital Oscilloscope, EDUX1102G Digital Oscilloscope
	Software Name Embedded Serial Triggering and Analysis for InfiniiVision EDUX1000 Series Oscilloscopes
	Languages Available Korean, Portuguese, Thai, Simplified Chinese, Italian, French, Traditional Chinese, Japanese, German, Polish, Czech, English, Russian, Turkish, Spanish
	Cable Included No
	Standards/Approvals National Industrial Security Program Operation Manual (NISPOM) Chapter 8 requirements

Keysight 1000 X-Series Digital Oscilloscopes

RoHS Status: Exempt

COO (Country of Origin):: US

Keysight EDUX1EMBD Embedded Serial Triggering and Analysis for InfiniiVision EDUX1000 Series Oscilloscopes

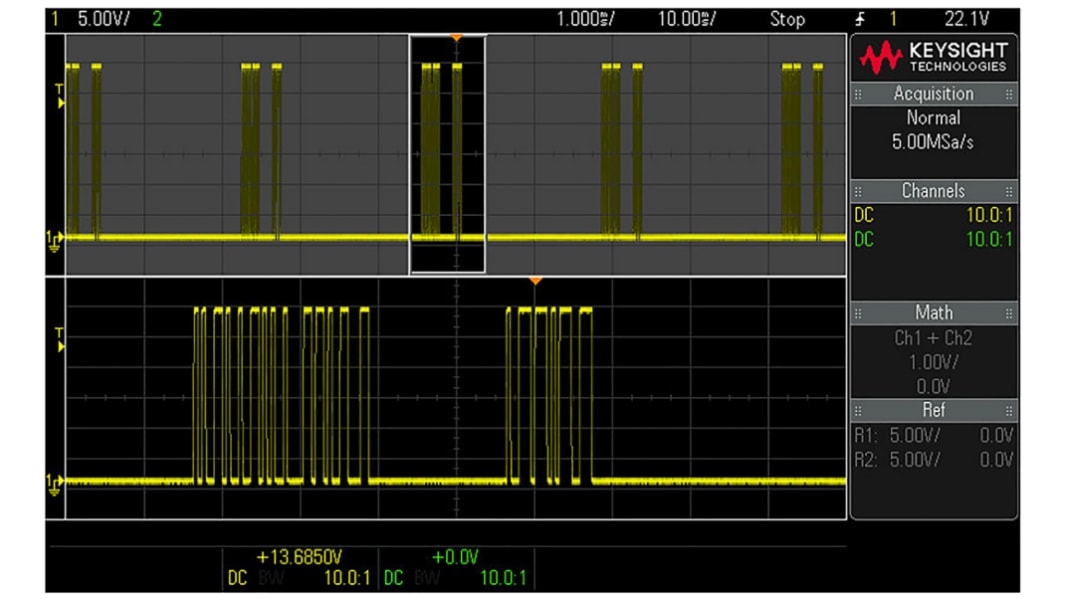

The I²C and UART/RS-232 serial decode option for InfiniiVision 1000 X-Series oscilloscopes displays responsive, time-aligned, on-screen decode of Inter-Integrated Circuit (I²C) and UART/RS-232 serial communication buses. Because this capability is hardware-based, it provides the fastest throughput solution for triggering on and analyzing these serial buses. These buses are found in a wide variety of embedded designs.;This measurement application option works with InfiniiVision 1000 X-Series EDUX1002A and EDUX1002G models.

Features and Benefits

The fastest throughput oscilloscope solution for triggering on and analyzing I²C and UART/RS-232 serial buses;Support for the PC serial protocol;On-screen serial decode time-correlated with the serial data waveforms;Protocol trigger and hardware-based protocol decode

Keysight InfiniiVision Series

Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.

Note

Manufacturer’s Warranty
