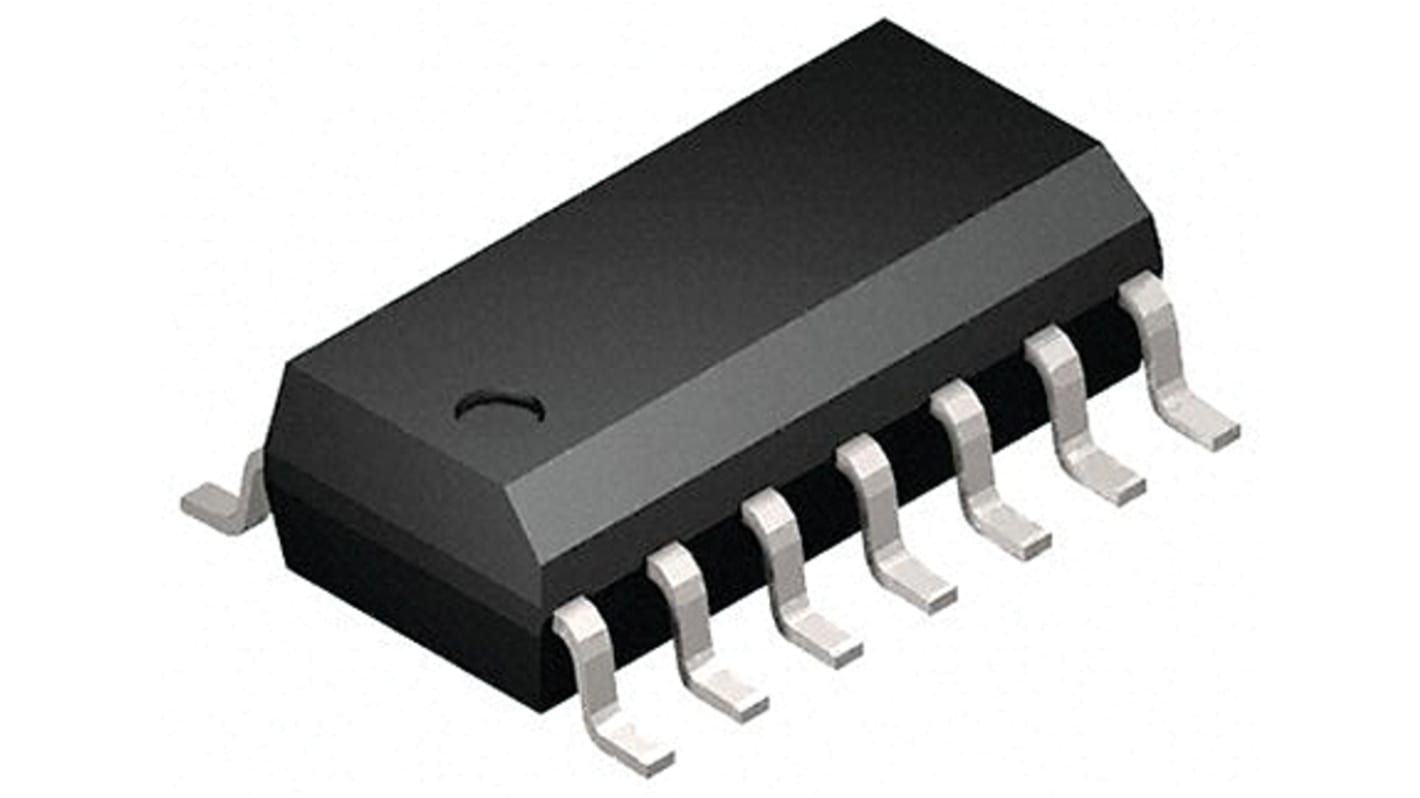

LM2902WDT STMicroelectronics, Low Power, Op Amp, 1.3MHz, 3 → 30 V, 14-Pin SOIC
RS Stock No.:
860-7315
Mfr. Part No.:
LM2902WDT
Brand:
STMicroelectronics
Technical data sheets (2)
This image is representative of the product range
View all Op Amps
Discontinued product
RS Stock No.:
860-7315
Mfr. Part No.:
LM2902WDT
Brand:
STMicroelectronics
Legislation and Compliance
Product Details
Specifications
RoHS Certificate of Compliance
Statement of conformity
LM2902, LM2902W, Low Power, Quad Operational Amplifiers
The
LM2902x
device contains four independent operational amplifiers with internal frequency compensation.
Gain Bandwidth Product: 1.3MHz
Slew Rate: 0.4V/μs
Max input offset voltage: 9mV (LM2902), 4mV (LM2902A)
LM2902xW parts feature internal ESD protection, 2kV HBM
Power supply: +3V to +30Vdc
RS Product Codes
793-1368
LM2902D SOIC14
714-0748
LM2902DT SOIC14
714-7395
LM2902PT TSSOP14
860-7315
LM2902WDT ESD SOIC14
714-7399
LM2902YDT Automotive SOIC14
791-9194
LM2902WYDT Automotive ESD SOIC14
791-9197
LM2902AWYDT Automotive ESD SOIC14
791-9190
LM2902AWYPT Automotive ESD TSSOP14
Note
Parts containing 'Y' suffix are automotive qualified to AEC-Q100.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Attribute
Value
Amplifier Type
Low Power
Mounting Type
Surface Mount
Package Type
SOIC
Power Supply Type
Dual, Single
Number of Channels per Chip
4
Pin Count
14
Typical Single Supply Voltage
3 → 30 V
Typical Gain Bandwidth Product
1.3MHz
Typical Dual Supply Voltage
±1.5 → ±15V
Typical Slew Rate
0.4V/µs
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Typical Voltage Gain
100 dB
Rail to Rail
No
Height
1.65mm
Length
8.75mm
Dimensions
8.75 x 4 x 1.65mm
Width
4mm
Typical Input Voltage Noise Density
40nV/√Hz
