OPA354AIDBVT Texas Instruments, Operational Amplifier, 100 MHz, 5-Pin 5.5V SOT-23
- RS Stock No.:
- 796-8158
- Mfr. Part No.:
- OPA354AIDBVT
- Brand:
- Texas Instruments

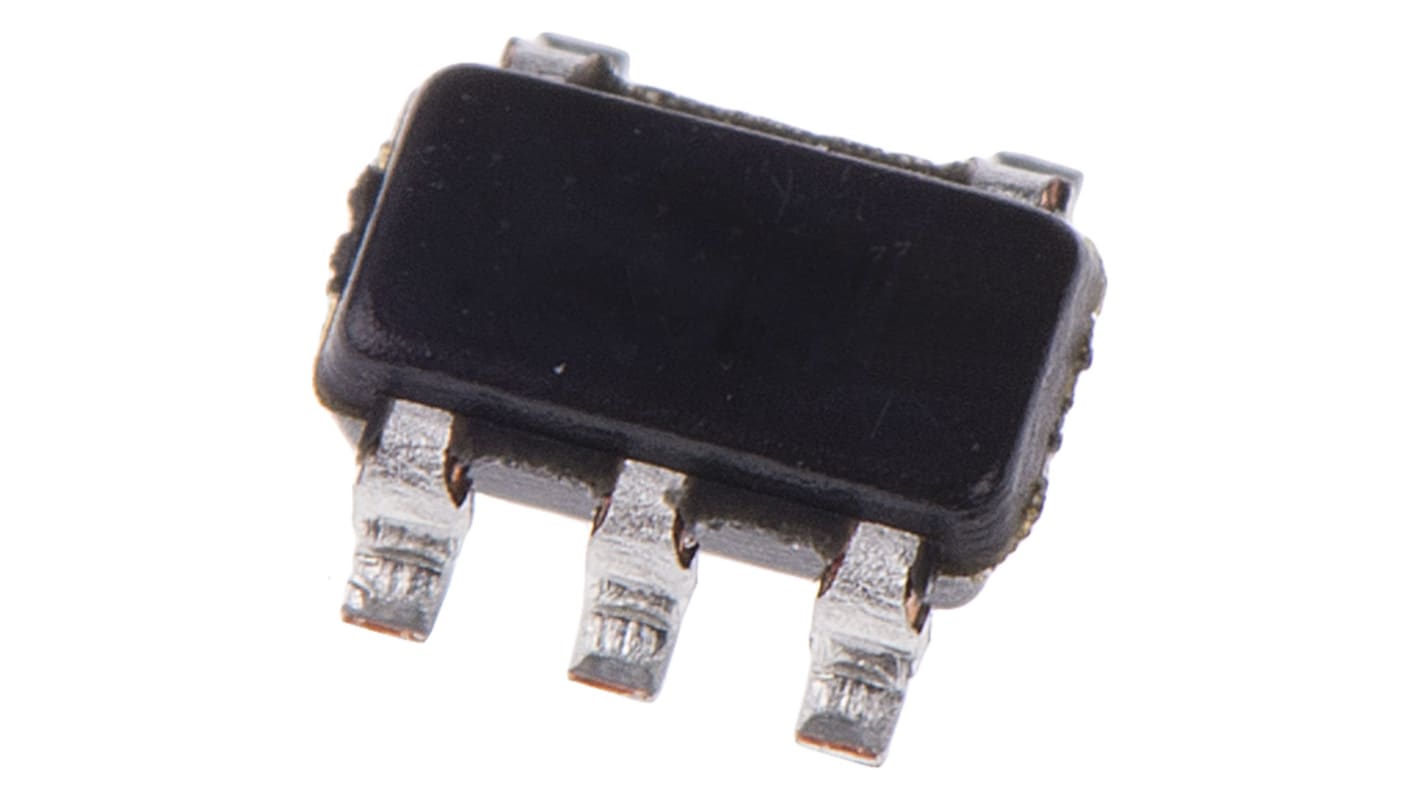

This image is representative of the product range
Subtotal (1 pack of 5 units)*
$24.16
(exc. GST)
$26.575
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 20 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 17 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | $4.832 | $24.16 |
*price indicative
- RS Stock No.:
- 796-8158
- Mfr. Part No.:
- OPA354AIDBVT
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Number of Channels | 1 | |
| Pin Count | 5 | |
| GBP - Gain Bandwidth Product | 100MHz | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.5V | |
| Input Bias Current | ±50 pA | |
| Vos - Input Offset Voltage | ±10 mV | |
| Minimum Operating Temperature | -40°C | |
| Slew Rate | 150V/μs | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.3mm | |
| Length | 3.05mm | |
| Standards/Approvals | RoHS | |
| Width | 1.75mm | |
| Series | OPA354 | |
| Automotive Standard | AEC-Q100 | |
| Output Current | 100mA | |
| Input Offset Current | ±50 pA | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Number of Channels 1 | ||
Pin Count 5 | ||
GBP - Gain Bandwidth Product 100MHz | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.5V | ||
Input Bias Current ±50 pA | ||
Vos - Input Offset Voltage ±10 mV | ||
Minimum Operating Temperature -40°C | ||
Slew Rate 150V/μs | ||
Maximum Operating Temperature 125°C | ||
Height 1.3mm | ||
Length 3.05mm | ||
Standards/Approvals RoHS | ||
Width 1.75mm | ||
Series OPA354 | ||
Automotive Standard AEC-Q100 | ||
Output Current 100mA | ||
Input Offset Current ±50 pA | ||
High-Speed Operational Amplifiers, OPA Series, Texas Instruments
