MC33072ADR2G onsemi, Operational Amplifier, 4.5 MHz, 8-Pin 44 V SOIC
- RS Stock No.:
- 773-7740
- Mfr. Part No.:
- MC33072ADR2G
- Brand:
- onsemi

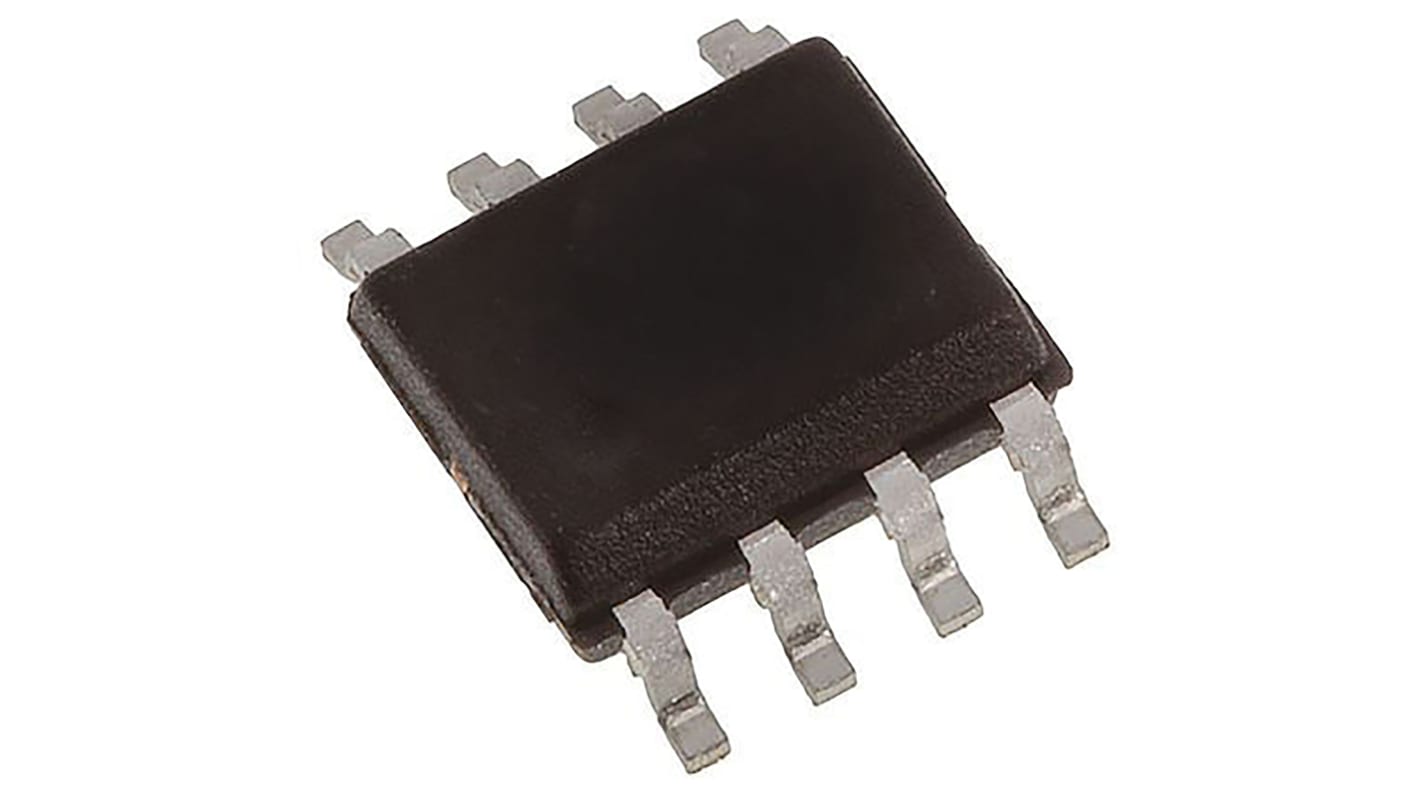

This image is representative of the product range
Bulk discount available
Subtotal (1 tape of 5 units)*
$3.61
(exc. GST)
$3.97
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- 760 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 620 | $0.722 | $3.61 |
| 625 - 1245 | $0.70 | $3.50 |
| 1250 + | $0.692 | $3.46 |
*price indicative
- RS Stock No.:
- 773-7740
- Mfr. Part No.:
- MC33072ADR2G
- Brand:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 4.5MHz | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 44V | |
| Vos - Input Offset Voltage | 5 mV | |
| Slew Rate | 13V/μs | |
| Input Bias Current | 500 nA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 5mm | |
| Height | 1.5mm | |
| Standards/Approvals | RoHS | |
| Series | MC33072 | |
| Width | 4 mm | |
| Output Current | 30mA | |
| Automotive Standard | AEC-Q100 | |
| Input Offset Current | 50 nA | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOIC | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 4.5MHz | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 44V | ||
Vos - Input Offset Voltage 5 mV | ||
Slew Rate 13V/μs | ||
Input Bias Current 500 nA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 5mm | ||
Height 1.5mm | ||
Standards/Approvals RoHS | ||
Series MC33072 | ||
Width 4 mm | ||
Output Current 30mA | ||
Automotive Standard AEC-Q100 | ||
Input Offset Current 50 nA | ||
MC33071/2/4, MC34071/2/4, NCV33072/4, Single Supply 3 V to 44 V, Operational Amplifiers, ON Semiconductor
The ON Semiconductor MC33071/72/74, MC34071/72/74, NCV33072/74A series of Op Amps are available in single, dual and quad configurations. They offer 4.5 MHz of gain bandwidth product, 13 V/μs slew rate and fast settling time without the use of JFET device technology.
This series can be operated from split supplies but are suited for single supply operation as the common mode input voltage range includes ground potential (VEE). These Op Amps feature high input resistance, low input offset voltage and high gain. All variants are available in plastic DIP, SOIC and TSSOP surface mount packages.
Fast Settling Time: 1.1 μs to 0.1%
Wide Single Supply Operation: 3 V to 44 V
Wide Input Common Mode Voltage Range: Includes Ground (VEE)
Low Input Offset Voltage: 3 mV Max. (A Suffix)
Large Output Voltage Swing: -14.7 V to +14 V (with ±15 V Supplies)
Large Capacitance Drive Capability: 0 pF to 10000 pF
Low Total Harmonic Distortion: 0.02%
Excellent Phase Margin: 60°
Excellent Gain Margin: 12 dB
Output Short Circuit Protection
Operational Amplifiers, ON Semiconductor
