MC33072DR2G onsemi, Op Amp, 4.5MHz, 5 → 28 V, 8-Pin SOIC

Name: MC33072DR2G onsemi, Op Amp, 4.5MHz, 5 → 28 V, 8-Pin SOIC
Brand: onsemi
SKU: 689-6728
Price: 1.67 AUD
Availability: InStock

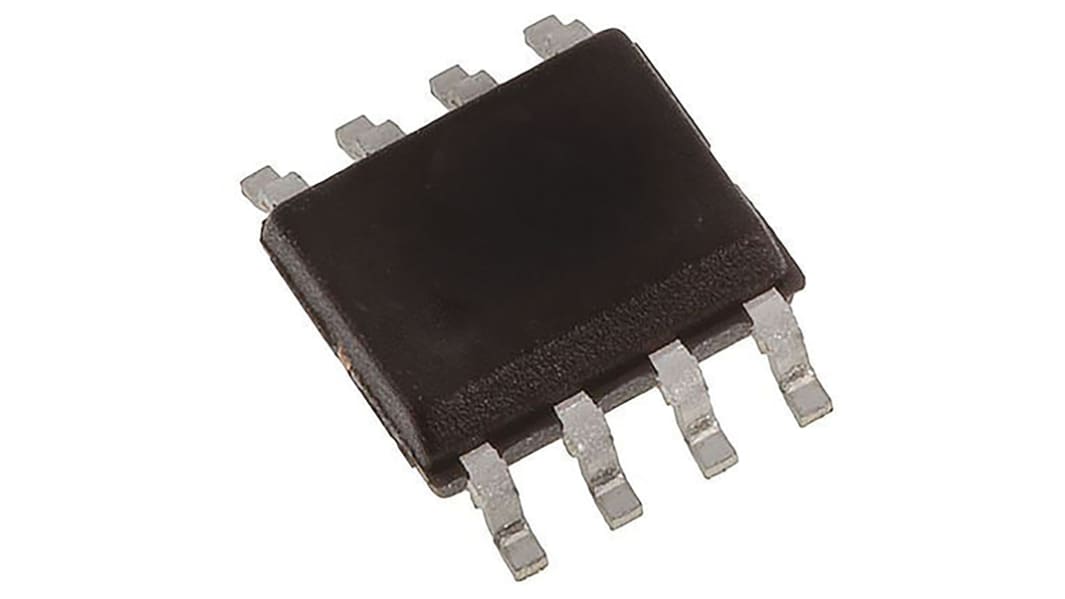

This image is representative of the product range

1 / 2

Bulk discount available

Subtotal (1 pack of 5 units)**

$7.60

(exc. GST)

$8.35

(inc. GST)

1470 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time qty checker

**price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	onsemi
	Mounting Type	Surface Mount
	Package Type	SOIC
	Power Supply Type	Dual, Single
	Number of Channels per Chip	2
	Pin Count	8
	Typical Single Supply Voltage	5 → 28 V
	Typical Gain Bandwidth Product	4.5MHz
	Typical Dual Supply Voltage	±12 V, ±15 V, ±18 V, ±3 V, ±5 V, ±9 V
	Typical Slew Rate	13V/µs
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-40 °C
	Typical Voltage Gain	100 dB
	Rail to Rail	No
	Dimensions	5 x 4 x 1.5mm
	Typical Input Voltage Noise Density	32nV/√Hz
	Width	4mm
	Height	1.5mm
	Length	5mm

	Select all
	Brand onsemi
	Mounting Type Surface Mount
	Package Type SOIC
	Power Supply Type Dual, Single
	Number of Channels per Chip 2
	Pin Count 8
	Typical Single Supply Voltage 5 → 28 V
	Typical Gain Bandwidth Product 4.5MHz
	Typical Dual Supply Voltage ±12 V, ±15 V, ±18 V, ±3 V, ±5 V, ±9 V
	Typical Slew Rate 13V/µs
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -40 °C
	Typical Voltage Gain 100 dB
	Rail to Rail No
	Dimensions 5 x 4 x 1.5mm
	Typical Input Voltage Noise Density 32nV/√Hz
	Width 4mm
	Height 1.5mm
	Length 5mm
