LM324N Texas Instruments, Operational Amplifier, 1.2 MHz, 14-Pin 30V PDIP
- RS Stock No.:
- 661-0530
- Mfr. Part No.:
- LM324N
- Brand:
- Texas Instruments

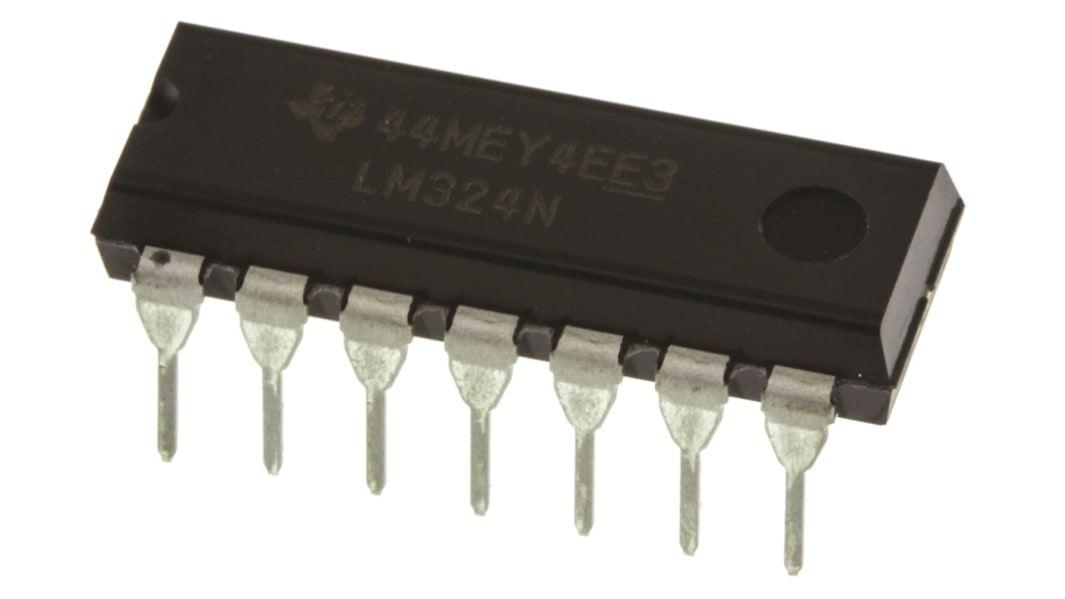

This image is representative of the product range
Subtotal (1 pack of 10 units)*
$11.93
(exc. GST)
$13.12
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- Plus 330 unit(s) shipping from 13 July 2026
- Plus 440 unit(s) shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | $1.193 | $11.93 |
*price indicative
- RS Stock No.:
- 661-0530
- Mfr. Part No.:
- LM324N
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Operational Amplifier | |
| Mount Type | Through Hole | |
| Package Type | PDIP | |
| Number of Channels | 4 | |
| Pin Count | 14 | |
| GBP - Gain Bandwidth Product | 1.2MHz | |
| Maximum Supply Voltage | 30V | |
| Minimum Supply Voltage | 5V | |
| Vos - Input Offset Voltage | 9 mV | |
| Slew Rate | 0.5V/μs | |
| Minimum Operating Temperature | 0°C | |
| Input Bias Current | -500 nA | |
| Maximum Operating Temperature | 70°C | |
| Series | LM324 | |
| Length | 19.3mm | |
| Standards/Approvals | RoHS | |
| Height | 4.57mm | |
| Automotive Standard | No | |
| Output Current | -10mA | |
| Input Offset Current | 150 nA | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Operational Amplifier | ||
Mount Type Through Hole | ||
Package Type PDIP | ||
Number of Channels 4 | ||
Pin Count 14 | ||
GBP - Gain Bandwidth Product 1.2MHz | ||
Maximum Supply Voltage 30V | ||
Minimum Supply Voltage 5V | ||
Vos - Input Offset Voltage 9 mV | ||
Slew Rate 0.5V/μs | ||
Minimum Operating Temperature 0°C | ||
Input Bias Current -500 nA | ||
Maximum Operating Temperature 70°C | ||
Series LM324 | ||
Length 19.3mm | ||
Standards/Approvals RoHS | ||
Height 4.57mm | ||
Automotive Standard No | ||
Output Current -10mA | ||
Input Offset Current 150 nA | ||
General Purpose Op Amps, LM Series
A range of general purpose operational amplifiers from Texas Instruments suitable for a multitude of uses. These devices offer cost-effective performance in non-specialised applications and are available in single, dual and quad configurations. The range includes a large variety of both through hole and SMT packages. Many of the devices in the LM family of op-amps offer low power consumption and are able to operate with single supplies with input common mode voltages that includes ground.
