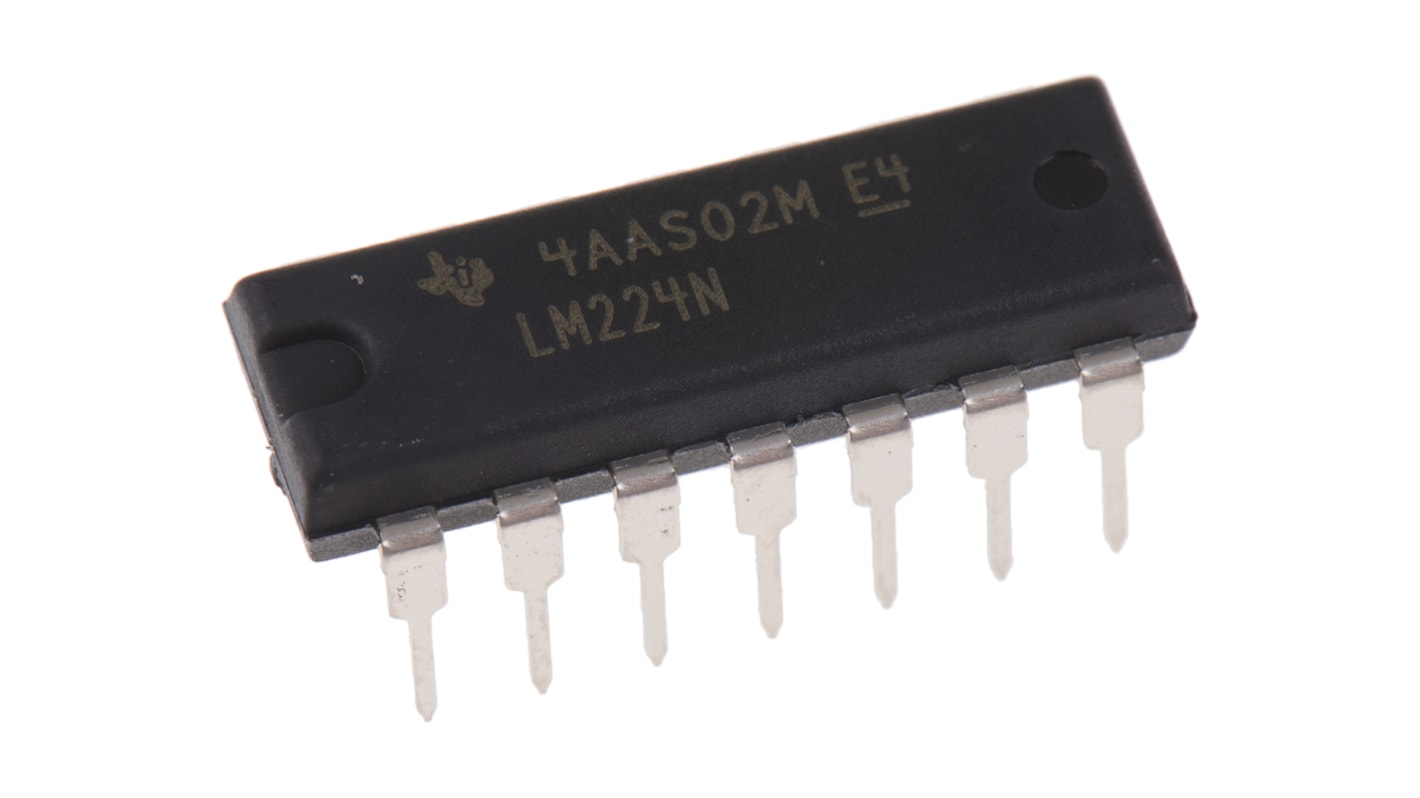

LM224N Texas Instruments, Precision, Op Amp, 1.2MHz, 5 → 28 V, 14-Pin PDIP

RS Stock No.:: 517-1804
Mfr. Part No.:: LM224N
Brand:: Texas Instruments

LM224N Texas Instruments, Precision, Op Amp, 1.2MHz, 5 → 28 V, 14-Pin PDIP

This image is representative of the product range

860 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 20)

$0.784

(exc. GST)

$0.862

(inc. GST)

Units	Per unit	Per Pack*
20 +	$0.784	$15.68
*price indicative

RS Stock No.:: 517-1804
Mfr. Part No.:: LM224N
Brand:: Texas Instruments

Technical data sheets

ESD Control Selection Guide V1

Legislation and Compliance

Product Details

General Purpose Op Amps, LM Series

A range of general purpose operational amplifiers from Texas Instruments suitable for a multitude of uses. These devices offer cost-effective performance in non-specialised applications and are available in single, dual and quad configurations. The range includes a large variety of both through hole and SMT packages. Many of the devices in the LM family of op-amps offer low power consumption and are able to operate with single supplies with input common mode voltages that includes ground.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Amplifier Type	Precision
Mounting Type	Through Hole
Package Type	PDIP
Power Supply Type	Dual, Single
Number of Channels per Chip	4
Pin Count	14
Typical Single Supply Voltage	5 → 28 V
Typical Gain Bandwidth Product	1.2MHz
Typical Dual Supply Voltage	±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Typical Slew Rate	0.5V/µs
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-25 °C
Typical Voltage Gain	100 dB
Rail to Rail	No
Width	6.35mm
Typical Input Voltage Noise Density	35nV/√Hz
Length	19.3mm
Height	4.57mm
Dimensions	19.3 x 6.35 x 4.57mm
