Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	StarTech.com
	Bus Type	PCIe
	Product Type	Network Card
	Network Speed	1000Mbps
	Interface Type	RJ45
	Number of Ports	2
	Maximum Data Transfer Rate	2000Mbps
	Wake-on-LAN WoL	Yes
	Standards/Approvals	CE, IEEE 802.3, PCI, IEEE 802.3u, IEEE 802.3ab, RoHS, FCC

	Select all
	Brand StarTech.com
	Bus Type PCIe
	Product Type Network Card
	Network Speed 1000Mbps
	Interface Type RJ45
	Number of Ports 2
	Maximum Data Transfer Rate 2000Mbps
	Wake-on-LAN WoL Yes
	Standards/Approvals CE, IEEE 802.3, PCI, IEEE 802.3u, IEEE 802.3ab, RoHS, FCC

ST2000SPEXI Datasheet

StarTech Network Card, 2000Mbps Maximum Data Transfer Rate, 2 Ports - ST2000SPEXI

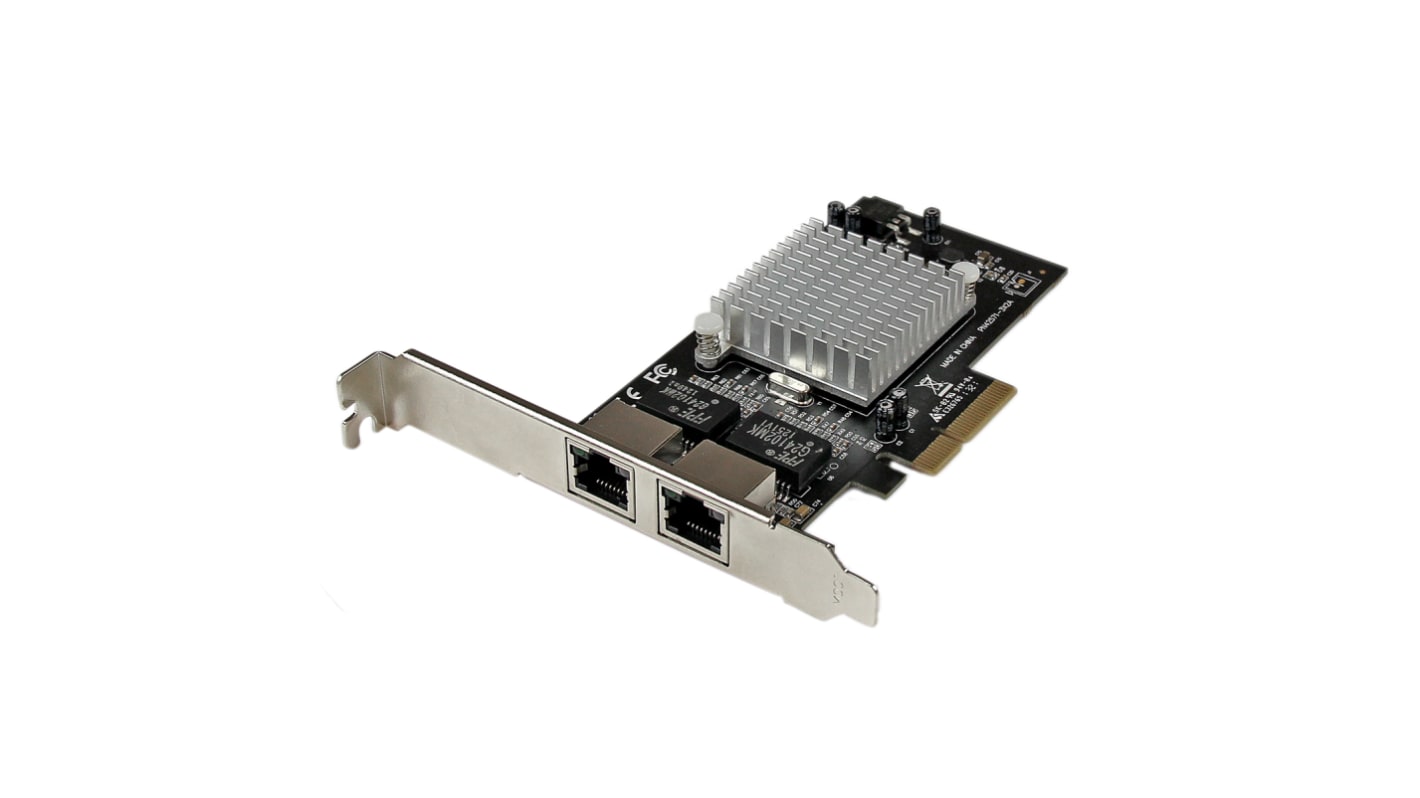

This dual-port PCI Express network card adds two gigabit RJ45 interfaces to a desktop system via a PCIe x4 (or higher) slot. Designed for server and workstation environments, it provides 10/100/1000Mbps auto-negotiation and supports Advanced offload and VLAN functionality to assist with bandwidth management and virtualised deployments.

Features and Benefits:

• 2000Mbps full-duplex throughput increases aggregate bandwidth
• Intel I350 chipset enables Advanced driver and teaming support
• Jumbo frame support up to 9K bytes improves large-packet efficiency
• Wake-on-LAN support allows remote power-up management
• PCIe x4 Interface supplies low-latency host connectivity

Applications

• Suitable for VM hosts requiring multiple dedicated NICs
• Used for redundant network paths in server installations
• Ideal for dual-homed gateway or proxy configurations
• Can be used in small form-factor PCs with LP bracket

Which Interface is required for installation?

It fits into an available PCI Express x4 or higher slot and includes a low-profile bracket for Compact systems.

What link speeds will each port negotiate?

Each RJ45 port auto-negotiates at 10/100/1000Mbps with full-duplex support enabled.

How does the card aid packet processing performance?

It supports checksum offload, transmit segmentation offload and large send offload to reduce host CPU load.

Which indicators provide connection status?

Two link/activity LEDs and two 10/100/1000Mbps indicators display per-port status.

Which standards and certifications does it meet?

It conforms to IEEE 802.3/802.3u/802.3ab and carries CE and RoHS approvals, and meets FCC requirements.

StarTech.com 2 Port PCIe RJ45 Network Card, 1000Mbps
