Diodes Inc P-Channel MOSFET, 10.4 A, 60 V, 3-Pin DPAK ZXMP6A18KTC

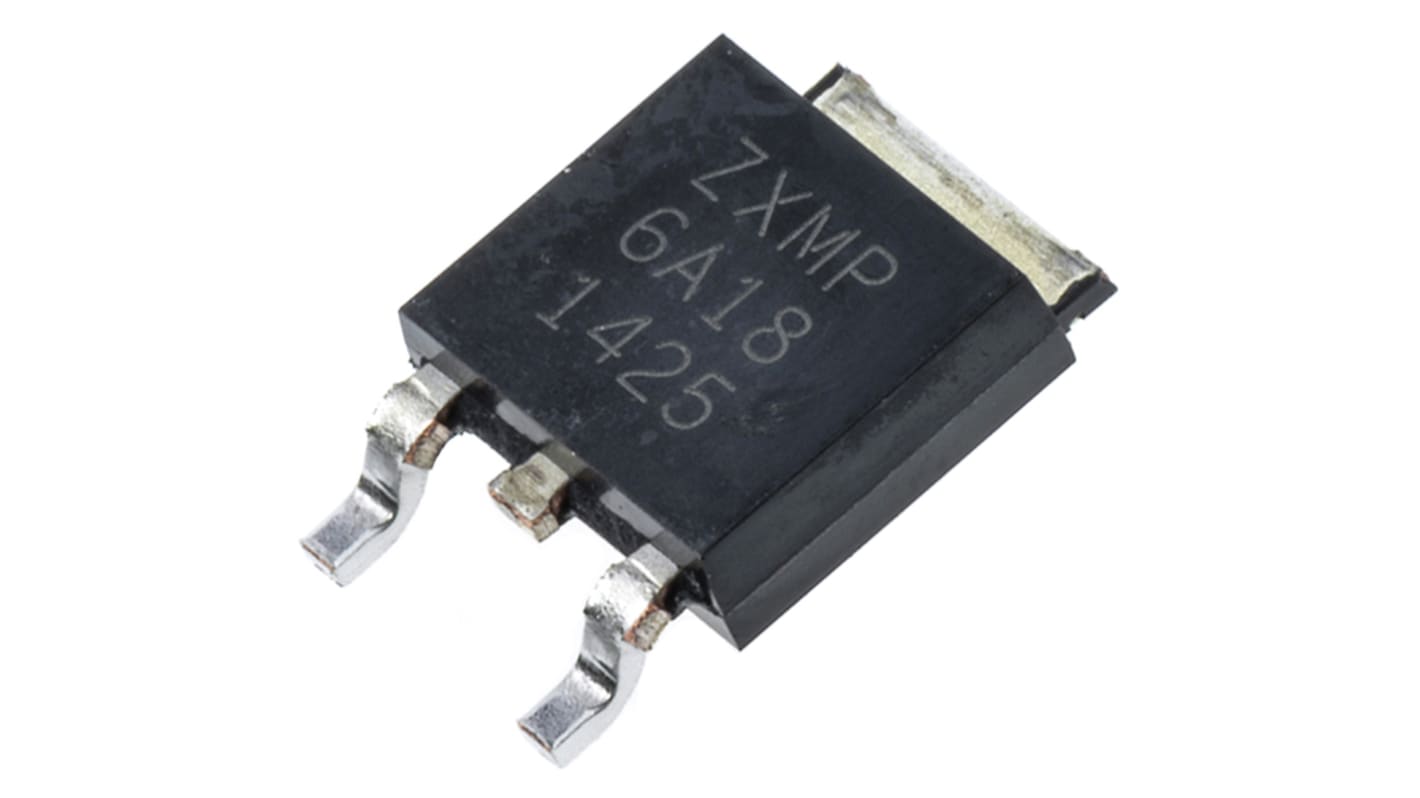

This image is representative of the product range

Bulk discount available

Subtotal (1 reel of 2500 units)**

$2,940.00

(exc. GST)

$3,235.00

(inc. GST)

On back order for despatch 24/07/2025, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

**price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Channel Type	P
	Maximum Continuous Drain Current	10.4 A
	Maximum Drain Source Voltage	60 V
	Package Type	DPAK (TO-252)
	Mounting Type	Surface Mount
	Pin Count	3
	Maximum Drain Source Resistance	80 mΩ
	Channel Mode	Enhancement
	Minimum Gate Threshold Voltage	1V
	Maximum Power Dissipation	10.1 W
	Transistor Configuration	Single
	Maximum Gate Source Voltage	-20 V, +20 V
	Number of Elements per Chip	1
	Width	7.67mm
	Length	6.73mm
	Typical Gate Charge @ Vgs	23 nC @ 5 V
	Maximum Operating Temperature	+150 °C
	Transistor Material	Si
	Height	2.39mm
	Minimum Operating Temperature	-55 °C

	Select all
	Brand DiodesZetex
	Channel Type P
	Maximum Continuous Drain Current 10.4 A
	Maximum Drain Source Voltage 60 V
	Package Type DPAK (TO-252)
	Mounting Type Surface Mount
	Pin Count 3
	Maximum Drain Source Resistance 80 mΩ
	Channel Mode Enhancement
	Minimum Gate Threshold Voltage 1V
	Maximum Power Dissipation 10.1 W
	Transistor Configuration Single
	Maximum Gate Source Voltage -20 V, +20 V
	Number of Elements per Chip 1
	Width 7.67mm
	Length 6.73mm
	Typical Gate Charge @ Vgs 23 nC @ 5 V
	Maximum Operating Temperature +150 °C
	Transistor Material Si
	Height 2.39mm
	Minimum Operating Temperature -55 °C
