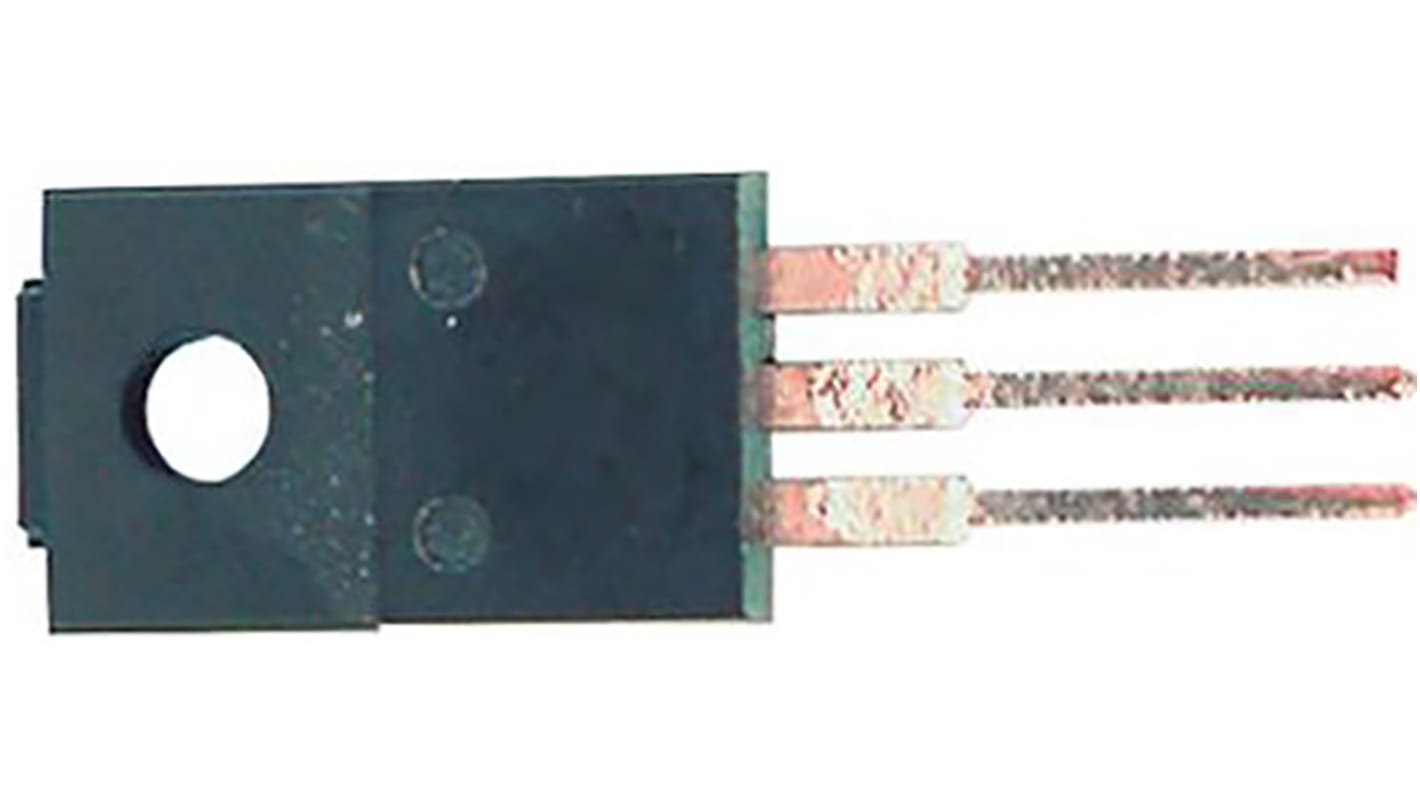

N-Channel MOSFET, 6.5 A, 600 V, 3-Pin TO-220FP STMicroelectronics STF9NM60N

RS Stock No.:: 761-2868
Mfr. Part No.:: STF9NM60N
Brand:: STMicroelectronics

N-Channel MOSFET, 6.5 A, 600 V, 3-Pin TO-220FP STMicroelectronics STF9NM60N

Bulk discount available

Subtotal (1 pack of 5 units)**

$22.84

(exc. GST)

$25.13

(inc. GST)

2000 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit	Per Pack**
5 - 10	$4.568	$22.84
15 - 20	$4.454	$22.27
25 +	$4.384	$21.92

**price indicative

RS Stock No.:: 761-2868
Mfr. Part No.:: STF9NM60N
Brand:: STMicroelectronics

N-channel 600 V, 0.63 Ohm, 6.5 A DPAK MDmesh(TM) II Power MOSFET
ESD Control Selection Guide V1

Attribute	Value
Channel Type	N
Maximum Continuous Drain Current	6.5 A
Maximum Drain Source Voltage	600 V
Series	MDmesh
Package Type	TO-220FP
Mounting Type	Through Hole
Pin Count	3
Maximum Drain Source Resistance	745 mΩ
Channel Mode	Enhancement
Maximum Gate Threshold Voltage	4V
Minimum Gate Threshold Voltage	2V
Maximum Power Dissipation	25 W
Transistor Configuration	Single
Maximum Gate Source Voltage	-25 V, +25 V
Width	4.6mm
Length	10.4mm
Maximum Operating Temperature	+150 °C
Typical Gate Charge @ Vgs	17.4 nC @ 10 V
Transistor Material	Si
Number of Elements per Chip	1
Minimum Operating Temperature	-55 °C
Height	16.4mm

N-Channel MOSFET, 6.5 A, 600 V, 3-Pin TO-220FP STMicroelectronics STF9NM60N

FREE delivery for orders over $60.00 ex GST

N-Channel MDmesh™, 600V/650V, STMicroelectronics

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
