Infineon Dual OptiMOS 2 Type N-Channel Power Transistor, 20 A, 55 V Enhancement, 8-Pin TDSON
- RS Stock No.:
- 223-8519
- Mfr. Part No.:
- IPG20N06S2L65AATMA1
- Brand:
- Infineon

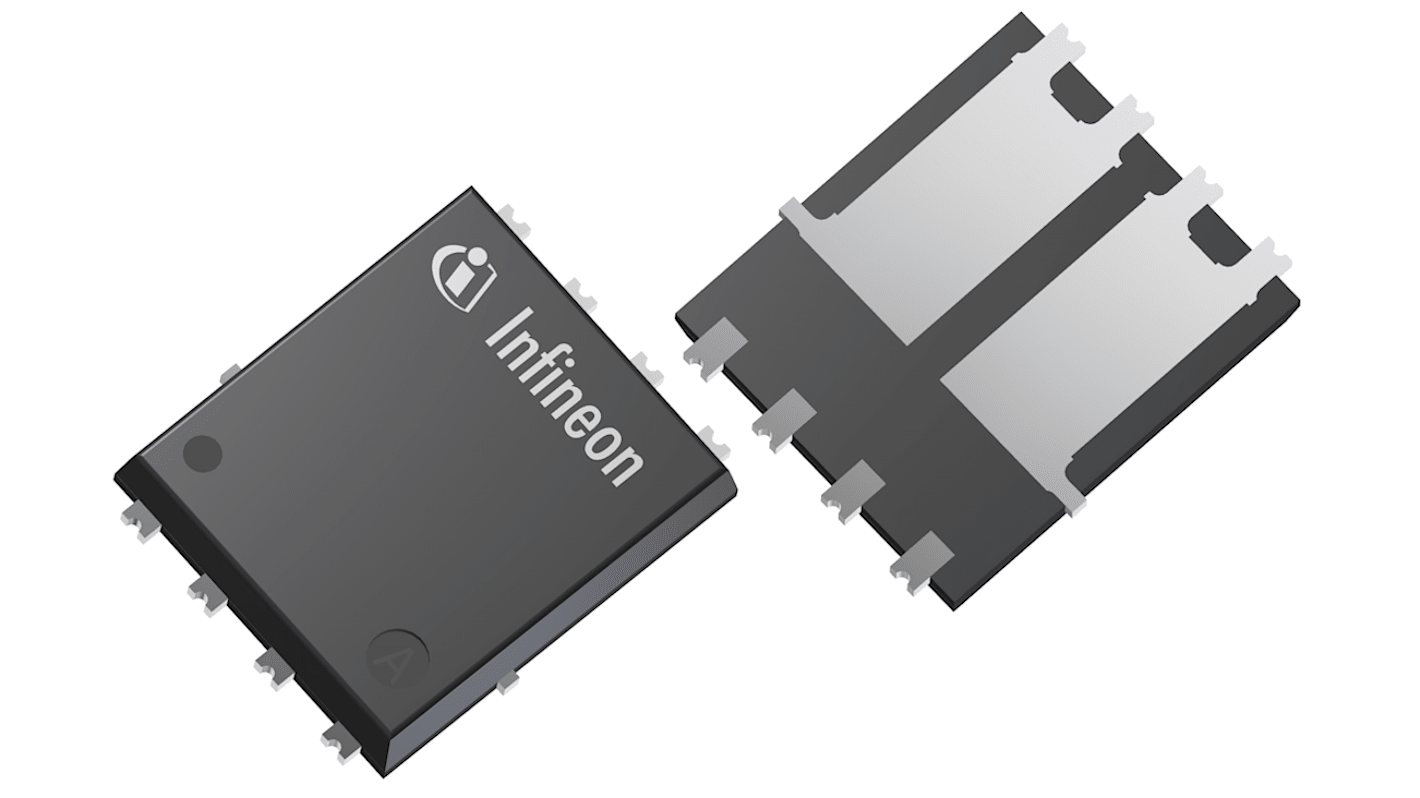

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 5000 units)*
$3,525.00
(exc. GST)
$3,880.00
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 15,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 - 20000 | $0.705 | $3,525.00 |
| 25000 + | $0.634 | $3,170.00 |
*price indicative
- RS Stock No.:
- 223-8519
- Mfr. Part No.:
- IPG20N06S2L65AATMA1
- Brand:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | Power Transistor | |
| Maximum Continuous Drain Current Id | 20A | |
| Maximum Drain Source Voltage Vds | 55V | |
| Series | OptiMOS | |
| Package Type | TDSON | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 65mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1V | |
| Maximum Power Dissipation Pd | 43W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 9.4nC | |
| Maximum Operating Temperature | 175°C | |
| Transistor Configuration | Dual | |
| Standards/Approvals | RoHS | |
| Length | 5.15mm | |
| Width | 5.9 mm | |
| Height | 1mm | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type Power Transistor | ||
Maximum Continuous Drain Current Id 20A | ||
Maximum Drain Source Voltage Vds 55V | ||
Series OptiMOS | ||
Package Type TDSON | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 65mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1V | ||
Maximum Power Dissipation Pd 43W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 9.4nC | ||
Maximum Operating Temperature 175°C | ||
Transistor Configuration Dual | ||
Standards/Approvals RoHS | ||
Length 5.15mm | ||
Width 5.9 mm | ||
Height 1mm | ||
Number of Elements per Chip 2 | ||
Automotive Standard AEC-Q101 | ||
The Infineon OptiMOS series dual N-channel MOSFET has drain to source voltage of 55 V. It has benefits of larger source lead frame connection for wire bonding and bond wire is 200um for up to 20A current.
Automotive AEC Q101 qualified
MSL1 up to 260°C peak reflow
175°C operating temperature
Green package
Ultra low Rds
100% Avalanche tested
