Infineon OptiMOS Type N-Channel MOSFET & Diode, 137 A, 60 V Enhancement, 8-Pin TDSON BSC028N06NSTATMA1
- RS Stock No.:
- 220-7352
- Mfr. Part No.:
- BSC028N06NSTATMA1
- Brand:
- Infineon

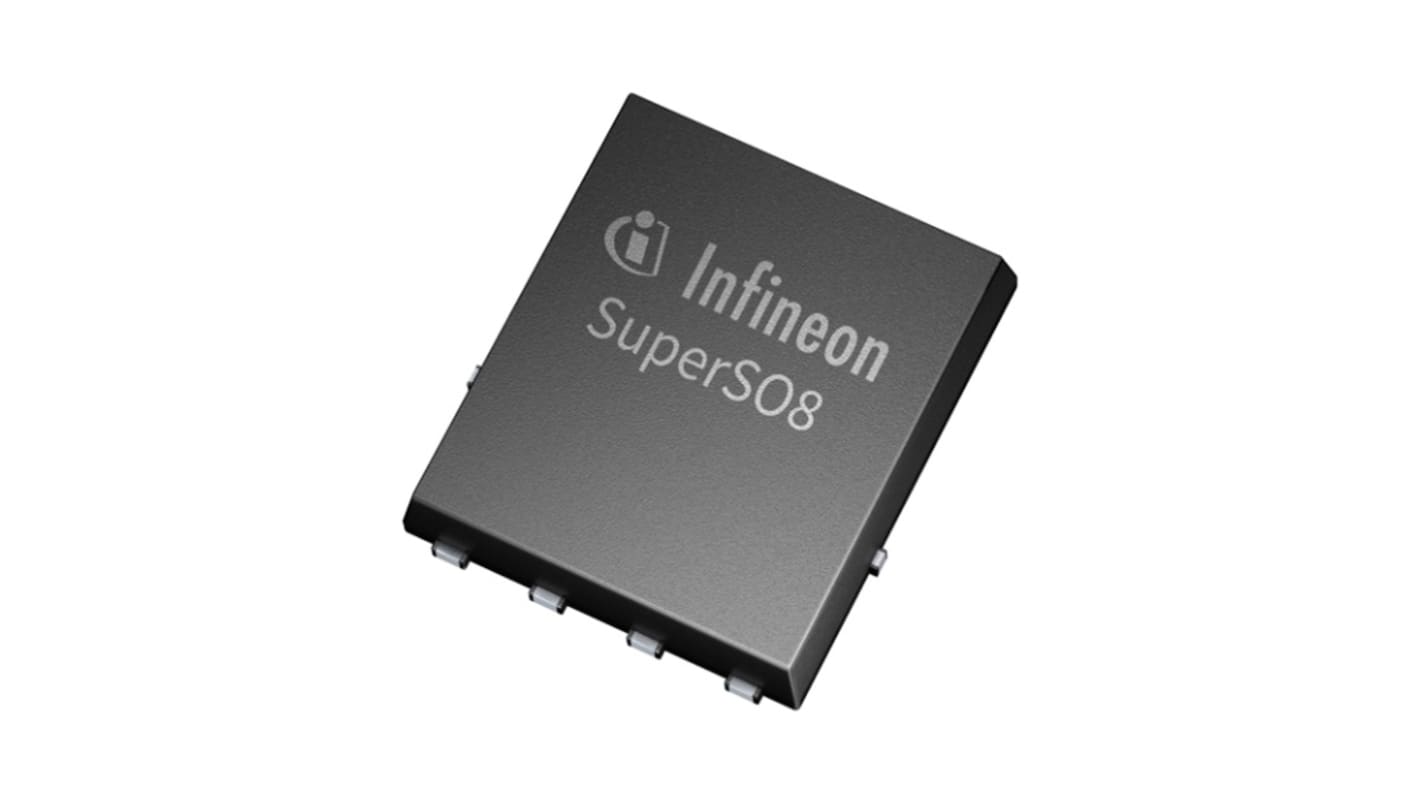

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
$18.13
(exc. GST)
$19.945
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 1,925 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 1245 | $3.626 | $18.13 |
| 1250 - 2495 | $3.534 | $17.67 |
| 2500 + | $3.48 | $17.40 |
*price indicative
- RS Stock No.:
- 220-7352
- Mfr. Part No.:
- BSC028N06NSTATMA1
- Brand:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET & Diode | |
| Maximum Continuous Drain Current Id | 137A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Series | OptiMOS | |
| Package Type | TDSON | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 2.8mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 83W | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.2V | |
| Typical Gate Charge Qg @ Vgs | 37nC | |
| Maximum Operating Temperature | 150°C | |
| Length | 5.35mm | |
| Standards/Approvals | No | |
| Width | 6.1 mm | |
| Height | 1.2mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET & Diode | ||
Maximum Continuous Drain Current Id 137A | ||
Maximum Drain Source Voltage Vds 60V | ||
Series OptiMOS | ||
Package Type TDSON | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 2.8mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 83W | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.2V | ||
Typical Gate Charge Qg @ Vgs 37nC | ||
Maximum Operating Temperature 150°C | ||
Length 5.35mm | ||
Standards/Approvals No | ||
Width 6.1 mm | ||
Height 1.2mm | ||
Automotive Standard No | ||
The Infineon OptiMOS 5 power MOSFET in SuperSO8 package offers the latest technology together with temperature improvements in the package. This new combination enables higher power density as well as improved robustness. Compared to lower rated devices, the 175°C TJ_MAX feature offers either more power at a higher operating junction temperature or longer lifetime at the same operating junction temperature. Furthermore, 20% improvement in the safe operating area (SOA) is achieved. This new package feature is the perfect fit for applications such as telecom, motor drives and server.
Low RDS(on)
Optimized for synchronous rectification
Enhanced 175°C capability in SuperSO8
Longer life time
Highest efficiency and power density
Highest system reliability
Thermal robustness
