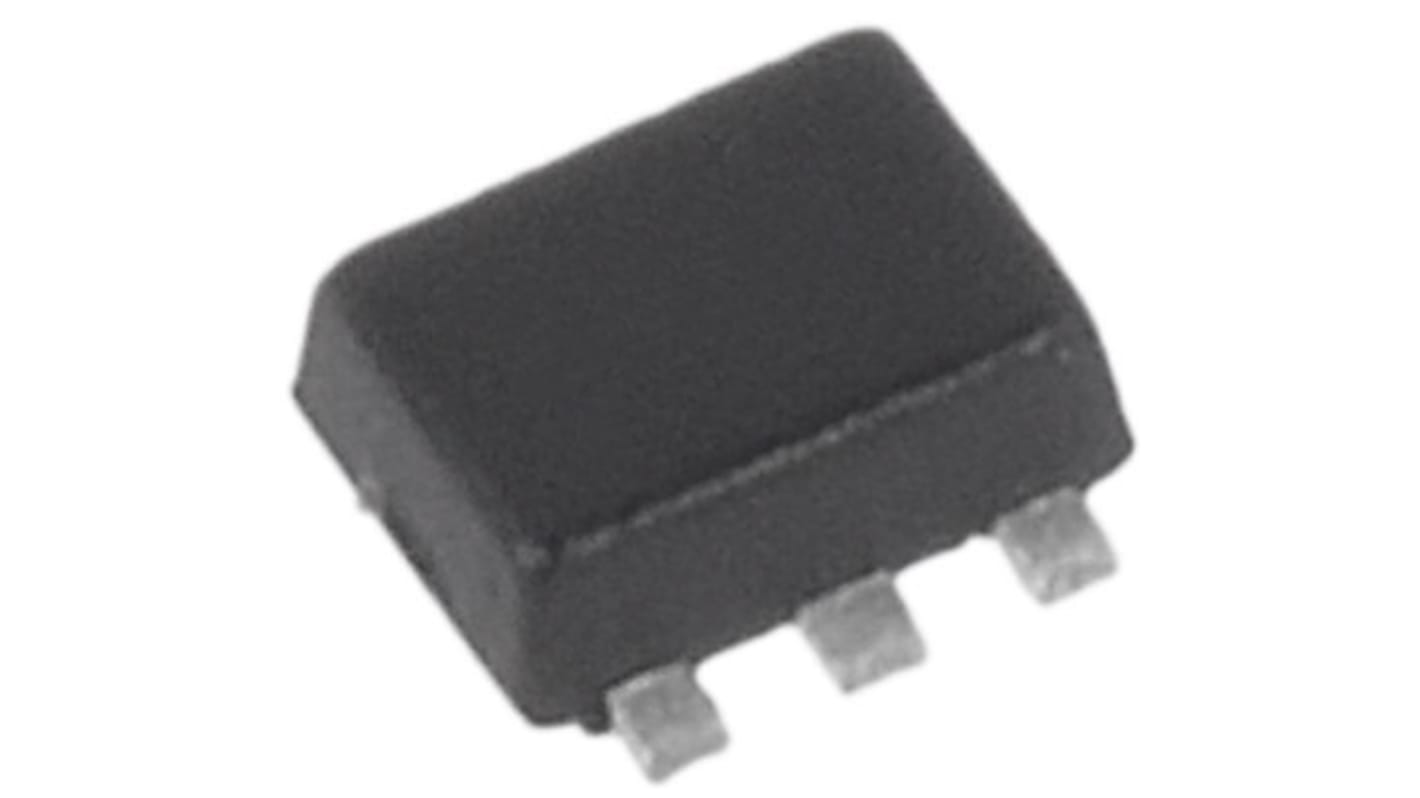

    onsemi Dual N-Channel MOSFET, 540 mA, 20 V, 6-Pin SOT-563 NTZD3154NT1G

    View all MOSFETs
    Bulk discount available

    Subtotal (1 reel of 4000 units)**

    $504.00

    (exc. GST)

    $556.00

    (inc. GST)

    Add to Basket
    Select or type quantity
    On back order for despatch 03/11/2025, delivery within 10 working days from despatch date.*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Reel**
    4000 - 4000$0.126$504.00
    8000 - 12000$0.123$492.00
    16000 +$0.121$484.00

    **price indicative

    RS Stock No.:
    184-1071
    Mfr. Part No.:
    NTZD3154NT1G
    Brand:
    onsemi
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    onsemi

    Channel Type

    N

    Maximum Continuous Drain Current

    540 mA

    Maximum Drain Source Voltage

    20 V

    Package Type

    SOT-563

    Mounting Type

    Surface Mount

    Pin Count

    6

    Maximum Drain Source Resistance

    900 mΩ

    Channel Mode

    Enhancement

    Maximum Gate Threshold Voltage

    1V

    Minimum Gate Threshold Voltage

    0.45V

    Maximum Power Dissipation

    250 mW

    Maximum Gate Source Voltage

    ±7 V

    Length

    1.7mm

    Width

    1.3mm

    Number of Elements per Chip

    2

    Maximum Operating Temperature

    +150 °C

    Typical Gate Charge @ Vgs

    1.5 nC @ 4.5 V

    Minimum Operating Temperature

    -55 °C

    Height

    0.6mm

    Forward Diode Voltage

    1.2V
