    Infineon HEXFET N-Channel MOSFET, 36 A, 100 V, 3-Pin D2PAK IRL540NSTRLPBF

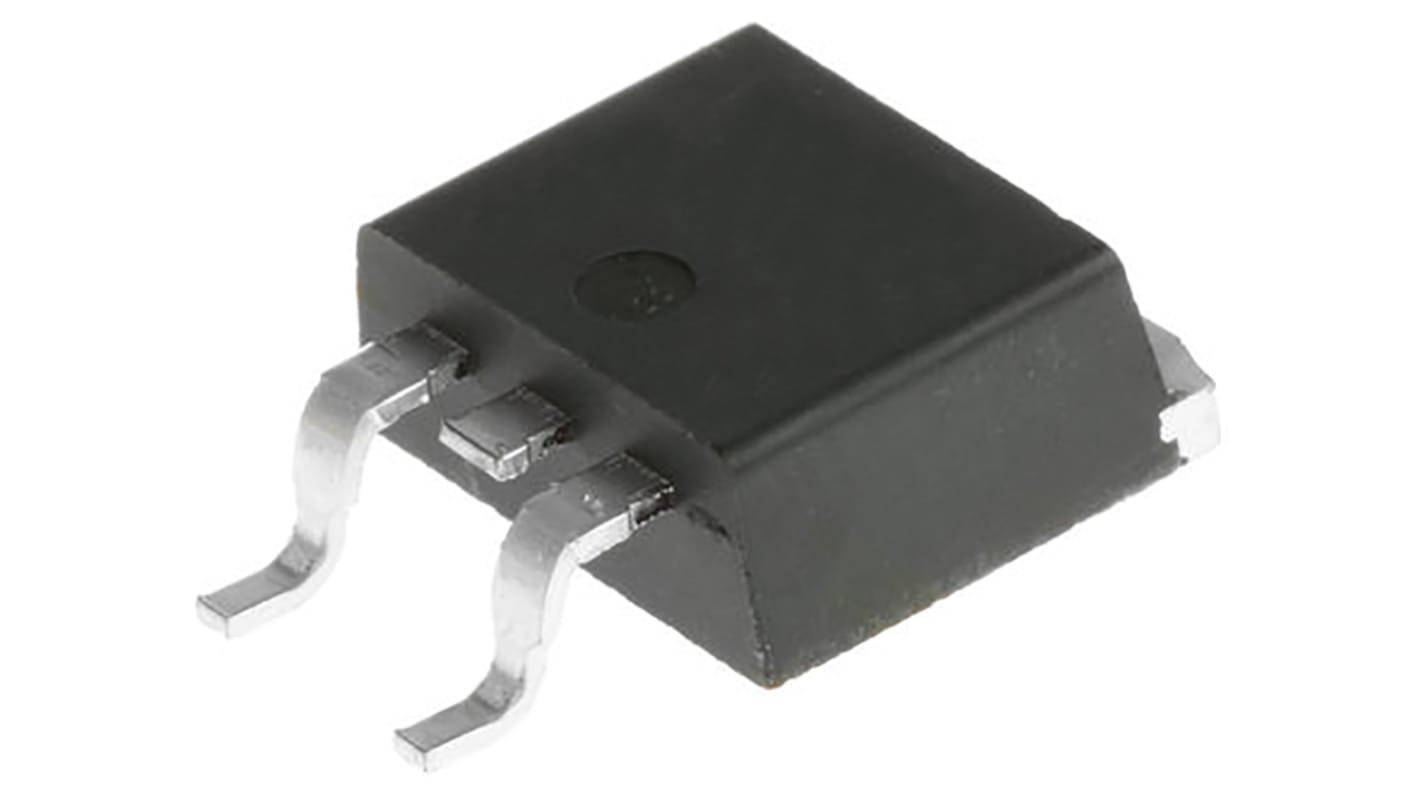

    This image is representative of the product range

    View all MOSFETs
    Bulk discount available

    Subtotal (1 reel of 800 units)**

    $964.00

    (exc. GST)

    $1,060.00

    (inc. GST)

    Add to Basket
    Select or type quantity
    On back order for despatch 05/10/2025, delivery within 10 working days from despatch date.*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Reel**
    800 - 3200$1.205$964.00
    4000 +$1.085$868.00

    **price indicative

    RS Stock No.:
    145-9569
    Mfr. Part No.:
    IRL540NSTRLPBF
    Brand:
    Infineon
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Infineon

    Channel Type

    N

    Maximum Continuous Drain Current

    36 A

    Maximum Drain Source Voltage

    100 V

    Series

    HEXFET

    Package Type

    D2PAK (TO-263)

    Mounting Type

    Surface Mount

    Pin Count

    3

    Maximum Drain Source Resistance

    63 mΩ

    Channel Mode

    Enhancement

    Maximum Gate Threshold Voltage

    2V

    Minimum Gate Threshold Voltage

    1V

    Maximum Power Dissipation

    140 W

    Transistor Configuration

    Single

    Maximum Gate Source Voltage

    -16 V, +16 V

    Number of Elements per Chip

    1

    Length

    10.67mm

    Width

    11.3mm

    Maximum Operating Temperature

    +175 °C

    Transistor Material

    Si

    Typical Gate Charge @ Vgs

    74 nC @ 5 V

    Height

    4.83mm

    Minimum Operating Temperature

    -55 °C

    Forward Diode Voltage

    1.3V
