- RS Stock No.:
- 135-3063
- Mfr. Part No.:
- 1808GC102MAT2A
- Brand:
- KYOCERA AVX
690 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Bag of 10)
$0.882
(exc. GST)
$0.97
(inc. GST)
Units | Per unit | Per Bag* |
---|---|---|
10 + | $0.882 | $8.82 |
*price indicative
- RS Stock No.:
- 135-3063
- Mfr. Part No.:
- 1808GC102MAT2A
- Brand:
- KYOCERA AVX
Technical data sheets
Legislation and Compliance
Product Details

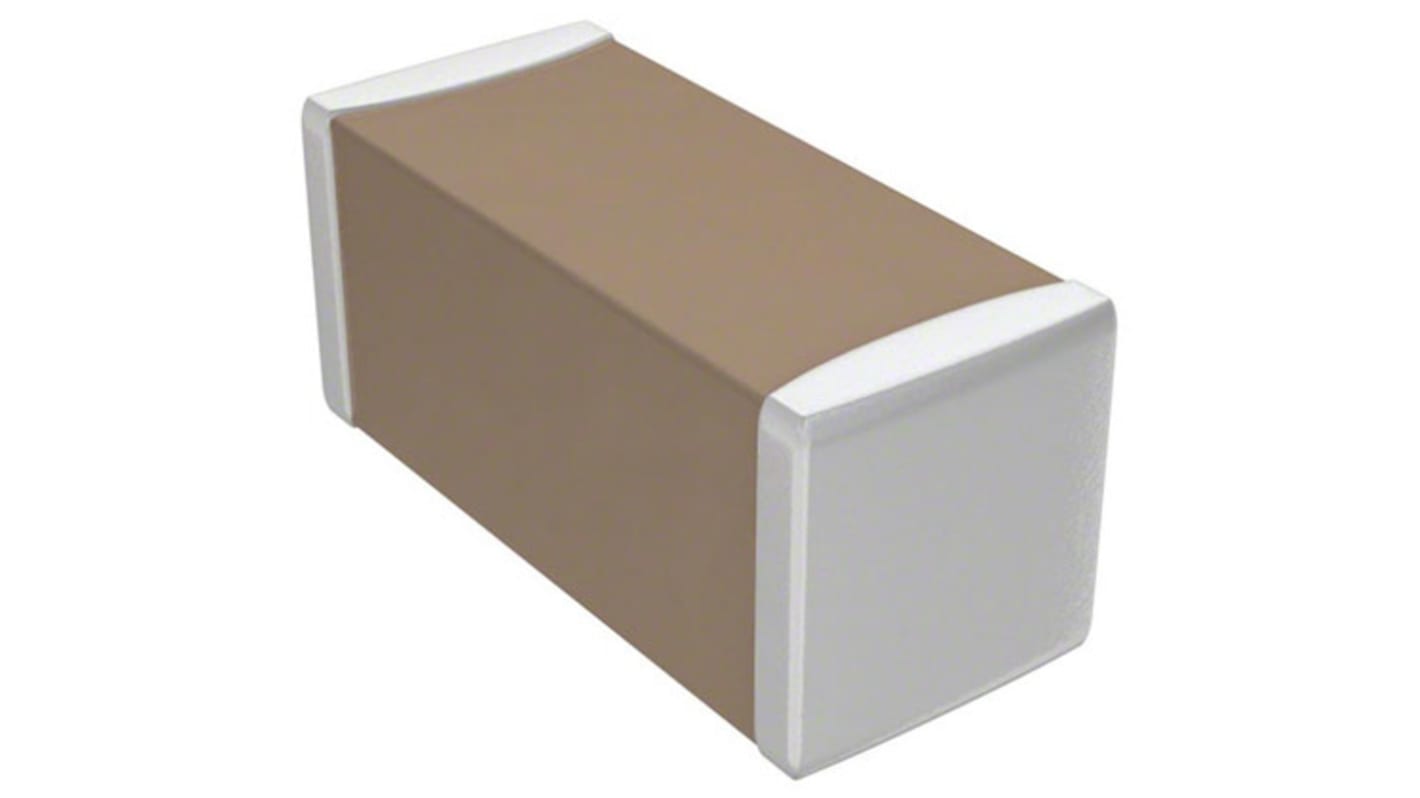

AVX 1808 Series
AVX C0G dielectric ceramic capacitors are the most popular formulation of the temperature-compensating, EIA Class I ceramic materials. C0G ceramics offer one of the most stable capacitor dielectrics available. Capacitance change with temperature is 0 ±30ppm/°C which is less than ±0.3% from -55°C to +125°C. Capacitance drift or hysteresis for C0G ceramics is negligible at less than ±0.05%.
Features
High Value , Low Leakage
Small size
low ESRs at high frequencies
Small size
low ESRs at high frequencies
Applications
Snubbers in high frequency power
Convertors
Resonators in SMPS
High-voltage coupling / DC blocking
Convertors
Resonators in SMPS
High-voltage coupling / DC blocking
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
1808 Range
Specifications
Attribute | Value |
---|---|
Capacitance | 1nF |
Voltage | 2kV dc |
Package/Case | 1808 (4520M) |
Mounting Type | Surface Mount |
Dielectric | X7R |
Tolerance | ±20% |
Dimensions | 4.6 x 2 x 2.2mm |
Length | 4.6mm |
Height | 2.2mm |
Series | FLEXITERM |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +125°C |
Terminal Type | Surface Mount |
