Microchip PIC16F1823-I/P, 8bit PIC Microcontroller, PIC16F, 32MHz, 256 B, 2K x 14 words Flash, 14-Pin PDIP

RS Stock No.:: 703-7822
Mfr. Part No.:: PIC16F1823-I/P
Brand:: Microchip

Microchip PIC16F1823-I/P, 8bit PIC Microcontroller, PIC16F, 32MHz, 256 B, 2K x 14 words Flash, 14-Pin PDIP

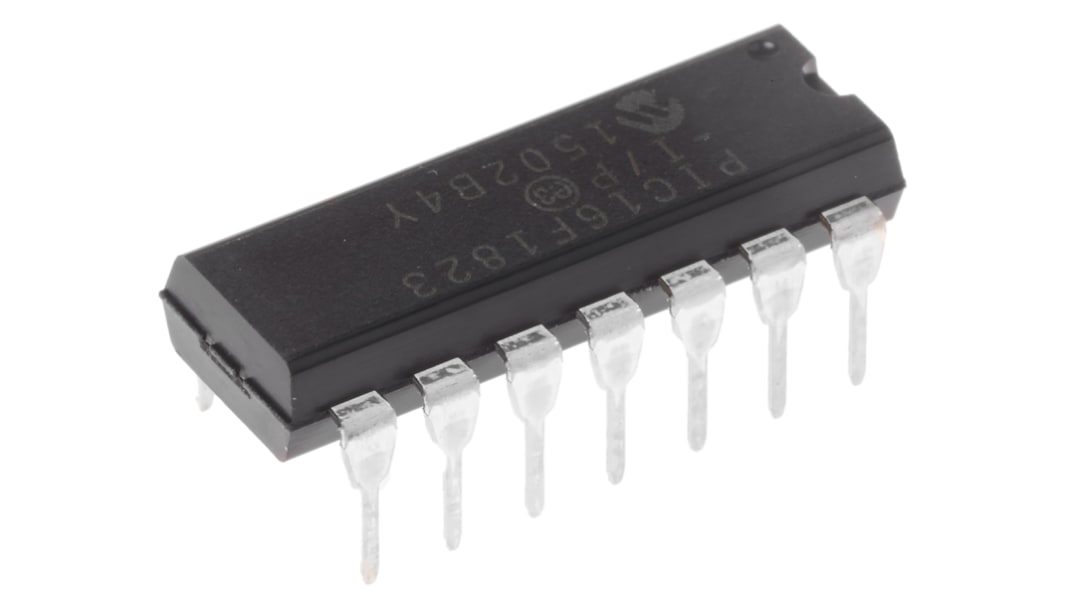

This image is representative of the product range

22 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$2.59

(exc. GST)

$2.85

(inc. GST)

Units	Per unit
1 - 7	$2.59
8 - 14	$2.57
15 +	$2.53

RS Stock No.:: 703-7822
Mfr. Part No.:: PIC16F1823-I/P
Brand:: Microchip

Technical data sheets

Legislation and Compliance

Product Details

PIC16F1823 8-Bit Flash Microcontrollers

The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F1823 family of microcontrollers is based upon Microchip’s Enhanced Mid-Range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and 256 bytes EEPROM. On board is a configurable oscillator factory calibrated to ±1% accuracy.

Microcontroller Features

32 MHz Max. CPU Speed
49 Instructions
16 Level Hardware Stack
32 MHz Internal Oscillator – Selectable Frequency Range 32 MHz to 31 kHz
12 I/O Pins
XLP Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Enhanced Low-Voltage Programming (LVP)

Peripherals

8 Channel 10-bit Analogue to Digital Converter (ADC)
8 Channel Capacitive Sensing (mTouchTM) Module
Enhanced Capture/Compare/PWM (ECCP) Module
Two Comparators
Voltage Reference Module
Two 8-bit Timers
One 16-bit Timer
Data Signal Modulator Module
SR Latch

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Family Name	PIC16F
Package Type	PDIP
Mounting Type	Through Hole
Pin Count	14
Device Core	PIC
Data Bus Width	8bit
Program Memory Size	256 B, 2K x 14 words
Maximum Frequency	32MHz
RAM Size	128 B
USB Channels	0
Number of PWM Units	1
Number of SPI Channels	1
Number of UART Channels	0
Typical Operating Supply Voltage	1.8 to 5.5 V
Number of CAN Channels	0
Number of I2C Channels	1
Number of USART Channels	1
Height	4.95mm
Number of LIN Channels	0
Minimum Operating Temperature	-40 °C
Number of ADC Units	1
Instruction Set Architecture	RISC
Number of PCI Channels	0
Number of Ethernet Channels	0
Program Memory Type	Flash
Dimensions	0.775 x 0.28 x 0.195in
Pulse Width Modulation	1(ECCP Full Bridge)
Width	0.28in
ADCs	8 x 10 bit
Length	19.69mm
Maximum Operating Temperature	+85 °C
