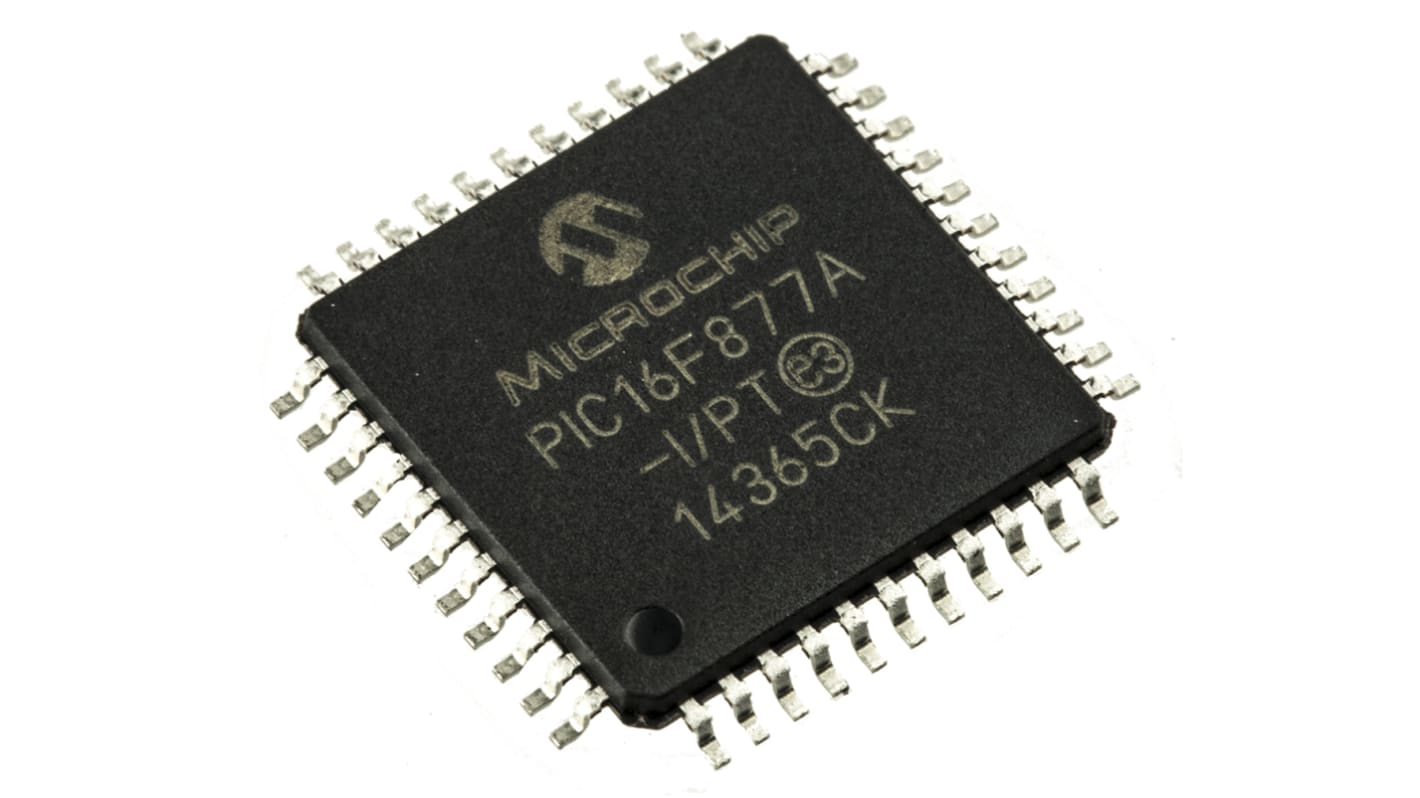

Microchip PIC16F877A-I/PT, 8bit PIC Microcontroller, PIC16F, 20MHz, 14.3 kB, 256 B Flash, 44-Pin TQFP
- RS Stock No.:
- 467-1707
- Mfr. Part No.:
- PIC16F877A-I/PT
- Brand:
- Microchip
1 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$13.34
(exc. GST)
$14.67
(inc. GST)
Units | Per unit |
1 - 39 | $13.34 |
40 - 79 | $13.00 |
80 + | $12.84 |
- RS Stock No.:
- 467-1707
- Mfr. Part No.:
- PIC16F877A-I/PT
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
PIC16F873A/874A/876A/877A 8-Bit Flash Microcontrollers
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Family Name | PIC16F |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 14.3 kB, 256 B |
Maximum Frequency | 20MHz |
RAM Size | 368 B |
USB Channels | 0 |
Number of PWM Units | 2 x 10 bit |
Number of SPI Channels | 1 |
Number of USART Channels | 1 |
Number of I2C Channels | 1 |
Typical Operating Supply Voltage | 4 → 5.5 V |
Number of CAN Channels | 0 |
Number of UART Channels | 0 |
Program Memory Type | Flash |
Dimensions | 10.1 x 10.1 x 1.05mm |
Number of LIN Channels | 0 |
Maximum Operating Temperature | +85 °C |
Instruction Set Architecture | RISC |
Number of PCI Channels | 0 |
Number of Ethernet Channels | 0 |
Number of ADC Units | 1 |
Pulse Width Modulation | 2(10 bit) (CCP) |
Width | 10.1mm |
Length | 10.1mm |
Minimum Operating Temperature | -40 °C |
Height | 1.05mm |
ADCs | 8 x 10 bit |
