Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32F038C6
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	48
	Device Core	ARM Cortex M0
	Data Bus Width	32bit
	Program Memory Size	32kB
	Maximum Clock Frequency	48MHz
	RAM Size	4kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Standards/Approvals	FBI
	Height	1.45mm
	Length	7.2mm
	Maximum Power Dissipation Pd	364mW
	Width	7.2 mm
	Minimum Supply Voltage	1.8V
	Program Memory Type	FLASH
	ADCs	13 x 12 Bit
	Instruction Set Architecture	RISC
	Automotive Standard	No

	Select all
	Brand STMicroelectronics
	Product Type Microcontroller
	Series STM32F038C6
	Package Type LQFP
	Mount Type Surface
	Pin Count 48
	Device Core ARM Cortex M0
	Data Bus Width 32bit
	Program Memory Size 32kB
	Maximum Clock Frequency 48MHz
	RAM Size 4kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Standards/Approvals FBI
	Height 1.45mm
	Length 7.2mm
	Maximum Power Dissipation Pd 364mW
	Width 7.2 mm
	Minimum Supply Voltage 1.8V
	Program Memory Type FLASH
	ADCs 13 x 12 Bit
	Instruction Set Architecture RISC
	Automotive Standard No

COO (Country of Origin):: MY

The STM32F038x6 microcontrollers incorporate the high-performance ARM®Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (32 Kbytes of Flash memory and 4 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (one I2C, one SPI/ I2S and one USART), one 12-bit ADC, five 16-bit timers, one 32-bit timer and an advanced-control PWM timer.

Depending on the device chosen, different sets of peripherals are included.

These features make the STM32F038x6 microcontrollers suitable for a wide range of applications such as application control and user interfaces, hand-held equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms and HVACs.

Units	Per unit	Per Pack*
5 - 60	$4.772	$23.86
65 - 120	$4.652	$23.26
125 +	$4.582	$22.91

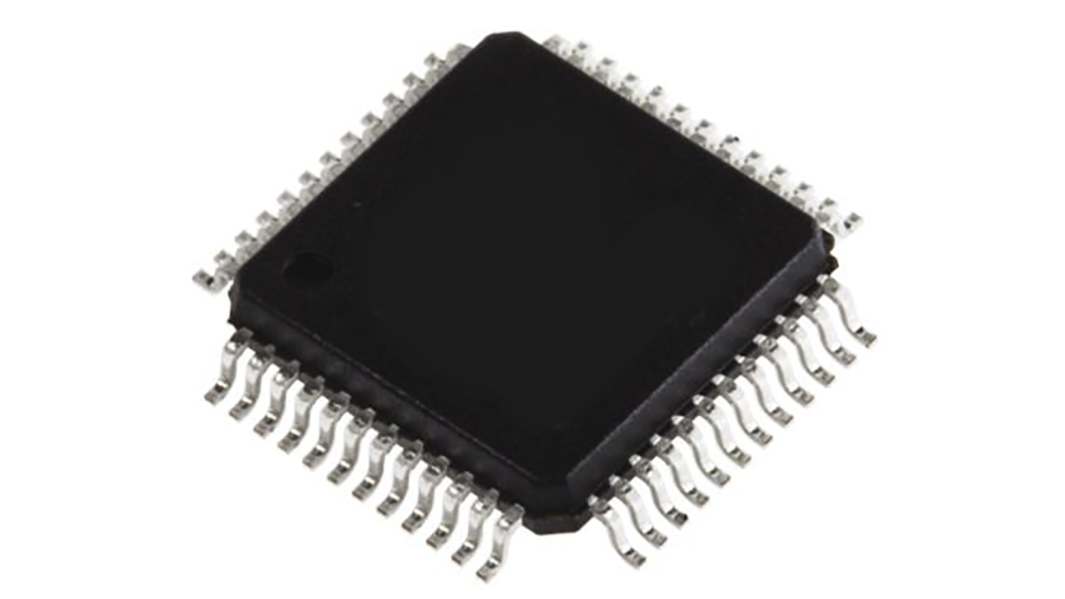

STMicroelectronics STM32F038C6T7, 32 bit ARM Cortex M0, STM32F038C6 Microcontroller, 48 MHz, 32kB FLASH, 48-Pin LQFP
