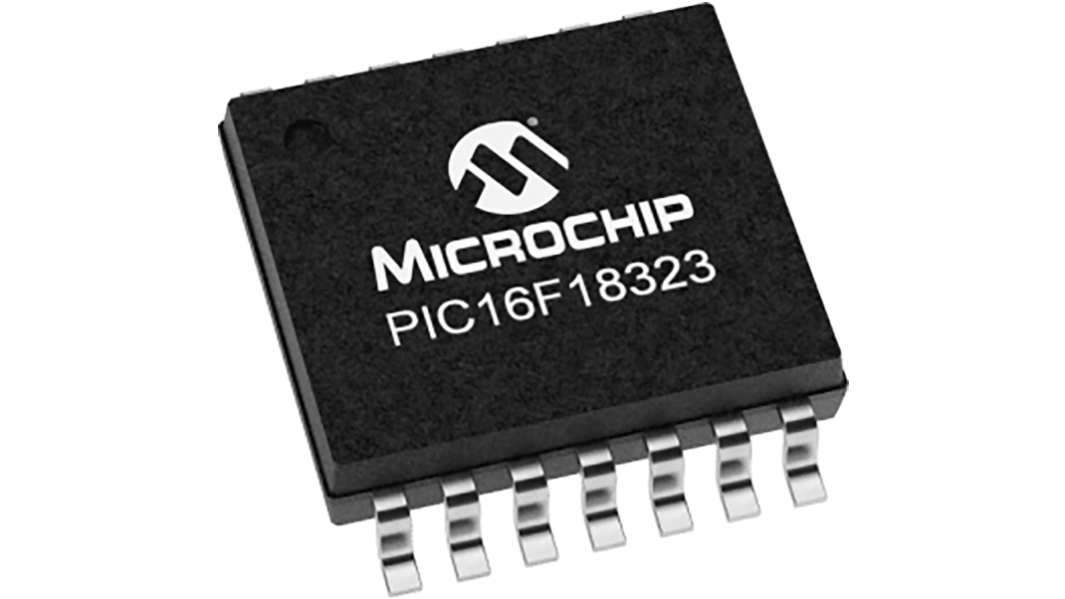

Microchip PIC16LF18323-I/ST, 8bit PIC Microcontroller, PIC16LF, 32MHz, 3.5 kB Flash, 14-Pin TSSOP
- RS Stock No.:
- 177-2618
- Mfr. Part No.:
- PIC16LF18323-I/ST
- Brand:
- Microchip
Available for back order.
Added
Price (ex. GST) Each (In a Pack of 10)
$1.539
(exc. GST)
$1.693
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 10 | $1.539 | $15.39 |
| 20 - 40 | $1.461 | $14.61 |
| 50 + | $1.335 | $13.35 |
| *price indicative | ||
- RS Stock No.:
- 177-2618
- Mfr. Part No.:
- PIC16LF18323-I/ST
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
PIC16F18323 microcontrollers feature Analog, Core Independent Peripherals and communication peripherals, combined with Extreme Low Power (XLP) for wide range of general purpose and low power applications.
Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
Flash Program Memory with self read/write capability
256B EEPROM
IDLE and DOZE low power modes
Peripheral Module Disable (PMD)
Peripheral Pin Select (PPS)
2x 10-bit PWMs
2x Capture, Compare, PWM (CCP)
Complementary Waveform Generator (CWG)
Numerically Controlled Oscillator (NCO)
2x Configurable Logic Controller (CLC)
11 Channel 10-bit ADC with Voltage Reference
5-bit Digital to Analog Converter (DAC)
2x Comparators
2x 8-bit Timers (TMR0/TMR2)
1x 16-bit Timer (TMR1)
Extended Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Low-Power Brown-Out Reset (LPBOR)
Programmable Brown-Out Reset (BOR)
In Circuit Serial Programming (ICSP)
PIC16LF18323 (1.8V – 3.6V)
PIC16F18323 (2.3V – 5.5V)
Flash Program Memory with self read/write capability
256B EEPROM
IDLE and DOZE low power modes
Peripheral Module Disable (PMD)
Peripheral Pin Select (PPS)
2x 10-bit PWMs
2x Capture, Compare, PWM (CCP)
Complementary Waveform Generator (CWG)
Numerically Controlled Oscillator (NCO)
2x Configurable Logic Controller (CLC)
11 Channel 10-bit ADC with Voltage Reference
5-bit Digital to Analog Converter (DAC)
2x Comparators
2x 8-bit Timers (TMR0/TMR2)
1x 16-bit Timer (TMR1)
Extended Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Low-Power Brown-Out Reset (LPBOR)
Programmable Brown-Out Reset (BOR)
In Circuit Serial Programming (ICSP)
PIC16LF18323 (1.8V – 3.6V)
PIC16F18323 (2.3V – 5.5V)
Specifications
Attribute | Value |
|---|---|
| Family Name | PIC16LF |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 14 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 3.5 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 256 B |
| Number of PWM Units | 1 x 10 bit |
| Number of SPI Channels | 1 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Number of USART Channels | 1 |
| Number of UART Channels | 1 |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Dimensions | 5.1 x 4.5 x 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Length | 5.1mm |
| ADCs | 11 x 10 bit |
| Width | 4.5mm |
| Height | 1.05mm |
