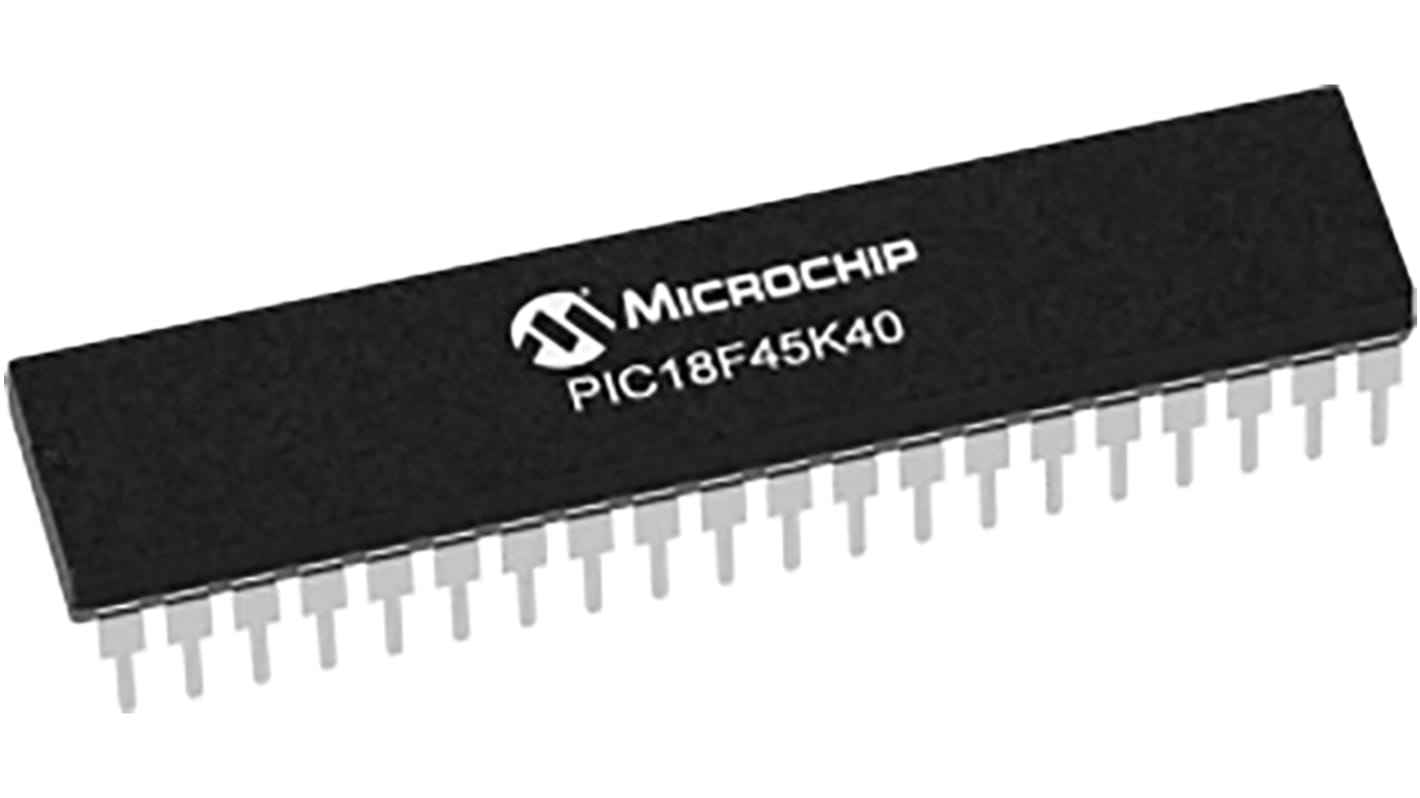

Microchip, 8bit PIC, PIC18F Microcontroller, 64MHz, 32 kB Flash, 40-Pin PDIP
- RS Stock No.:
- 177-2487
- Mfr. Part No.:
- PIC18F45K40-I/P
- Brand:
- Microchip
- RS Stock No.:
- 177-2487
- Mfr. Part No.:
- PIC18F45K40-I/P
- Brand:
- Microchip
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | PIC18F | |
| Package Type | PDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 40 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 32 kB | |
| Maximum Frequency | 64MHz | |
| RAM Size | 2.048 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 x 10 bit | |
| Number of SPI Channels | 2 | |
| Number of I2C Channels | 2 | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 2 | |
| Number of UART Channels | 2 | |
| Typical Operating Supply Voltage | 5.5 (Maximum) V | |
| Number of PCI Channels | 0 | |
| Number of ADC Units | 1 | |
| Number of Ethernet Channels | 0 | |
| Height | 4.83mm | |
| Width | 14.73mm | |
| Dimensions | 2.09 x 0.58 x 0.19in | |
| Pulse Width Modulation | 1 (2 x 10 bit) | |
| Maximum Operating Temperature | +85 °C | |
| Number of LIN Channels | 0 | |
| Instruction Set Architecture | RISC | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash | |
| Length | 53.09mm | |
| ADCs | 35 x 10 bit | |
| Maximum Number of Ethernet Channels | 0 | |
