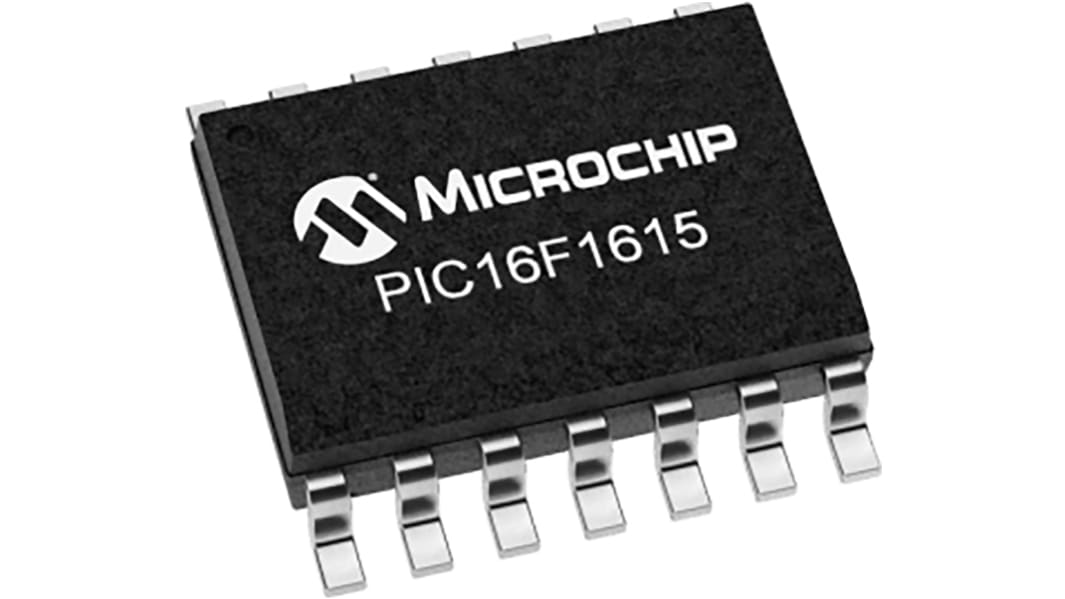

Microchip, 8bit PIC, PIC16F Microcontroller, 32MHz, 14 kB Flash, 14-Pin TSSOP

View all Microcontrollers
Bulk discount available

Subtotal (1 pack of 10 units)*

$24.70

(exc. GST)

$27.20

(inc. GST)

Add to Basket
Select or type quantity
Being discontinued
  • Final 20 unit(s), ready to ship from another location
Units
Per unit
Per Pack*
10 - 20$2.47$24.70
30 +$2.411$24.11

*price indicative

Packaging Options:
RS Stock No.:
177-2418
Mfr. Part No.:
PIC16F1615-I/ST
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

PIC16F

Package Type

TSSOP

Mounting Type

Surface Mount

Pin Count

14

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

14 kB

Maximum Frequency

32MHz

RAM Size

1 kB

USB Channels

0

Number of PWM Units

1 x 16 bit

Number of SPI Channels

1

Number of CAN Channels

0

Number of UART Channels

1

Typical Operating Supply Voltage

5.5 (Maximum) V

Number of USART Channels

1

Number of I2C Channels

1

Maximum Operating Temperature

+85 °C

Number of Ethernet Channels

0

Number of ADC Units

1

Length

8.65mm

Program Memory Type

Flash

ADCs

8 x 10 bit

Number of LIN Channels

0

Pulse Width Modulation

1 (2 x 10 bit)

Maximum Number of Ethernet Channels

0

Width

3.9mm

Instruction Set Architecture

RISC

Height

1.5mm

Number of PCI Channels

0

Dimensions

8.65 x 3.9 x 1.5mm

Minimum Operating Temperature

-40 °C

COO (Country of Origin):
TH
PIC16(L)F161X microcontrollers deliver on-chip features that are unique to the design for embedded control of small motors and general purpose applications in 8 / 14 / 20 pin count packages.

Flash Program Memory with self read/write capability
Enhanced Mid-Range Core, Internal 32MHz oscillator
High Endurance Flash Memory (HEF)
128 B of Non-volatile Data Storage
2 x Analog Comparators
2 x 10-bit PWM
2 x Capture-Compare-PWM (CCP)
8 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference
Complementary Waveform Generator (CWG):
Zero Cross Detection (ZCD)
CRC: 16-bit with DMA
Math Accelerator
Timers:
2 x 24-bit Signal Measurement Timer (SMT)
3 x Hardware Limit Timer (HLT)
Angular Timer
Window Watchdog Timer (WWDT)
High Current Source/Sink: 2 x 100mA I/O
Power-On Reset (POR), Brown-Out Reset (BOR)
In Circuit Serial Programming (ICSP)
Wide Operating Voltage of PIC16F1619 variant (2.3V – 5.5V)
Enhanced Low-Voltage PIC16LF1619 variant (1.8V – 3.6V)
