Microchip, 8 bit 8 Bit CPU, AT89C51CC01 Microcontroller, 40 MHz, 32kB FLASH, 44-Pin PLCC

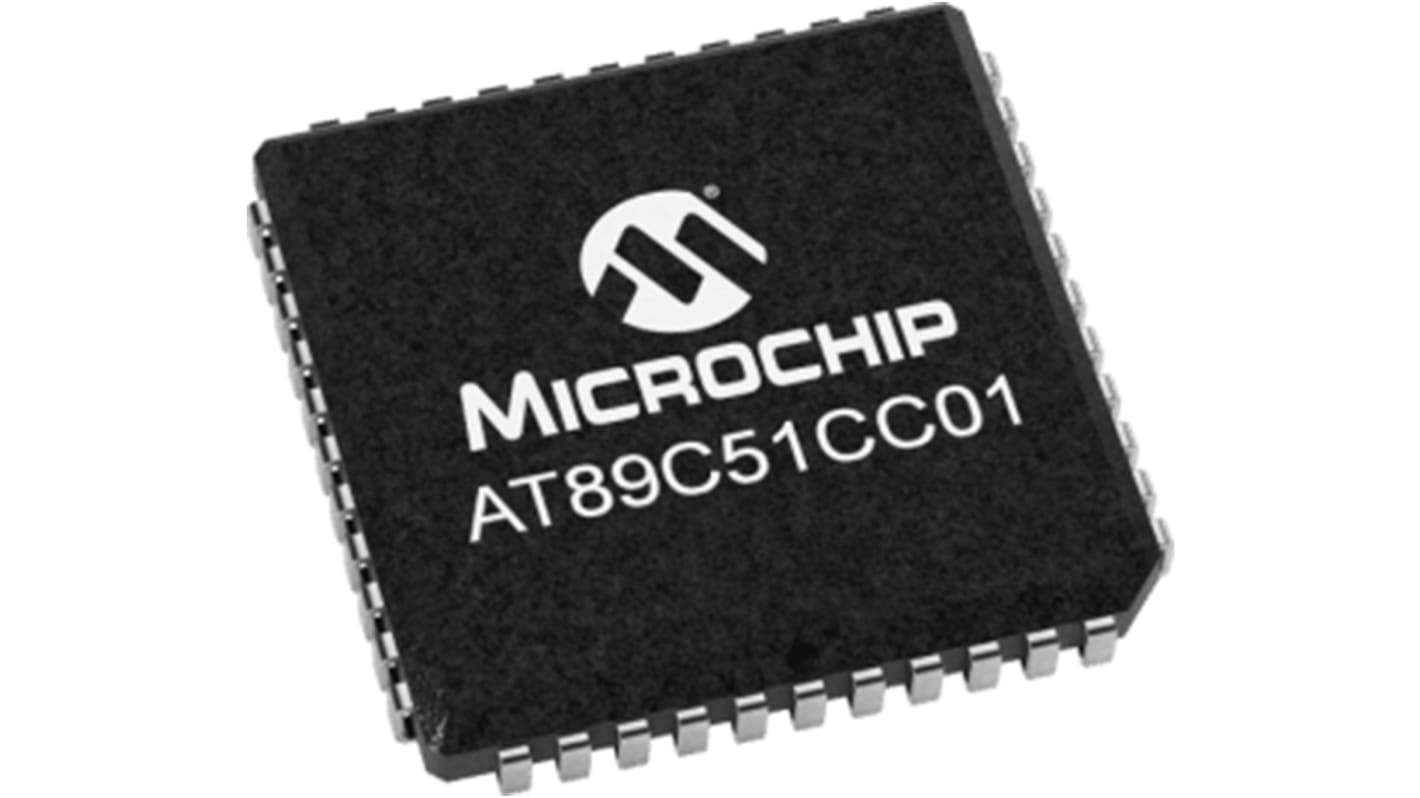

This image is representative of the product range

View all Microcontrollers
Bulk discount available

Subtotal (1 tube of 27 units)*

$382.077

(exc. GST)

$420.282

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 135 unit(s) shipping from 17 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
27 - 27$14.151$382.08
54 - 243$13.684$369.47
270 +$13.232$357.26

*price indicative

RS Stock No.:
177-1476
Mfr. Part No.:
AT89C51CC01UA-SLSUM
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Microcontroller

Series

AT89C51CC01

Package Type

PLCC

Mount Type

Surface

Pin Count

44

Device Core

8 Bit CPU

Data Bus Width

8bit

Program Memory Size

32kB

Interface Type

UART

Maximum Clock Frequency

40MHz

RAM Size

256bit

Maximum Supply Voltage

5.5V

Maximum Power Dissipation Pd

1W

Minimum Operating Temperature

-40°C

Number of Programmable I/Os

36

Maximum Expanded Memory Size

1.02kB

Maximum Operating Temperature

85°C

Height

4.06mm

Width

16.66 mm

Standards/Approvals

RoHS

Length

16.66mm

Minimum Supply Voltage

3V

Number of Timers

1

ADCs

8 x 10 Bit

Program Memory Type

FLASH

Automotive Standard

No

Instruction Set Architecture

80C51

COO (Country of Origin):
US
First member of the Microchip CAN family of 8-bit microcontrollers for CAN network applications. It provides 32KB of flash memory including ISP, 2KB of boot flash memory, 2KB of EEPROM, and 1.2KB of RAM. In X2 mode a maximum external clock rate of 20MHz reaches a 300ns cycle time. Special attention is paid to reducing its electro-magnetic emissions.
