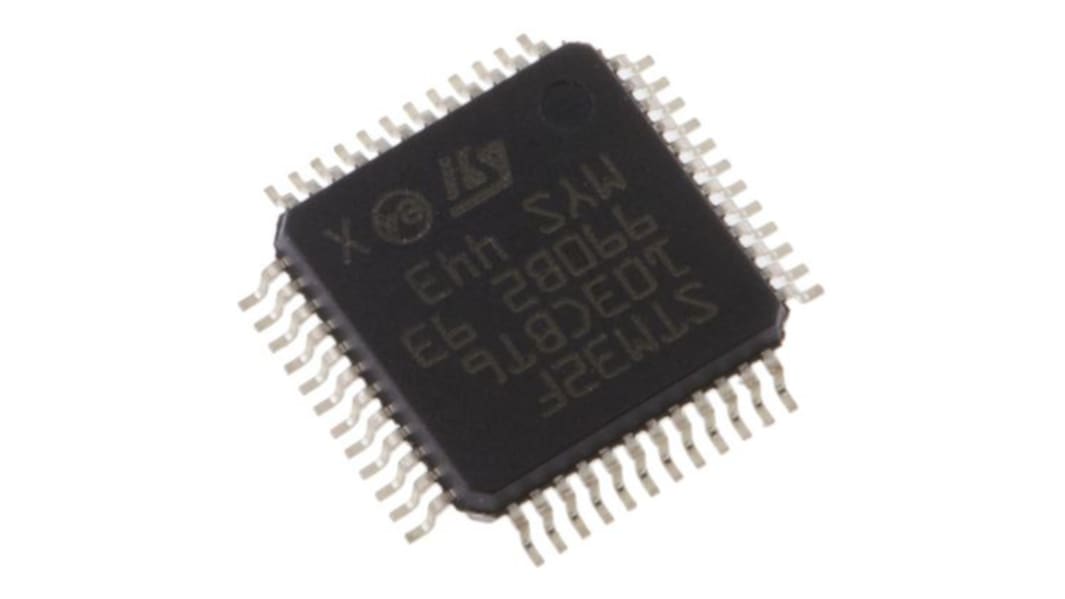

STMicroelectronics STM32F042C6T6, 32bit ARM Cortex M0 Microcontroller, STM32F0, 48MHz, 32 kB Flash, 48-Pin LQFP
- RS Stock No.:
- 166-1087
- Mfr. Part No.:
- STM32F042C6T6
- Brand:
- STMicroelectronics
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each (In a Tray of 250)
$4.242
(exc. GST)
$4.666
(inc. GST)
Units | Per unit | Per Tray* |
250 - 1000 | $4.242 | $1,060.50 |
1250 + | $3.818 | $954.50 |
*price indicative |
- RS Stock No.:
- 166-1087
- Mfr. Part No.:
- STM32F042C6T6
- Brand:
- STMicroelectronics
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
STM32F04 Series Microcontrollers, STMicroelectronics
RISC Core: ARM 32-bit Cortex-M0 CPU, frequency up to 48MHz
CRC calculation unit
Reset and power management
Clock management
Up to 37 fast Inputs/Outputs
5-channel DMA controller
8 Timers
Communication interfaces: I2C, USART, SPI, CAN, USB 2.0 full-speed
CRC calculation unit
Reset and power management
Clock management
Up to 37 fast Inputs/Outputs
5-channel DMA controller
8 Timers
Communication interfaces: I2C, USART, SPI, CAN, USB 2.0 full-speed
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
STM32F0 Series 32-Bit ARM® Cortex®-M0 Microcontrollers, STMicroelectronics
The STM32 F0 Series of the 32-bit Flash Microcontrollers (MCUs) is based on the ARM Cortex™-M0 core; a core specifically developed for embedded applications. STMicroelectronicss STM32 ARM Cortex™ M processor benefits from the Cortex-M0 architectural enhancements including digital signal processing, real-time performance, low voltage and low power. STs ARM® STM32 F0 mainstream series delivers a 32-bit performance and is ideal for small projects or platform decisions with its easy to use functionality.
Specifications
Attribute | Value |
---|---|
Family Name | STM32F0 |
Package Type | LQFP |
Mounting Type | Surface Mount |
Pin Count | 48 |
Device Core | ARM Cortex M0 |
Data Bus Width | 32bit |
Program Memory Size | 32 kB |
Maximum Frequency | 48MHz |
RAM Size | 6 kB |
USB Channels | 1 |
Typical Operating Supply Voltage | 2 → 3.6 V |
Instruction Set Architecture | RISC |
Number of ADC Units | 1 |
Program Memory Type | Flash |
Length | 7.2mm |
Maximum Operating Temperature | +85 °C |
ADCs | 13 x 12 bit |
Maximum Number of Ethernet Channels | 0 |
Height | 1.45mm |
Dimensions | 7.2 x 7.2 x 1.45mm |
Minimum Operating Temperature | -40 °C |
Data Rate | 18Mbps |
Width | 7.2mm |
