Microchip PIC32MX270F256B-50I/SP, 32bit PIC Microcontroller, PIC32MX, 50MHz, 256 kB Flash, 28-Pin SPDIP

RS Stock No.:: 145-9376
Mfr. Part No.:: PIC32MX270F256B-50I/SP
Brand:: Microchip

Microchip PIC32MX270F256B-50I/SP, 32bit PIC Microcontroller, PIC32MX, 50MHz, 256 kB Flash, 28-Pin SPDIP

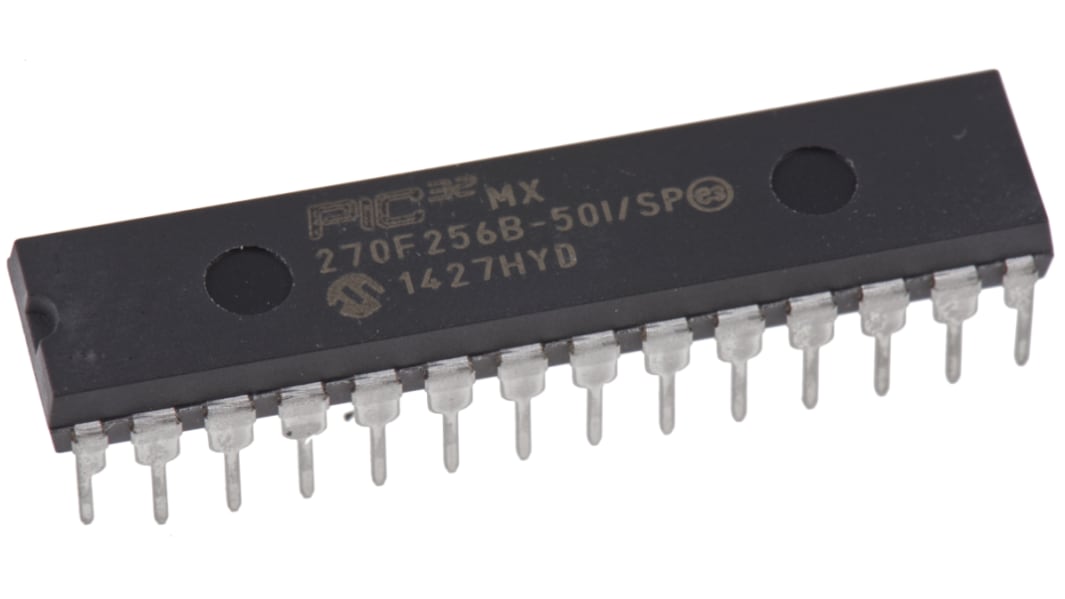

This image is representative of the product range

1 / 1

Bulk discount available

Subtotal (1 tube of 15 units)**

$138.03

(exc. GST)

$151.83

(inc. GST)

15 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit	Per Tube**
15 - 15	$9.202	$138.03
30 - 45	$8.971	$134.565
60 +	$8.833	$132.495

**price indicative

RS Stock No.:: 145-9376
Mfr. Part No.:: PIC32MX270F256B-50I/SP
Brand:: Microchip

PIC32MX1x0/2x0/5x0 32-Bit Microcontrollers

The PIC32 range of microcontrollers from Microchip are 32-bit MCUs with a MIPS microAptiv or M4K core in combination with full range of integrated tools needed for embedded applications. The high performance offered by these devices is desirable for advanced applications such as high impact graphic/user interfaces, Ethernet/USB/CAN connectivity, multitasking embedded control and high performance audio.

The PIC32Mx1x0/2x0/5x0 family of microcontrollers is based upon Microchip’s MIPS32® M4K® core providing up to 83 DMIPS, with variants offering up to 512 Kbytes Flash Program memory and RAM of up to 64 Kbytes.

Microcontroller Features

Up to 50 MHz Max. CPU Speed
MIPS16e® mode for up to 40% smaller code size
Multiple Power Management Modes
Configurable Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)

Peripheral Features

Peripheral Pin Select (PPS)
10-bit 1 Msps Analogue to Digital Converter (ADC) Module – 9 to 48 Channels Dependent on Model
Analogue Comparators – 2 to 3 Dependent on Model
Five 16-bit Timers
Two 32-bit Timers
Real-Time Clock and Calendar (RTCC) Module
Five Output Compare (OC) and Five Input Compare (IC) Modules
Four Direct Memory Access (DMA) Channels

Audio/Graphics/Touch HMI Features

Data Communication – I2S, LJ, RJ, and DSP modes
Control Interface – SPI and I2C
Master Clock – For generation of Fractional Clock frequencies. Can be synchronised with USB Clock and can be tuned in Run-Time
Charge Time Measurement Unit (CTMU) – Available on Some Models

Communication Interface Features

USB 2.0-compliant Full-Speed On-The-Go (OTG) Controller – Dependant on Model
Two UART Modules – Supports LIN 2.0 protocols and IrDA®
Two 4-Wire SPI Modules
Two I2C Modules with SMBus Support
Parallel Master Port (PMP)

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

High-performance 32-bit microcontrollers designed for: High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Microchip
	Family Name	PIC32MX
	Package Type	SPDIP
	Mounting Type	Through Hole
	Pin Count	28
	Device Core	PIC
	Data Bus Width	32bit
	Program Memory Size	256 kB
	Maximum Frequency	50MHz
	RAM Size	64 kB
	USB Channels	1 x OTG
	Number of PWM Units	1
	Number of SPI Channels	2
	Typical Operating Supply Voltage	2.3 → 3.6 V
	Number of I2C Channels	2
	Number of UART Channels	2
	Number of USART Channels	0
	Number of CAN Channels	0
	Automotive Standard	AEC-Q100
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-40 °C
	Number of ADC Units	1
	Length	35.56mm
	ADCs	1 x 10 bit
	Maximum Number of Ethernet Channels	0
	Instruction Set Architecture	RISC
	Number of LIN Channels	0
	Height	3.81mm
	Width	0.295in
	Dimensions	1.4 x 0.295 x 0.15in
	Pulse Width Modulation	1
	Program Memory Type	Flash
	Number of Ethernet Channels	0
	Number of PCI Channels	0
