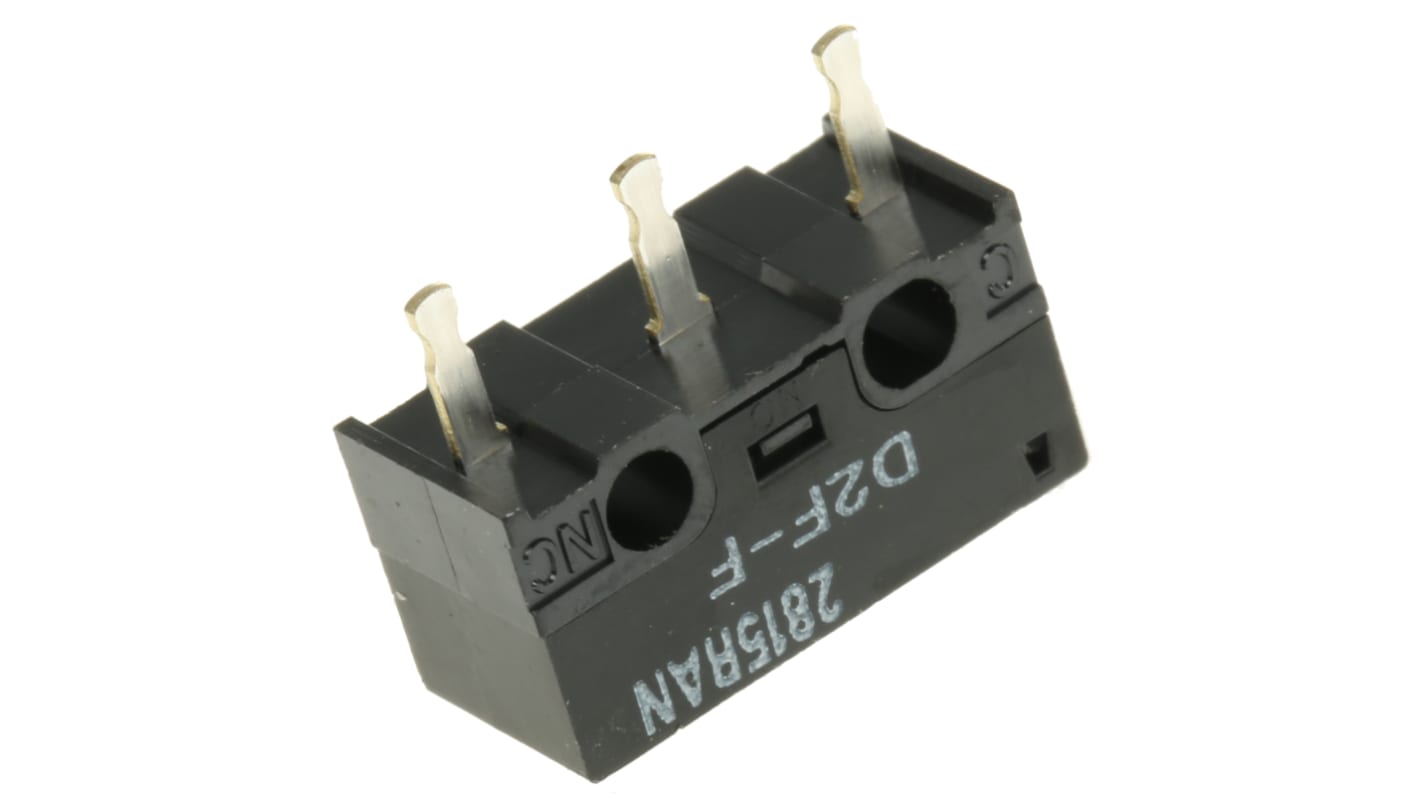

Omron Pin Plunger Micro Switch, PCB Terminal, 1 A @ 125 V ac, SPDT, IP40
- RS Stock No.:
- 682-1519
- Mfr. Part No.:
- D2F-F
- Brand:
- Omron
13355 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$2.628
(exc. GST)
$2.891
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 + | $2.628 | $13.14 |
| *price indicative | ||
- RS Stock No.:
- 682-1519
- Mfr. Part No.:
- D2F-F
- Brand:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Ultra Sub-Miniature Micro-switch
Snap action sub-miniature microswitch ideal for home appliances, audio equipment and communications equipment.
RoHS compliant
Contact rating: 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
SPDT contact configuration
Snap action
Contact rating: 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
SPDT contact configuration
Snap action
Approvals: UL & CSA
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Pin Plunger |
| Terminal Type | PCB |
| Contact Current Rating | 1 A @ 125 V ac |
| Contact Configuration | SPDT-NO/NC |
| IP Rating | IP40 |
| Operating Force | 0.74 N |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +65°C |
| Contact Material | Silver Alloy |
| Mechanical Life | 1000000Operations |
| Release Force | 0.05N |
| Operating Temperature Range | -25 → +65°C |
