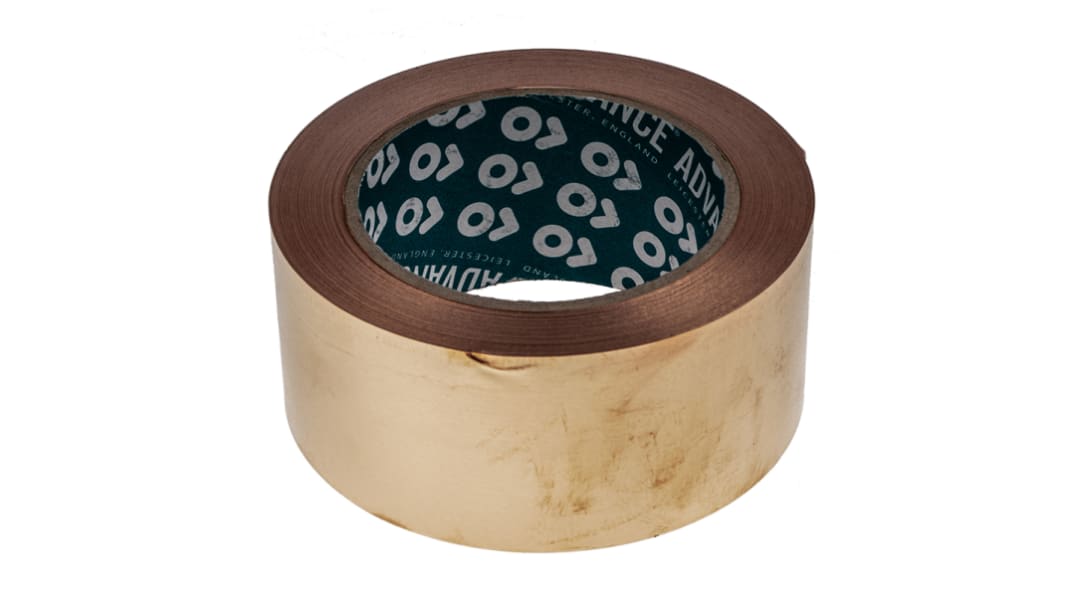

Advance Tapes AT525 Non-Conductive Metallic Tape, 50mm x 33m
- RS Stock No.:
- 542-5498
- Brand:
- Advance Tapes
Subtotal (1 unit)**
$281.70
(exc. GST)
$309.87
(inc. GST)
28 In Global stock for delivery within 10 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $80.00 ex GST
Units | Per unit |
---|---|
1 + | $281.70 |
**price indicative
- RS Stock No.:
- 542-5498
- Brand:
- Advance Tapes
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Advance Tapes | |
Tape Type | Copper Tape | |
Total Thickness | 0.07mm | |
Foil Thickness | 0.035mm | |
Width | 50mm | |
Length | 33m | |
Conductivity | Non-Conductive | |
Adhesion Strength | 4.5 N/cm | |
Adhesive Material | Thermosetting Acrylic | |
Material Plating | None | |
Tensile Strength | 40N/cm | |
Maximum Temperature Resistance | +155°C | |
Minimum Temperature Resistance | -20°C | |
Complies with EN Legislation | BS EN 60454 - Part 2 | |
Model Number | AT525 | |
Select all | ||
---|---|---|
Brand Advance Tapes | ||
Tape Type Copper Tape | ||
Total Thickness 0.07mm | ||
Foil Thickness 0.035mm | ||
Width 50mm | ||
Length 33m | ||
Conductivity Non-Conductive | ||
Adhesion Strength 4.5 N/cm | ||
Adhesive Material Thermosetting Acrylic | ||
Material Plating None | ||
Tensile Strength 40N/cm | ||
Maximum Temperature Resistance +155°C | ||
Minimum Temperature Resistance -20°C | ||
Complies with EN Legislation BS EN 60454 - Part 2 | ||
Model Number AT525 | ||
