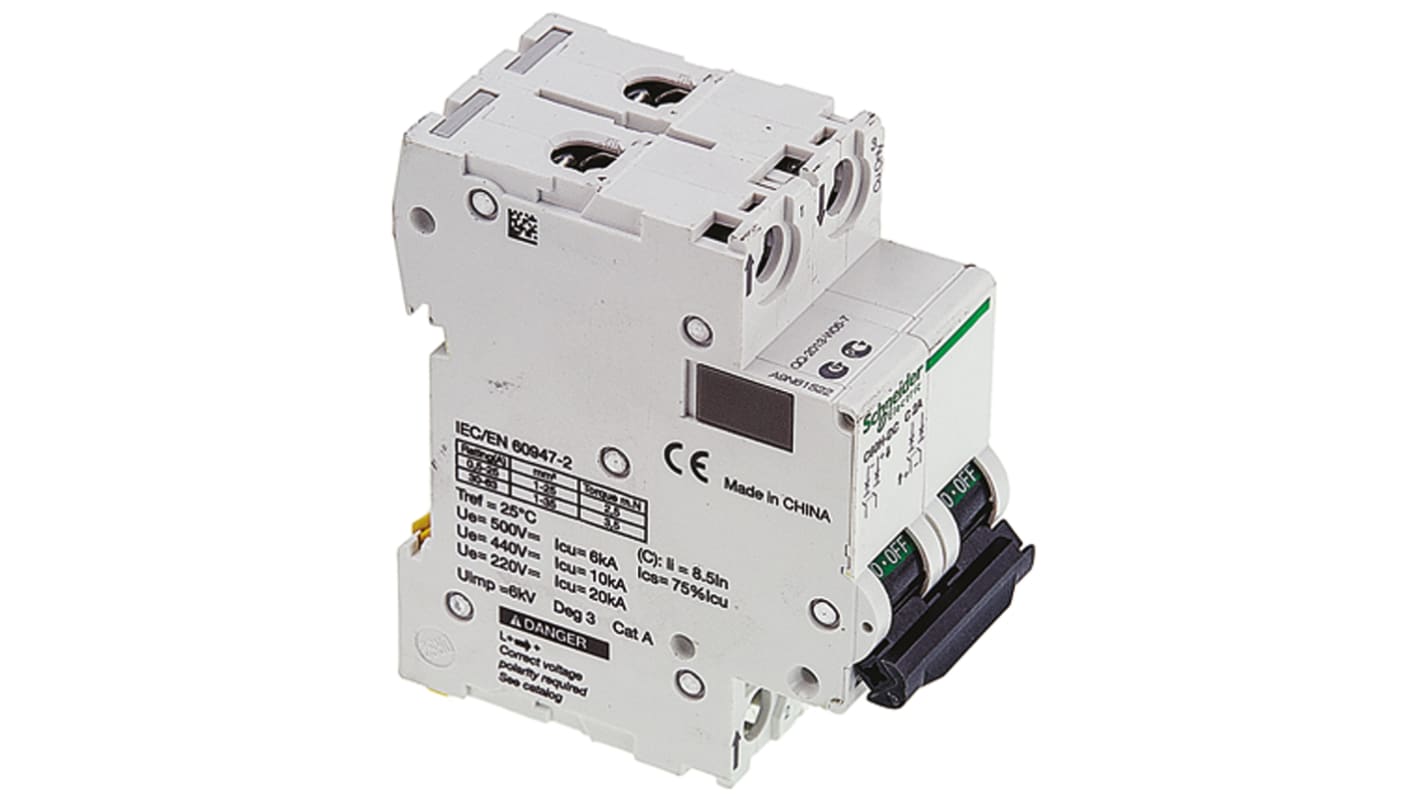

Schneider Electric Acti 9 C60H-DC MCB, 2P, 2A Curve C, 500V DC
- RS Stock No.:
- 772-1524
- Mfr. Part No.:
- A9N61522
- Brand:
- Schneider Electric
Bulk discount available
Subtotal (1 unit)*
$172.70
(exc. GST)
$189.97
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 9 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $172.70 |
| 10 - 14 | $165.79 |
| 15 + | $158.89 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 772-1524
- Mfr. Part No.:
- A9N61522
- Brand:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 2 | |
| Current Rating | 2A | |
| Tripping Characteristics | Type C | |
| Rated DC Voltage | 500V | |
| Range | Acti 9 | |
| Series | C60H-DC | |
| Circuit Breaker Type | MCB | |
| Width | 36mm | |
| Length | 81mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 73mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 2 | ||
Current Rating 2A | ||
Tripping Characteristics Type C | ||
Rated DC Voltage 500V | ||
Range Acti 9 | ||
Series C60H-DC | ||
Circuit Breaker Type MCB | ||
Width 36mm | ||
Length 81mm | ||
Mounting Style DIN Rail Mount | ||
Depth 73mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
- COO (Country of Origin):
- FR
Schneider Electric Acti9 C60H-DC MCBs
This range of supplementary protectors are used in direct current circuits (Industrial control and automations, transport, renewable energy).
They combine the following functions of circuit protection against short-circuit and overload currents, control and isolation.
They combine the following functions of circuit protection against short-circuit and overload currents, control and isolation.
Features & Benefits
• Tripping curves: C curve - Overcurrent protection for any type of application
• The green strip indicates that all the poles are open and allows work to be carried out on the downstream circuit in complete safety
• Suitable for isolation as defined in IEC / EN 60947-2
• Current limitation in the event of a fault: fast opening of the contacts prevents the loads from being damaged in the event of a short-circuit
• The green strip indicates that all the poles are open and allows work to be carried out on the downstream circuit in complete safety
• Suitable for isolation as defined in IEC / EN 60947-2
• Current limitation in the event of a fault: fast opening of the contacts prevents the loads from being damaged in the event of a short-circuit
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
