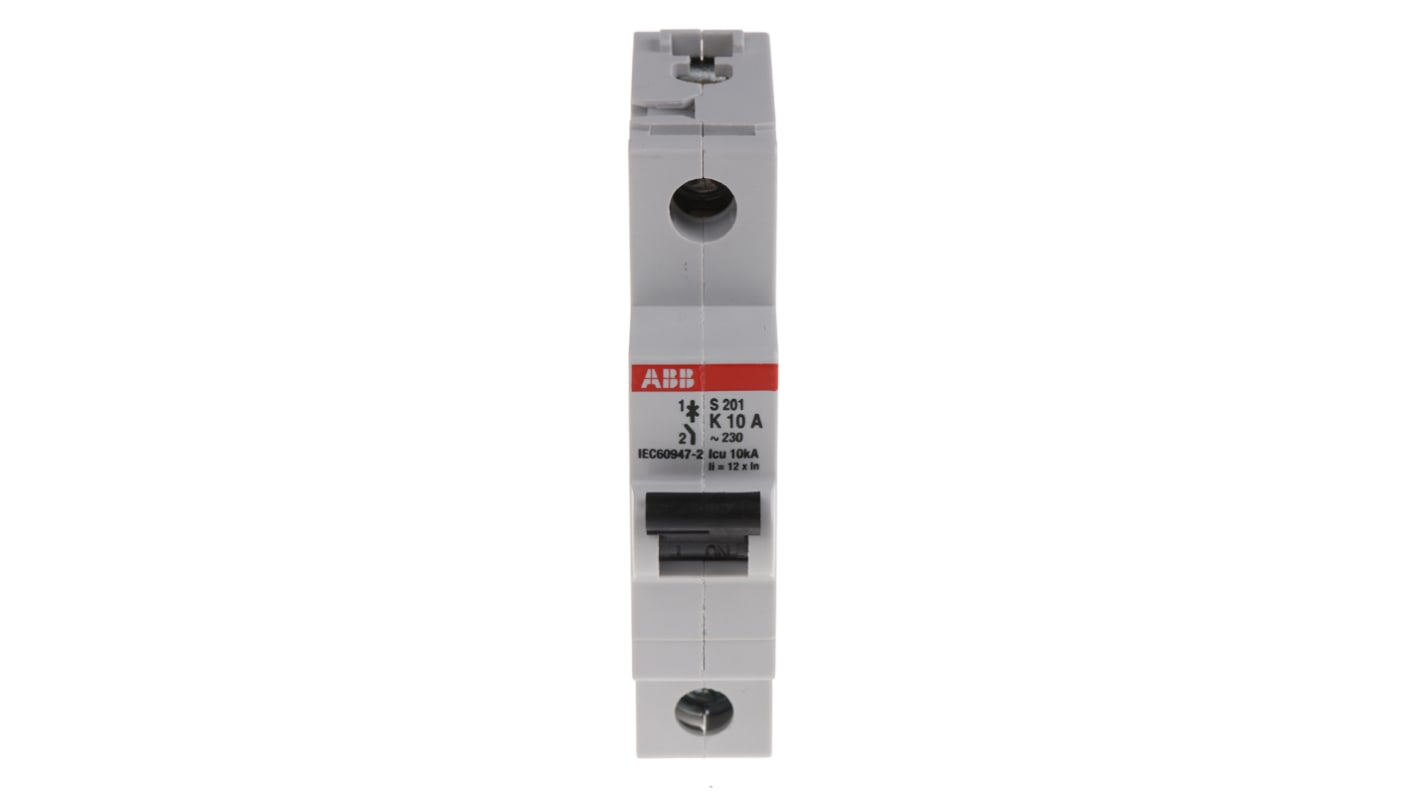

ABB System Pro M Compact System Pro M Compact Miniature Circuit Breaker, 1-Pole, 10A, Type K, 253V ac AC, 72 V dc DC, 6
- RS Stock No.:
- 514-0131
- Distrelec Article No.:
- 303-11-456
- Mfr. Part No.:
- 2CDS251001R0427 S201-K10
- Brand:
- ABB
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$52.54
(exc. GST)
$57.79
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 5 | $52.54 |
| 6 - 11 | $51.89 |
| 12 + | $50.71 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 514-0131
- Distrelec Article No.:
- 303-11-456
- Mfr. Part No.:
- 2CDS251001R0427 S201-K10
- Brand:
- ABB
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 10A | |
| Tripping Characteristics | Type K | |
| Rated AC Voltage | 253V ac | |
| Rated DC Voltage | 72V dc | |
| Breaking Capacity | 6kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | System Pro M Compact | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20, IP40 | |
| Width | 76mm | |
| Height | 88mm | |
| Depth | 76mm | |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Tripping Mechanism | Thermomagnetic, Electromagnetic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 10A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 253V ac | ||
Rated DC Voltage 72V dc | ||
Breaking Capacity 6kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series System Pro M Compact | ||
Terminal Type Cage Terminal | ||
IP Rating IP20, IP40 | ||
Width 76mm | ||
Height 88mm | ||
Depth 76mm | ||
Standards/Approvals IEC/EN 60947-2, IEC/EN 60898-1 | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Tripping Mechanism Thermomagnetic, Electromagnetic | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ABB MCB, 6kA Breaking Capacity, IP20 Rating - S200 Series - 2CDS251001R0427 S201-K10
Add this MCB from ABB to your distribution board to help safeguard an industrial circuit. It has a thermal trip to detect overloads and an electromechanical mechanism to protect against short circuits to minimise damage from electrical faults. As the unit has a type K trip characteristic, it breaks the circuit when loads between 8 and 12 times the rated current are detected. A slight delay minimises tripping when inrush currents occur. This makes it suitable for use with inductive loads and motors that draw a lot of power when they're first switched on.
Features & Benefits
• Suitable for AC or DC input voltages for flexibility
• Wide operating temperature range between -25°C and +55°C for use in harsh conditions
• Compatible with bottom-fitting auxiliary contacts to save space on your DIN rail
• Wide terminal opening to accommodate cable sizes up to 35mm²
Applications
• Motor control
• Industrial automation
• Marine industry
• HVAC installations
• Facilities management
Does this MCB have contact position indicators?
Yes. This MCB has an indicator underneath the toggle. For clarity, it shows red for on and green for off.
Standards
IEC/EN60947-2
