Schneider Electric Acti9 Acti9 Miniature Circuit Breaker, 4-Pole, 24 A, Type C, 230 V ac AC, 48 V dc DC, 20 kA Breaking
- RS Stock No.:
- 273-2121
- Mfr. Part No.:
- A9C62425
- Brand:
- Schneider Electric
Subtotal (1 unit)*
$1,327.20
(exc. GST)
$1,459.92
(inc. GST)
Add 1 unit to get free delivery
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $1,327.20 |
*price indicative
- RS Stock No.:
- 273-2121
- Mfr. Part No.:
- A9C62425
- Brand:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 24 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230 V ac | |
| Rated DC Voltage | 48 V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 20kA | |
| Range | Acti9 | |
| Series | Acti9 | |
| IP Rating | IP20 | |
| Depth | 77mm | |
| Standards/Approvals | RoHS | |
| Width | 117 mm | |
| Height | 84mm | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Handle | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 24 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 V ac | ||
Rated DC Voltage 48 V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 20kA | ||
Range Acti9 | ||
Series Acti9 | ||
IP Rating IP20 | ||
Depth 77mm | ||
Standards/Approvals RoHS | ||
Width 117 mm | ||
Height 84mm | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Handle | ||
- COO (Country of Origin):
- ES

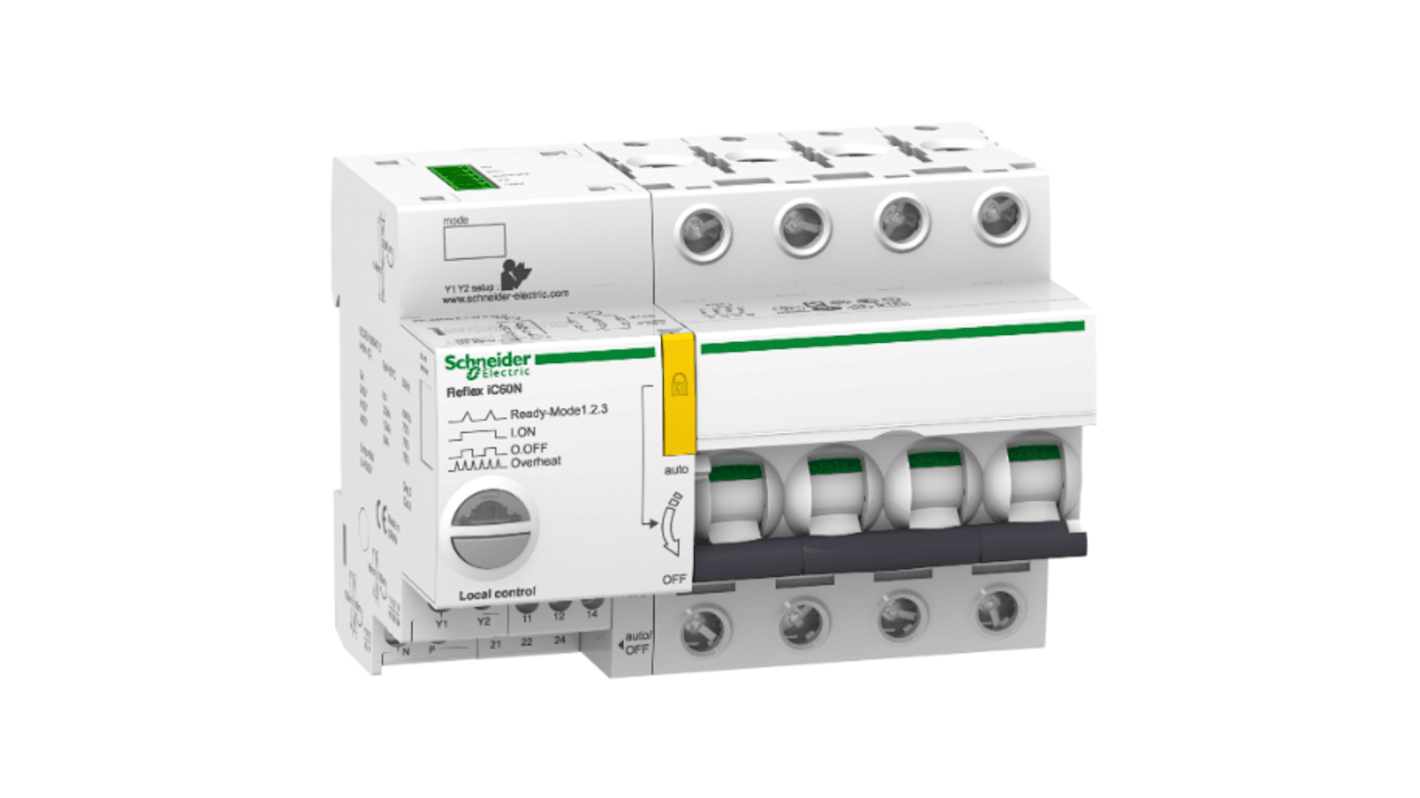

The Schneider Electric Acti9 Reflex iC60N is a low voltage integrated control circuit breaker. It is a 4P circuit breaker with protected poles, 25A rated current and C tripping curve. It protects circuits against short circuit and overload currents, disconnection in the industrial sector. It allows to execute remote control, to indicate the state of the control circuit and circuit breaker state information, to connect it to the Acti9 Smart link thanks to the prefabricated cables.
Modular installation
Control device remotely
