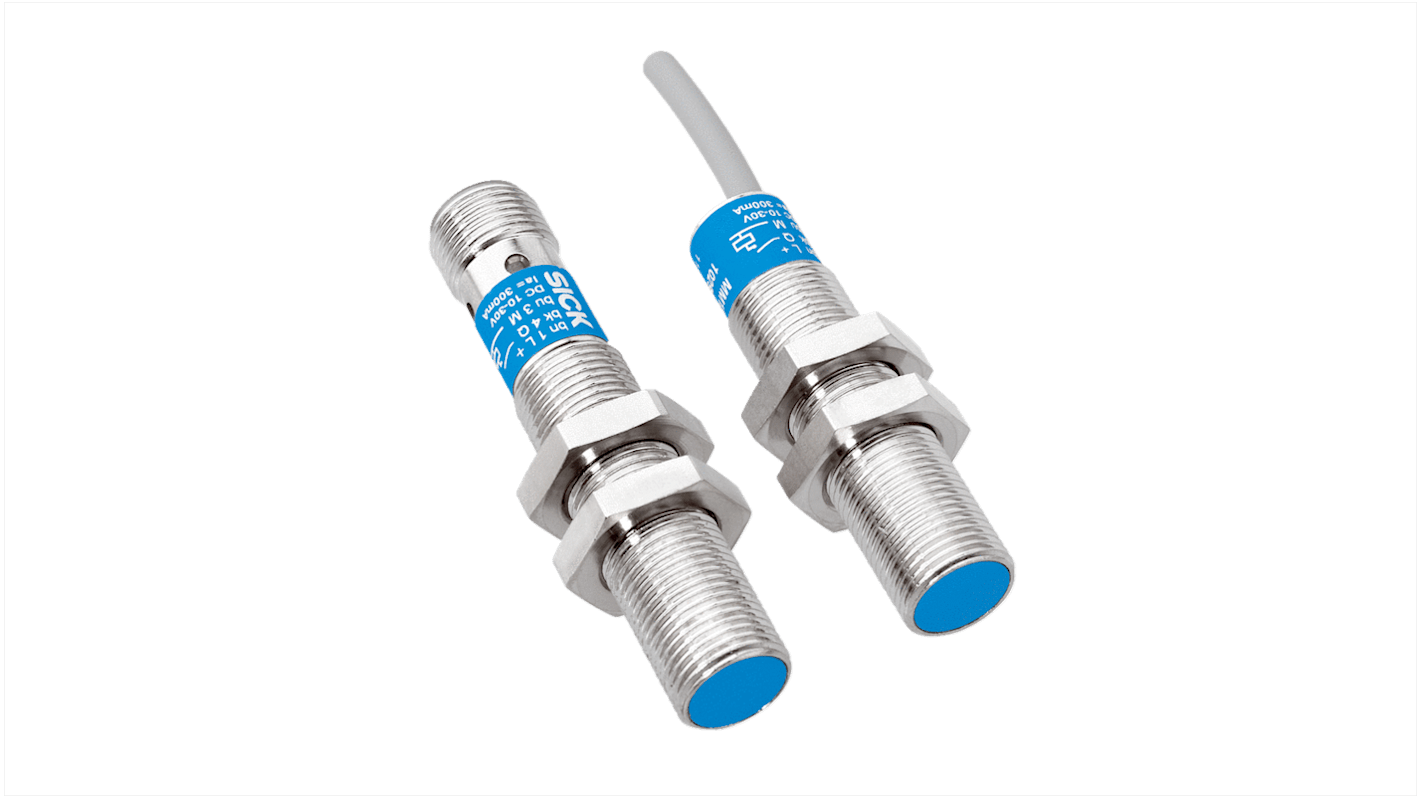

SICK Magnetic Proximity Sensor, IP67, 10mA
- RS Stock No.:
- 285-4155
- Mfr. Part No.:
- MM12-90APS-ZU0
- Brand:
- SICK
Subtotal (1 unit)*
$225.42
(exc. GST)
$247.96
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Stocked by manufacturer
- Ready to ship from 29 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $225.42 |
*price indicative
- RS Stock No.:
- 285-4155
- Mfr. Part No.:
- MM12-90APS-ZU0
- Brand:
- SICK
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Magnetic Proximity Sensor | |
| Output Function | NO | |
| Switch Output | PNP | |
| Housing Material | Nickel Plated Brass, Metal | |
| Terminal Type | Cable | |
| Switching Current | 10mA | |
| IP Rating | IP67 | |
| Switching Frequency | 1000Hz | |
| Minimum Operating Temperature | -25°C | |
| Sensing Range | 5 to 90 mm | |
| Switching DC Voltage | 30V dc | |
| Maximum Operating Temperature | 75°C | |
| Length | 50mm | |
| Standards/Approvals | According to EN 60947-5-2 | |
| Width | 12mm | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Magnetic Proximity Sensor | ||
Output Function NO | ||
Switch Output PNP | ||
Housing Material Nickel Plated Brass, Metal | ||
Terminal Type Cable | ||
Switching Current 10mA | ||
IP Rating IP67 | ||
Switching Frequency 1000Hz | ||
Minimum Operating Temperature -25°C | ||
Sensing Range 5 to 90 mm | ||
Switching DC Voltage 30V dc | ||
Maximum Operating Temperature 75°C | ||
Length 50mm | ||
Standards/Approvals According to EN 60947-5-2 | ||
Width 12mm | ||
- COO (Country of Origin):
- HU
Overview
MM magnetic proximity sensors provide long sensing ranges that can reliably detect magnetic objects. Magnetic proximity sensors are resistant to dust, heat, vibrations and other harsh environments.
The MM magnetic sensors are enclosed in a cylindrical housing and are available in sizes MM08, MM12 and MM18.
At a glance
Types: M8 to M18
Sensing range: up to 120 mm
Electrical configuration: DC 3-wire
Enclosure rating: IP 67
Temperature range: –25 °C to +75 °C
Nickel-plated brass housing; plastic sensing face
Reliable detection of permanent magnets through non-ferromagnetic materials such as stainless steel, aluminium, plastic or wood
Solves high-temperature applications by installing the permanent magnet in the high-temperature area and the sensor behind an insulated area
Your Benefit
Non-contact operation eliminates interference from dirt, dust and vibrations, increasing sensor life and reducing maintenance costs
Space-saving installation due to small design
Large operating ranges with reliable switching increase throughput
Non-contact, universal detection through several substances, including plastic containers and pipes protective PTFE walls and non-magnetic metal walls
Applications
Logistics automation
Building management: Door leaf detection on elevator doors
Building management: Zone detection in elevator shafts
Building management: Position determination on a revolving door
Building management: Door leaf detection on automatic sl
