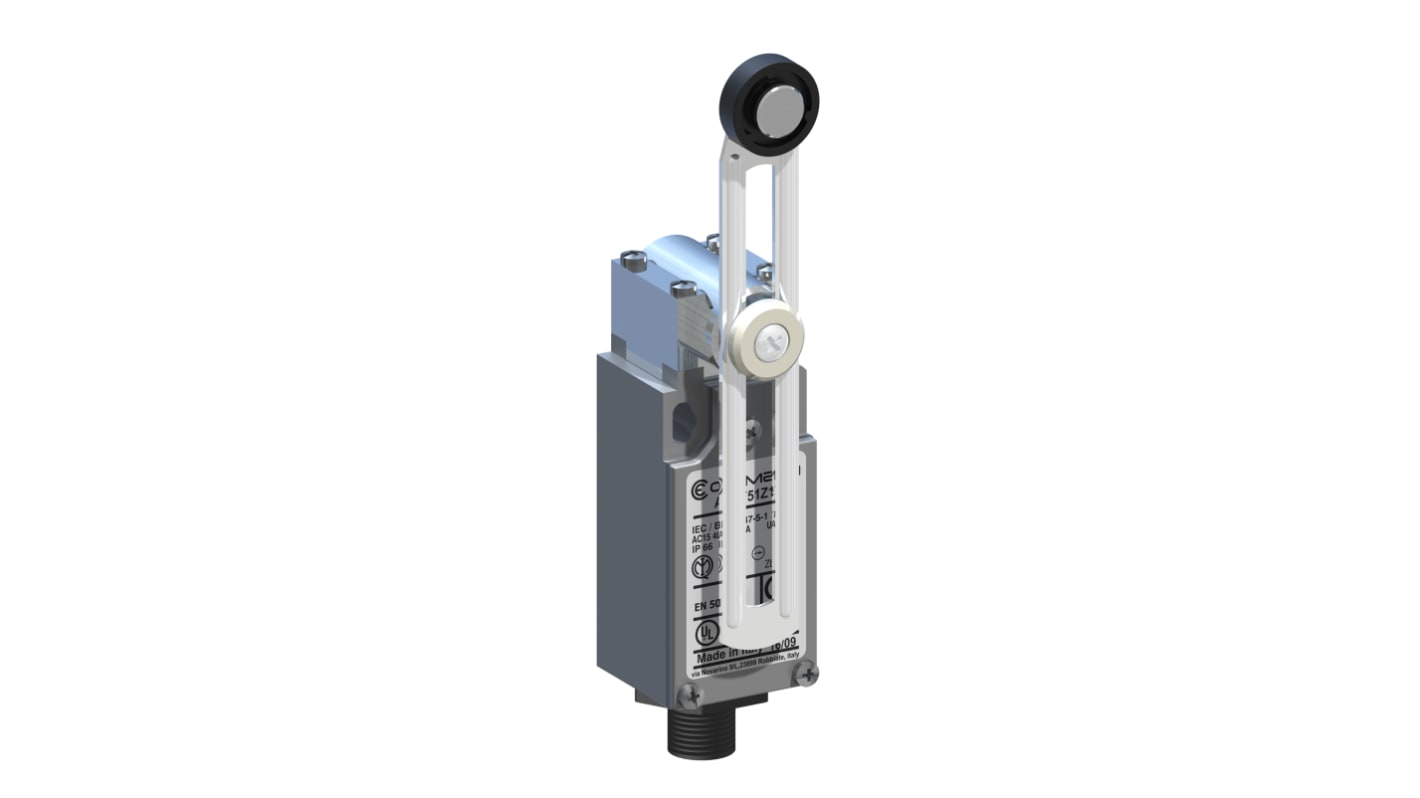

IP66 Snap Action Limit Switch Roller Lever Metal, NC, NO, 400V

  • RS Stock No. 153-3970
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

RS M20 AM F/T Series Limit Switches

Easy to use electromechanical limit switches offer special qualities and purpose built detection devices with characteristics such as, presence/absence, positioning and travel limit, objects passing and counting. These limit switches are made from zinc alloy (Zamack) and all have a degree of protection of IP 66 or a Plastic casing IP65.

Visible operation
Able to switch strong currents – 10 A conventional thermal current
Electrically separated contacts
Precise operating points – consistency
Immune to electromagnetic disturbances
Variety of operating heads, plain plunger, roller plunger, Roller lever
Standardized dimension to EN 50047 and EN 50041
Metal Casing to IP66
Plastic casing to IP65 Double Insulated

Metal IP66 and Plastic Casing IP65 Limit Switches

Note

Rs Stock numbers 902-6922 and 902-6913 are Plastic Casing

Approvals

IEC 947-5-1, EN 60 947-5-1

Specifications
Attribute Value
Actuator Type Roller Lever
Pole and Throw Configuration DPST
Normal State Configuration NO/NC
IP Rating IP66
Maximum Current 10 A
Housing Material Metal
Maximum AC Voltage 400V
Maximum DC Voltage 250V
Connection Type M12
Contact Type Snap Action
Terminal Type Screw
Length 30.3mm
Width 46mm
Mechanical Life Minimum 10000000 Cycles
Minimum Operating Temperature -25°C
Standards Met CSA C22.2, CULus Listed, EAC, EN 60529, EN 60947-1, EN 60947-5-1, EN50047, IEC 60529, IEC 60947-1, IEC 60947-5-1, UL 508
Dimensions 30.3 x 46 x 172 mm
Maximum Operating Temperature +70°C
Depth 172mm
Mounting Orientation Vertical
6 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 62.96
(exc. GST)
$ 69.26
(inc. GST)
units
Per unit
1 +
$62.96
