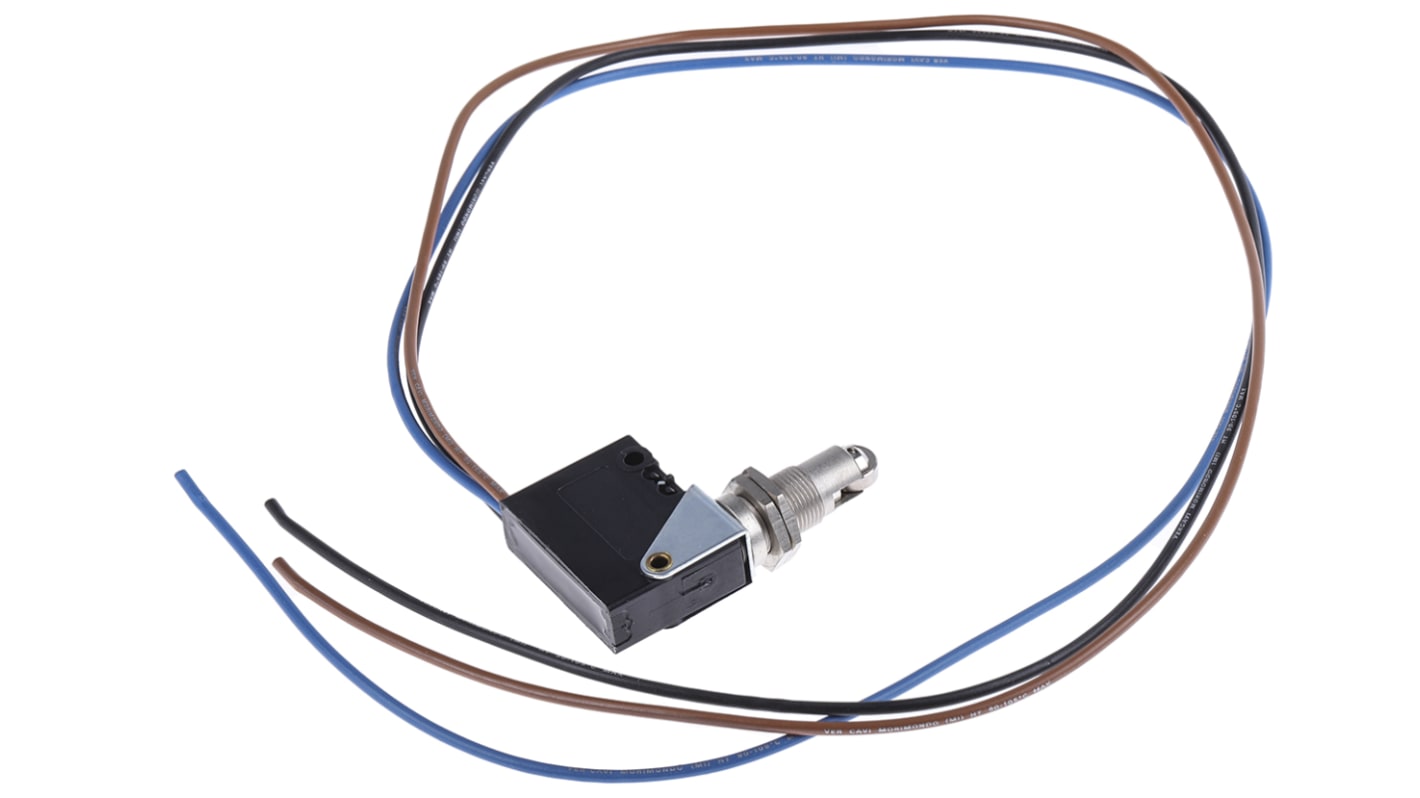

IP67 Limit Switch Plunger, NO/NC, 250V

  • RS Stock No. 539-292
  • Mfr. Part No. 83581101
  • Manufacturer Crouzet
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Miniature Protected Limit Switches

Single break two-way contact element, compact dimensions. Complete with 0.5 metres of 3 core cable (black,brown, blue).

Operating current 8A 250 V
Operating force 5N
Minumum travel force 20N
Differential travel 1mm
Total travel 5mm
Mechanical life 100 000 operations (5A-250V)
Operating temp. range -20 to +85 deg C

Standards

NFC 20030 Class I

Telemecanique, Square D & Crouzet

Specifications
Attribute Value
Actuator Type Plunger
Pole and Throw Configuration SP
Normal State Configuration NO/NC
IP Rating IP67
Maximum Current 8 A
Maximum AC Voltage 250V
Connection Type Cable
Terminal Type Wire Lead
Length 53.9mm
Width 31mm
Dimensions 53.9 x 31 x 25 mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
Mechanical Life Minimum 10⁵ cycles
Depth 25mm
51 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 59.77
(exc. GST)
$ 65.75
(inc. GST)
units
Per unit
1 - 5
$59.77
6 - 11
$58.31
12 +
$57.25
