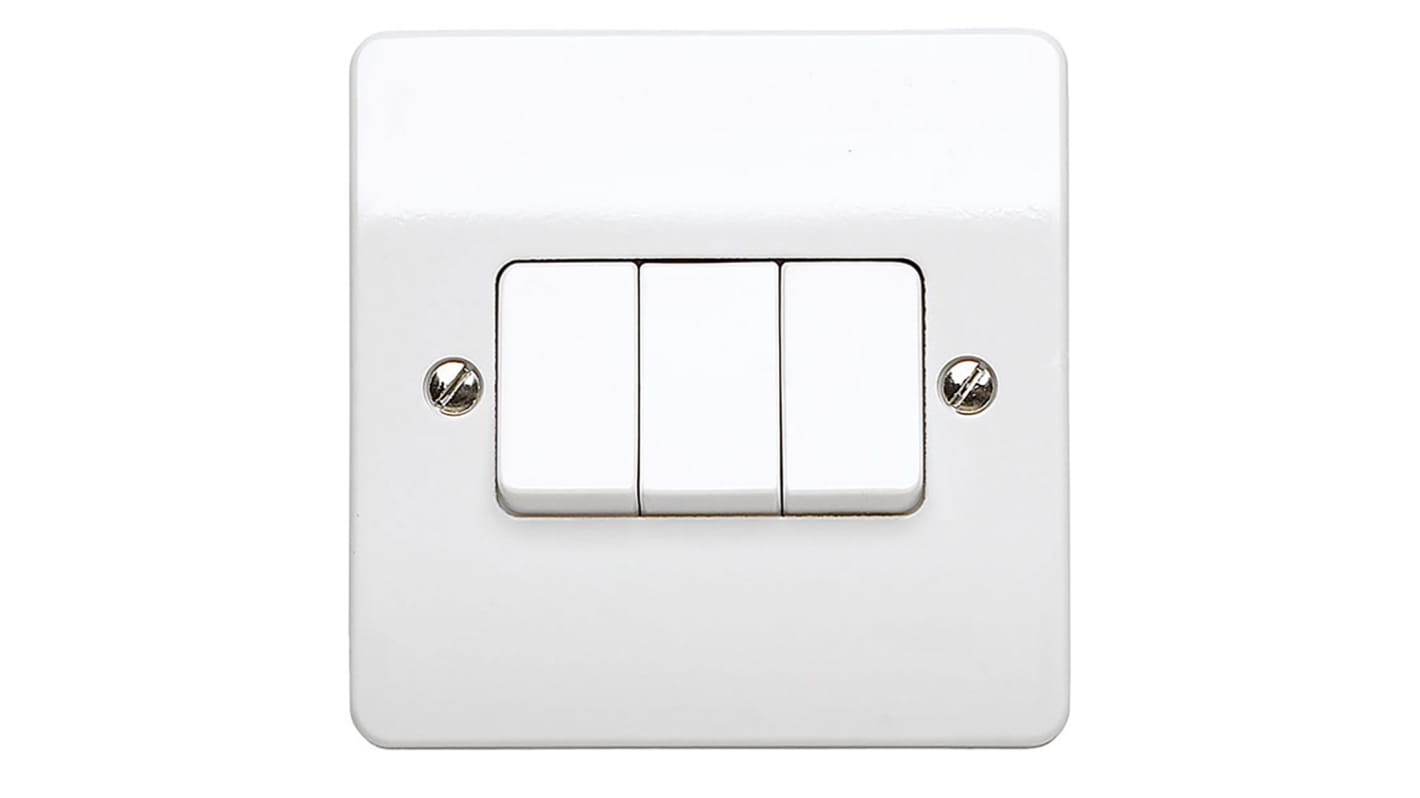

White 10 A Flush Mount Rocker Light Switch MK White 7 mm, 2 Way Screwed Semi Gloss, 3 Gang BS Standard, 250 V ac 86mm

  • RS Stock No. 222-8250
  • Mfr. Part No. K4873 WHI
  • Manufacturer MK Electric
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): MY
Product Details

Flush Mount Plateswitches

10 Amp Flush Plateswitch - K4873

3 GANG SP TWO-WAY Flush:
1, 2 & 3 gang: 3995 ZIC
4 & 6 gang: 862 ZIC

Surface:
1, 2 & 3 gang: K2160 WHI
4 & 6 gang: K2161 WHI
These switches do not have to be derated when used with fluorescent or inductive loads.
K4871, K4872, K4873,
K4874, K4879
These switches can be wired as either one-way or two-way.

Dimensions:
1, 2 & 3 gang: 86 x 86mm
4 & 6 gang: 86 x 146mm

FIXING CENTRES:
1, 2 & 3 gang: 60.3mm
4 & 6 gang: 120.6mm

Standards

BS3676 Pt.1 : 1989

Supplied with

8888

MK Logic Plus Flush Mounting

Stylish, quality, reliable and safe products that incorporate a host of design features which make the installers job easier and quicker. Logic Plus products are made from a high grade thermoset material which has an inherent antimicrobial property. In recent independent tests, the Logic Plus products were equal to, or exceeded, competitor ’Anti-Bac’ products when tested for resistance to MRSA, E-Coli, Salmonella and Klebsiella Pneumoniae.

Specifications
Attribute Value
Switch Type Rocker
Number of Gangs 3
Number of Poles 1
Number of Ways 2
Mount Type Flush
Current Rating 10 A
IP Rating IP2X
Colour White
Material Urea Formaldehyde
Series Logic Plus
Voltage Rating 250 V ac
Finish Semi Gloss
Illumination Not Illuminated
Faceplate Fixing Screwed
Length 86 mm
Fixing Standard BS Standard
Faceplate Depth 7 mm
Width 86 mm
Colour Shade MK White
Minimum Box Depth 16mm
Height 86mm
Termination Type Captive Screw
4 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 9.19
(exc. GST)
$ 10.11
(inc. GST)
units
Per unit
1 - 9
$9.19
10 - 49
$8.97
50 +
$8.73
