Taiwan Semiconductor LED Driver IC, 40 V 300 mA 6-Pin SOT-26
- RS Stock No.:
- 216-9645
- Mfr. Part No.:
- TSCR421CX6H
- Brand:
- Taiwan Semiconductor

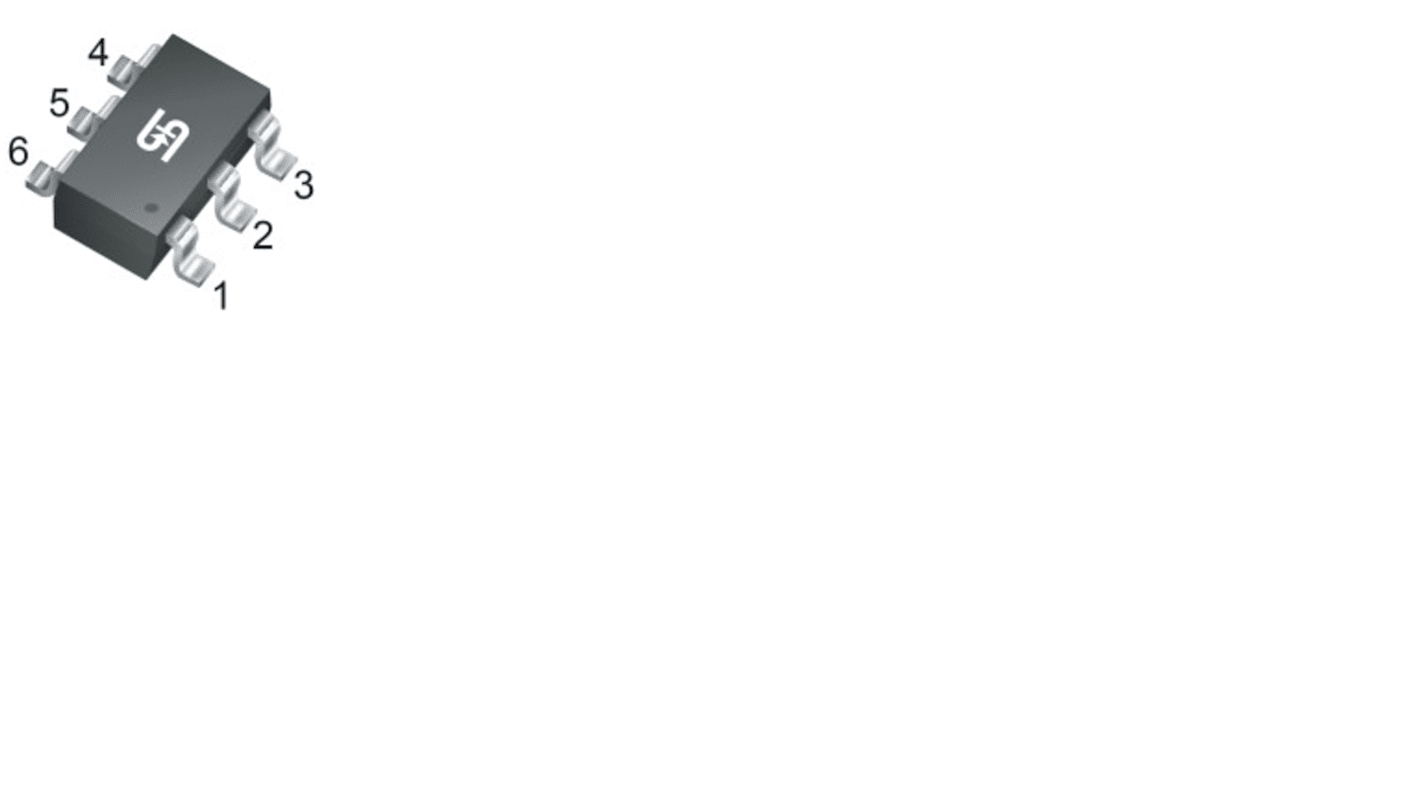

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 216-9645
- Mfr. Part No.:
- TSCR421CX6H
- Brand:
- Taiwan Semiconductor
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Taiwan Semiconductor | |
| Output Current | 300mA | |
| Product Type | LED Driver IC | |
| Input Voltage | 40 V | |
| Input Voltage Type | DC | |
| Dimming Operation | PWM | |
| Maximum Output Power | 1W | |
| Mount Type | Surface | |
| Package Type | SOT-26 | |
| Number of Pins | 6 | |
| Maximum Output Voltage | 40V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | TSCR | |
| Standards/Approvals | RoHS 2011/65/EU, WEEE 2002/96/EC, IEC 61249-2-21 | |
| Automotive Standard | AEC-Q100 | |
| Minimum Output Voltage | 1.4V | |
| Select all | ||
|---|---|---|
Brand Taiwan Semiconductor | ||
Output Current 300mA | ||
Product Type LED Driver IC | ||
Input Voltage 40 V | ||
Input Voltage Type DC | ||
Dimming Operation PWM | ||
Maximum Output Power 1W | ||
Mount Type Surface | ||
Package Type SOT-26 | ||
Number of Pins 6 | ||
Maximum Output Voltage 40V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series TSCR | ||
Standards/Approvals RoHS 2011/65/EU, WEEE 2002/96/EC, IEC 61249-2-21 | ||
Automotive Standard AEC-Q100 | ||
Minimum Output Voltage 1.4V | ||
TSCR420_datasheet_en.pdf
The Taiwan semiconductor linear constant current led driver are Low-Side Constant Current Regulator (CCR) for linear LED driving. The device regulates with a preset 10mA nominal that can be adjusted with an external resistor up to 300mA.
Device temperature grade 1: -40°C to 125°C Device HBM ESD classification level H2 Device CDM ESD classification level C8
