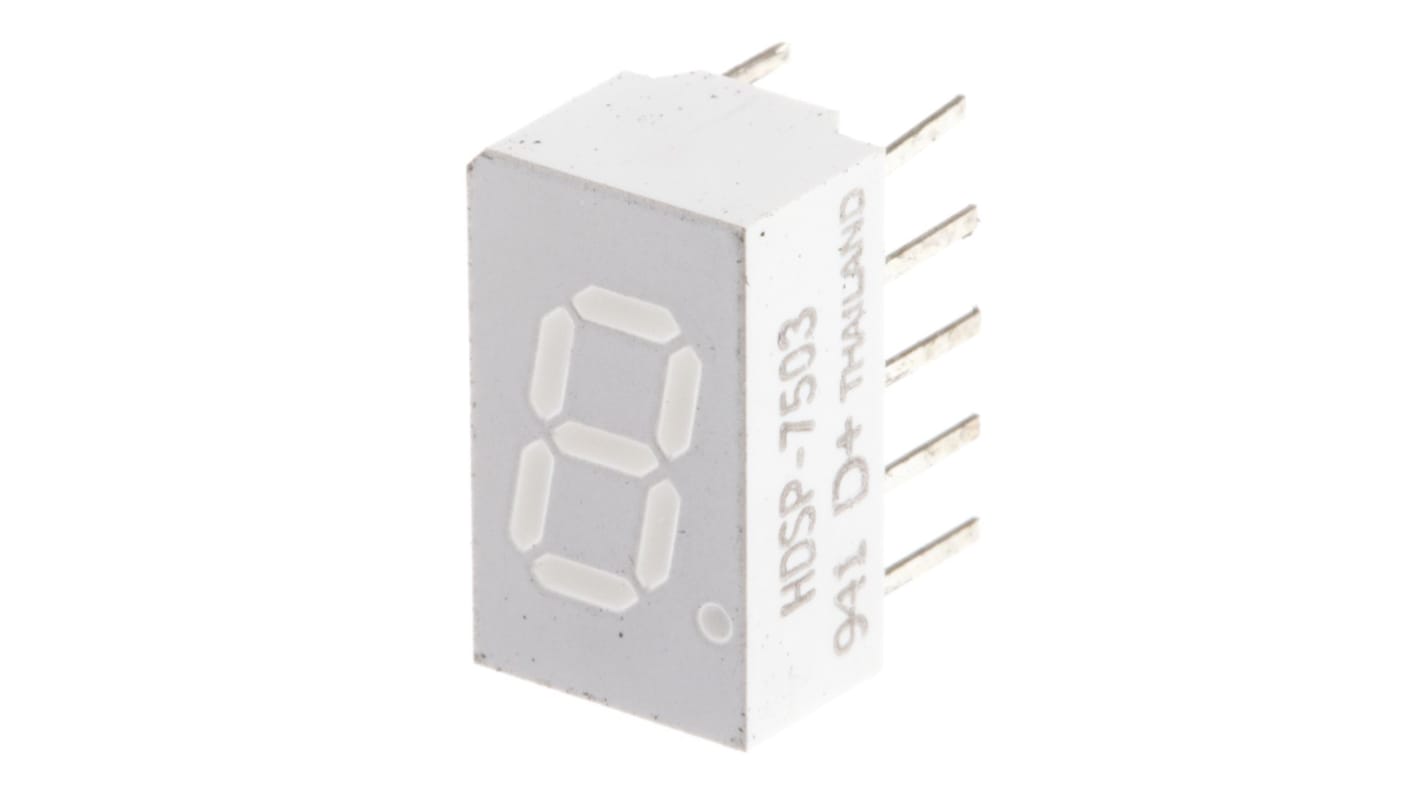

HDSP-7503-CD000 Broadcom 7-Segment LED Display, CC Red 5.4 mcd RH DP 7.6mm

  • RS Stock No. 195-186
  • Mfr. Part No. HDSP-7503-CD000
  • Manufacturer Broadcom
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Single-digit 7-segment Red LED Displays

A range of single-digit 7-segment Red LED displays from Broadcom (Avago Technologies) in a variety of character heights. The range includes both left-hand and right-hand decimal point formats.

//media.rs-online.com/t_line/L589086-02.gif

Broadcom 7-Segment LED Displays

Specifications
Attribute Value
Display Type 7-Segment
Number of Characters 1
LED Colours Red
Number of Segments 7
Dominant Wavelength 626 nm
Character Width 4.2mm
Character Height 7.6mm
Common Connection Cathode
Mounting Type Through Hole
External Depth 9.9mm
External Width 7.6mm
External Dimensions 12.7 x 7.6 x 9.91mm
External Height 12.7mm
Luminous Intensity 5.4 mcd
Colour of Face Grey
Forward Current 30mA
Forward Voltage 2 V
Minimum Operating Temperature -40°C
Maximum Operating Temperature +100°C
Operating Temperature Range -40 → +100°C
Decimal Orientation Right Side
694 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 4.14
(exc. GST)
$ 4.55
(inc. GST)
units
Per unit
1 - 9
$4.14
10 - 49
$3.65
50 - 99
$3.62
100 - 249
$3.42
250 +
$3.32
