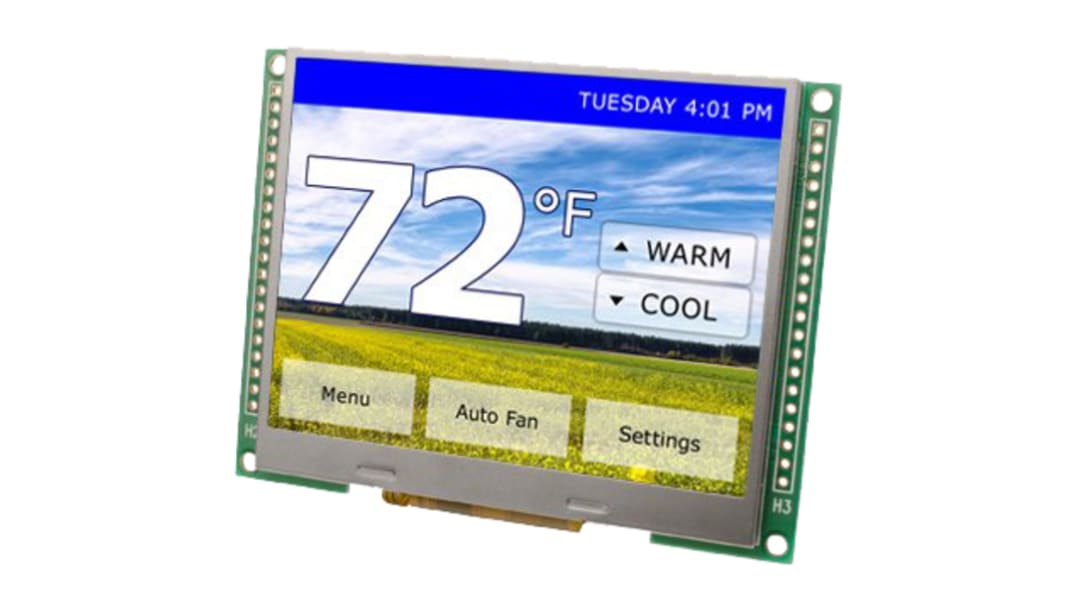

Displaytech INT035TFT-TS TFT LCD Colour Display / Touch Screen, 3.5in QVGA, 320 x 240pixels

  • RS Stock No. 750-2572
  • Mfr. Part No. INT035TFT-TS
  • Manufacturer Displaytech
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Displaytech Integrated TFT Modules

A range of integrated TFT LCD modules from Displaytech that overcomes the frustration of ever-changing driver ICs, screens and connection arrangements used in TFT display panels. These Displaytech modules offer designers a stable and versatile platform to work with whilst insulating them from changes made to the elements used within the modules over time. The modules include an auto-initialisation feature that provides a consistent user interface and reduces design time requirements. They are simple to mount and connections are made via two rows of plated-through holes. The smaller displays use the RAIO RA8872 LCD controller and the 3.5 inch displays and larger use the Soloman Systech SSD1963 controller.

• Built-in LCD controller
• LED backlighting with PWM control
• 8080/6800 MCU Interface (selectable)
• Auto-initialisation feature
• Low-power sleep mode
• Screen display rotation
• Touch-panel versions have an embedded 4-Wire Touch-Panel Controller

RAIO RA8872 Controlled Displays

1.8 inch displays
INT018ATFT (RS 740-6001)
2.2 inch displays
INT022ATFT (RS 740-6004)
2.4 inch displays
INT024BTFT (RS 740-6008)
INT024BTFT-TS (RS 740-6017) Touchscreen
2.8 inch displays
INT028ATFT (RS 740-6010)
INT028ATFT-TS (RS 740-6014) Touchscreen

Soloman Systech SSD1963 Controlled Displays

3.5 inch displays
INT035TFT (RS 750-2578)
INT035TFT-TS (RS 750-2572) Touchscreen
4.3 inch displays
INT043BTFT (RS 750-2581)
INT043BTFT-TS (RS 750-2584) Touchscreen
5.7 inch displays
INT057ATFT (RS 750-8671)
7 inch displays
INT070ATFT (RS 750-2588)
INT070ATFT-TS (RS 750-2597) Touchscreen

Displaytech Colour LCD Graphic Dispalys

Specifications
Attribute Value
Diagonal Display Size 3.5in
Interface Type 18 Data Bus
Resolution 320 x 240pixels
Touch Screen Yes
Touch Screen Type Resistive
Supply Voltage 20.4 V
Backlight Type LED
Display Mode Transmissive
Display Matrix Technology TFT
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Graphics Array Type QVGA
Operating Temperature Range -20 → +70°C
Height 66mm
Aspect Ratio 4:3
Contrast Ratio 400:1
Number of Colours 16,777,216
Brightness 220cd/m²
Width 87mm
Response Time 30ms
Power Supply Included Yes
49 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 92.34
(exc. GST)
$ 101.57
(inc. GST)
units
Per unit
1 - 9
$92.34
10 - 49
$89.86
50 - 99
$86.56
100 - 249
$83.62
250 +
$80.96
