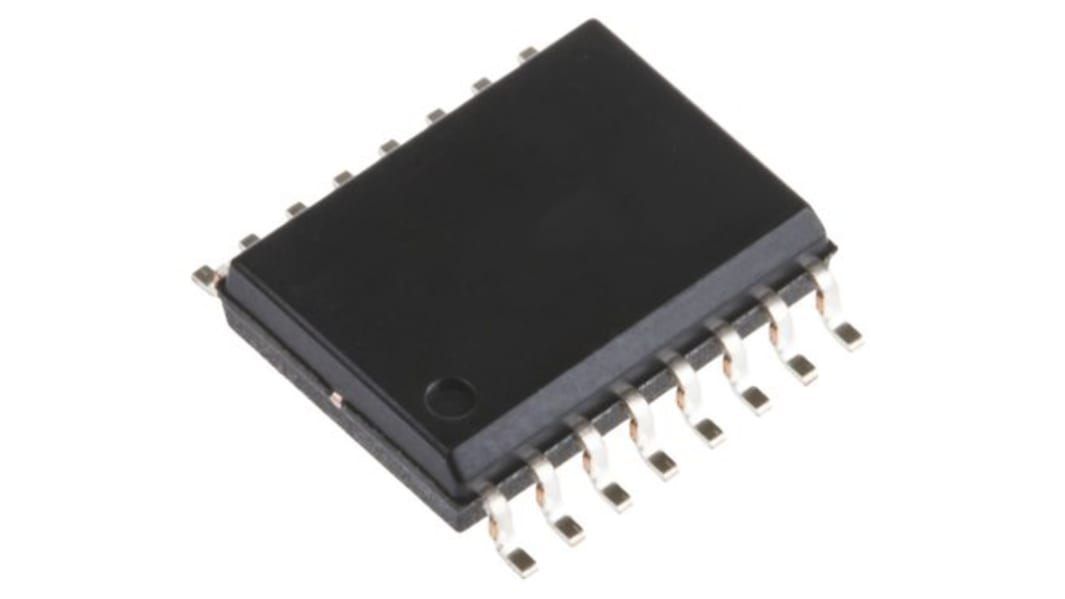

onsemi MC14043BDG 18 Bit D Type Latch, Transparent RS-Latch, 3 State, 16-Pin SOIC
- RS Stock No.:
- 184-4251
- Mfr. Part No.:
- MC14043BDG
- Brand:
- onsemi
48 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Tube of 48)
$0.94
(exc. GST)
$1.03
(inc. GST)
| Units | Per unit | Per Tube* |
| 48 - 432 | $0.94 | $45.12 |
| 480 - 912 | $0.903 | $43.344 |
| 960 + | $0.865 | $41.52 |
| *price indicative | ||
- RS Stock No.:
- 184-4251
- Mfr. Part No.:
- MC14043BDG
- Brand:
- onsemi
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The MC14043B and MC14044B quad R-S latches are constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. Each latch has an independent Q output and set and reset inputs. The Q outputs are gated through three-state buffers having a common enable input. The outputs are enabled with a logical "1" or high on the enable input, a logical "0" or low disconnects the latch from the Q outputs, resulting in an open circuit at the Q outputs.
Double Diode Input Protection
Three-State Outputs with Common Enable
Outputs Capable of Driving Two Low-power TTL Loads or One Low-Power Schottky TTL Load Over the Rated Temperature Range
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Pb-Free Packages are Available
Three-State Outputs with Common Enable
Outputs Capable of Driving Two Low-power TTL Loads or One Low-Power Schottky TTL Load Over the Rated Temperature Range
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Pb-Free Packages are Available
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Logic Family | 4000 |
| Latch Mode | Transparent |
| Latching Element | RS-Latch |
| Number of Elements per Chip | 1 |
| Number of Channels per Chip | 4 |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Set/Reset | Yes |
| Dimensions | 10 x 4 x 1.5mm |
| Height | 1.5mm |
| Length | 10mm |
| Maximum Operating Supply Voltage | +18 V |
| Automotive Standard | AEC-Q100 |
| Width | 4mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | -5 V |
| Minimum Operating Temperature | -55 °C |
