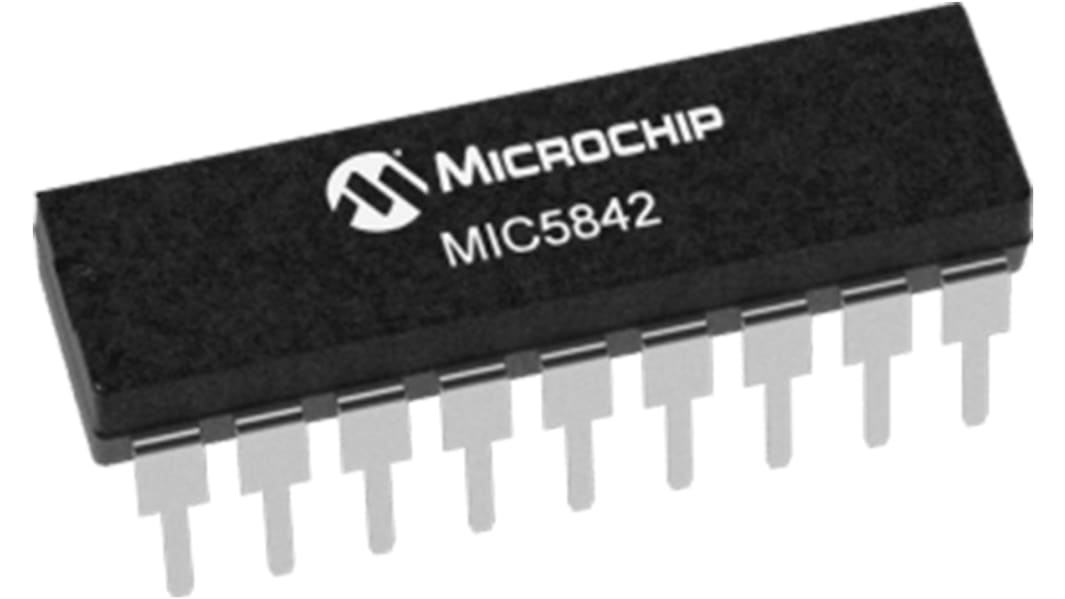

Microchip 8-Bit 8 Bit Latch, Transparent, 18-Pin DIP

View all Latch ICs

Subtotal (1 pack of 5 units)*

$36.94

(exc. GST)

$40.635

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 75 unit(s) shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +$7.388$36.94

*price indicative

RS Stock No.:
177-0828
Mfr. Part No.:
MIC5842YN
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

8 Bit Latch

Logic Family

CMOS

Logic Function

D Type

Latch Mode

Transparent

Number of Bits

8

Number of Channels

1

Mount Type

Through Hole

Package Type

DIP

Minimum Supply Voltage

-0.3V

Pin Count

18

Maximum Supply Voltage

15.3V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Series

MIC5842

Height

3.3mm

Width

6.35 mm

Length

23.27mm

Automotive Standard

No

Using BiCMOS technology, the MIC5841/5842 integrated circuits were fabricated to be used in a wide variety of peripheral power driver applications. The devices each have an eight-bit CMOS shift register, CMOS control circuitry, eight CMOS data latches, and eight bipolar current-sink Darlington output drivers. These two devices differ only in maximum voltage ratings. The MIC5842 offers premium performance with a minimum output breakdown voltage rating of 80V (50V sustaining).

3.3 MHz Minimum Data-Input Rate

CMOS, PMOS, NMOS, TTL Compatible

Internal Pull-Up/Pull-Down Resistors

Low-Power CMOS Logic and Latches

High-Voltage Current-Sink Outputs

Output Transient-Protection Diodes

3.3 MHz Minimum Data-Input Rate

CMOS, PMOS, NMOS, TTL Compatible

Internal Pull-Up/Pull-Down Resistors

Low-Power CMOS Logic and Latches

High-Voltage Current-Sink Outputs

Output Transient-Protection Diodes

Single or Split Supply Operation
