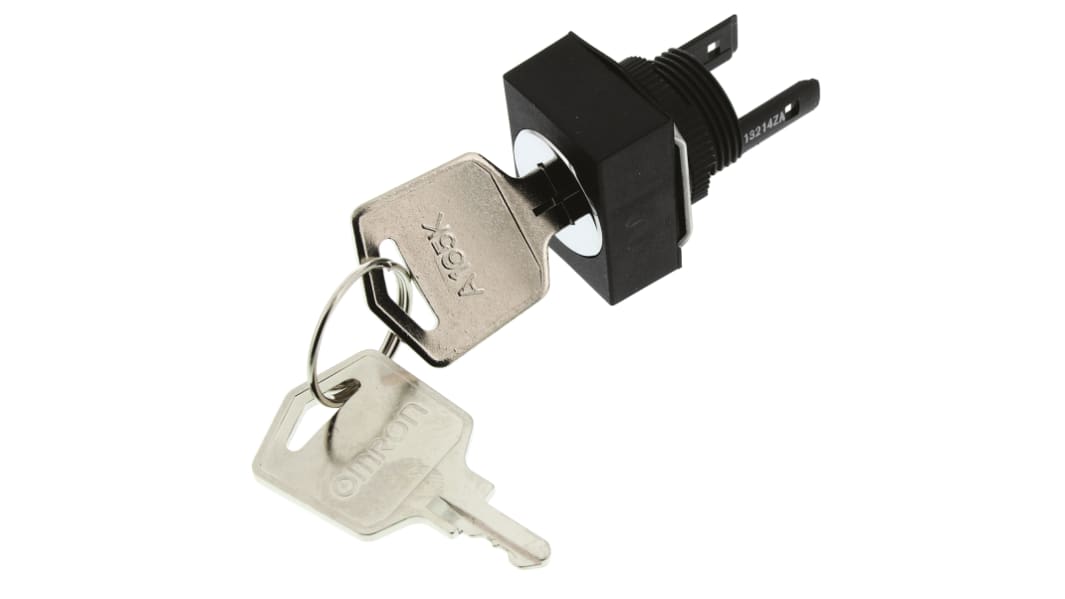

IP65 Key Switch, DPDT, 5 A @ 125 V ac 2-Way Flat-Key
- RS Stock No.:
- 340-8716
- Mfr. Part No.:
- A165KJ2ML2
- Brand:
- Omron
18 In Global stock for delivery within 5 working day(s)
24 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$135.91
(exc. GST)
$149.50
(inc. GST)
| Units | Per unit |
| 1 - 99 | $135.91 |
| 100 + | $133.56 |
- RS Stock No.:
- 340-8716
- Mfr. Part No.:
- A165KJ2ML2
- Brand:
- Omron
Technical data sheets
Legislation and Compliance
Product Details
Switch Assemblies - A16 Range
Miniature design, the smallest class in the industry
The same contacts can be used for both standard loads & microloads
Easy to wire terminal arrangement
Detachable switch unit
EN 60947-5-1
The same contacts can be used for both standard loads & microloads
Easy to wire terminal arrangement
Detachable switch unit
EN 60947-5-1
Omron 16mm Diameter Cut Out - 230Vac Rated
Modular construction (case + contact or indicator block + lens + lamp)
Easy, snap-together assembly
IP65 sealed
Conforms to EN60943-5-1, IEC947-5-1
Easy, snap-together assembly
IP65 sealed
Conforms to EN60943-5-1, IEC947-5-1
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 2 |
| Switch Operation | Latching |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Contact Current Rating | 5 A @ 125 V ac |
| IP Rating | IP65 |
| Key Type | Flat |
| Terminal Type | Solder |
| Bezel Shape | Rectangular |
| Key Index Angle | 90° |
| Maximum Operating Temperature | +55°C |
| Mechanical Life | 250000Operations |
| Minimum Operating Temperature | -10°C |
| Operating Temperature Range | -10 → +55°C |
