Microchip 8-Channel I/O Expander SPI SSOP 20, MCP23S08-E/SS
- RS Stock No.:
- 687-8770
- Mfr. Part No.:
- MCP23S08-E/SS
- Brand:
- Microchip

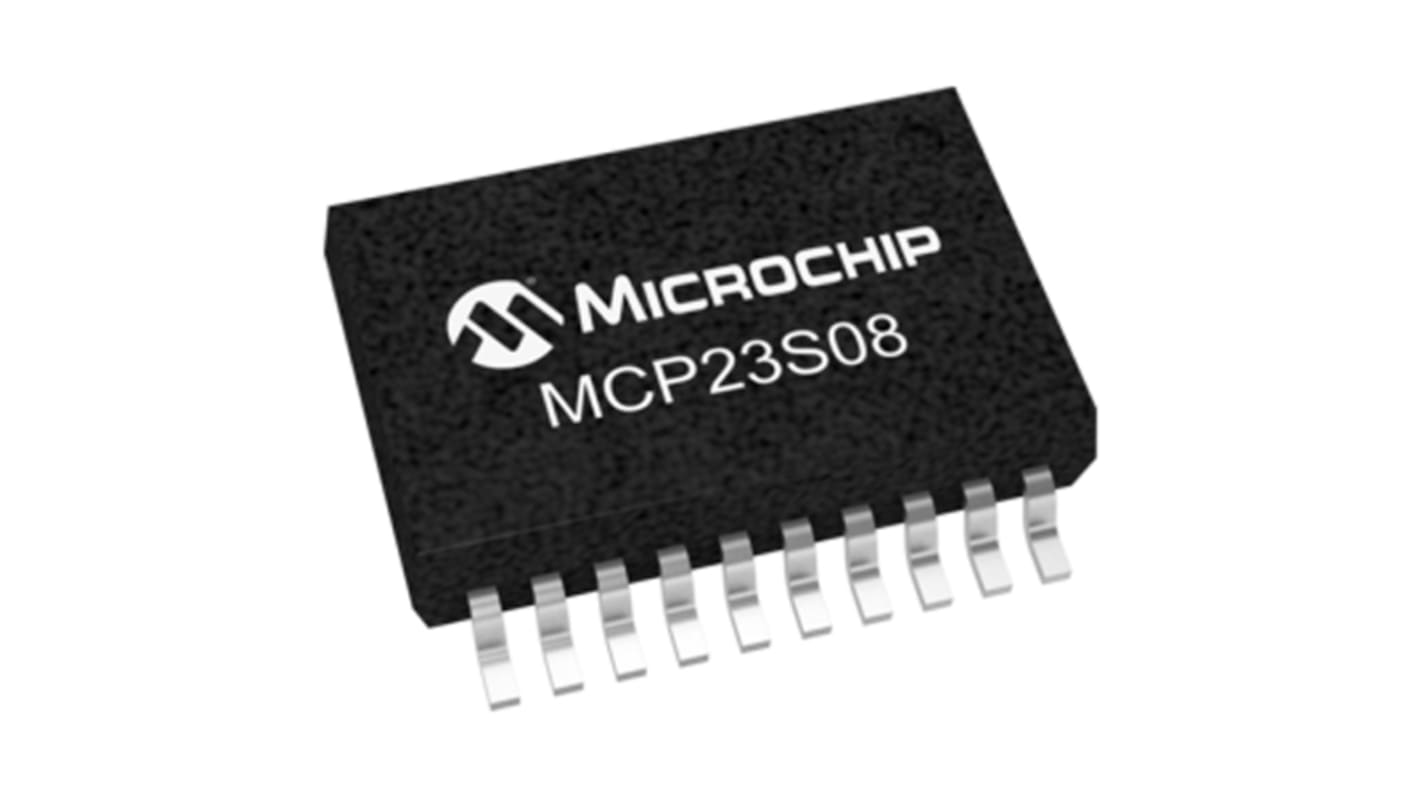

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$2.61
(exc. GST)
$2.87
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 30 unit(s) shipping from 01 June 2026
- Plus 278 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 16 | $2.61 |
| 17 - 33 | $2.56 |
| 34 + | $2.53 |
*price indicative
- RS Stock No.:
- 687-8770
- Mfr. Part No.:
- MCP23S08-E/SS
- Brand:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | I/O Expander | |
| Number of I/O Channels | 8 | |
| Package Type | SSOP | |
| Clock Frequency | 10MHz | |
| Interface Type | SPI | |
| Mount Type | Surface | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 1.8V | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 20 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Series | MCP23S08 | |
| Height | 2mm | |
| Length | 7.5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type I/O Expander | ||
Number of I/O Channels 8 | ||
Package Type SSOP | ||
Clock Frequency 10MHz | ||
Interface Type SPI | ||
Mount Type Surface | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 1.8V | ||
Minimum Operating Temperature -40°C | ||
Pin Count 20 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Series MCP23S08 | ||
Height 2mm | ||
Length 7.5mm | ||
Automotive Standard No | ||
Serial I/O Peripherals, Microchip
I/O Peripherals - Microchip
