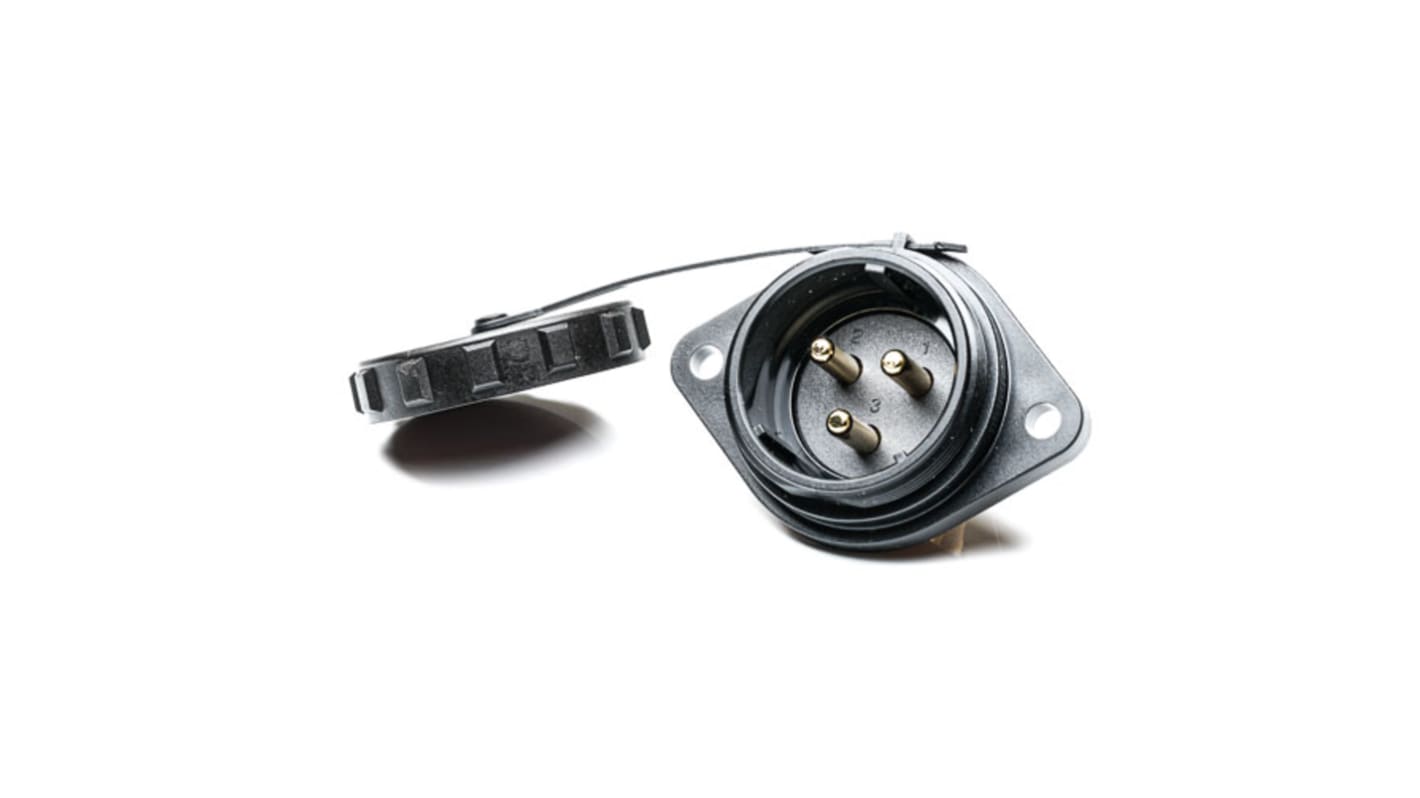

RS PRO Circular Connector, 3 Contacts, Flange Mount, Socket, Male, IP68

RS Stock No.:: 206-5231
Brand:: RS PRO

RS PRO Circular Connector, 3 Contacts, Flange Mount, Socket, Male, IP68

Bulk discount available

Subtotal (1 unit)**

$49.86

(exc. GST)

$54.85

(inc. GST)

4 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 4	$49.86
5 - 9	$49.54
10 - 49	$48.69
50 - 249	$47.03
250 +	$38.71

**price indicative

RS Stock No.:: 206-5231
Brand:: RS PRO

RS PRO SP29 Series, Panel Mount Connectors - Male

From RS PRO a fantastic series of panel mount connectors made from quality materials and designed for use in harsh environments. These panel mount connectors are available as male pins or female receptacles rated from 400 V to 500 V, and 5 A to 50 A current rating. These products are ideal for making your own customised connection for indoor/outdoor applications where a secure waterproof connection is required.

Installation

During assembly, these panel mount connectors are easy to install, and the job can be carried out by both engineers or DIY enthusiasts. Prior to installing the panel cut-out must match the connector dimensions, the correct wire AWG should be soldered or screwed to the contacts then panel mounted and secured with the retaining nut.

Why would you choose these panel mount connectors?

RS PRO SP29 series has been expertly constructed to ensure high-performance with a watertight connection seal. The SP29 series is a high-voltage power connector, designed with a PC/Nylon 66 panel connector shell, brass contacts, an O ring, and a retaining nut.

Features and Benefits

• Flanged panel mount connection

• Male plug power connectors

• Threaded coupling

• Solder or screw terminations

• Interconnect with female SP2910 series

• 2, 3 ,4, 7, 8, 10, 12, 16, 17, 20, 24 & 26 pole versions

• Cable outer diameter: 13 -16 mm

• Supplied with sealing cap

• Suitable for extremely harsh environments

• For use in indoor or outdoor applications

Specifications

• Housing material: Nylon, PC

• Contact Material: Brass nickel plated

• Insulation resistance: 2000 MΩ

• Temperature range: -40∼+85 °C

• Voltage Power Rating: 400 V or 500 V

• Current rating: 5 A to 50 A

• IP68

RS PRO Male Panel Mount DIN Connectors with Screw Termination

• 2 Pin, 50A, 500 V; RS stock no: 206-5228

• 3 Pin, 50A, 500 V; RS stock no: 206-5232

• 4 Pin, 25A, 500 V; RS stock no: 206-5234

• 7 Pin, 25A, 500 V; RS stock no: 206-5236

• 8 Pin, 25A, 500 V; RS stock no: 206-5238

• 10 Pin, 25A, 500 V; RS stock no: 206-5221

RS PRO Male Panel Mount DIN Connectors with Solder Termination

• 2 Pin, 50A, 500 V; RS stock no: 206-5227

• 3 Pin, 50A, 500 V; RS stock no: 206-5231

• 4 Pin, 25A, 500 V; RS stock no: 206-5233

• 7 Pin, 25A, 500 V; RS stock no: 206-5235

• 8 Pin, 25A, 500 V; RS stock no: 206-5237

• 12 Pin, 10A, 500 V; RS stock no: 206-5222

• 16 Pin, 10A, 500 V; RS stock no: 206-5224

• 17 Pin, 10A, 500 V; RS stock no: 206-5225

• 20 Pin, 5A, 400 V; RS stock no: 206-5226

• 24 Pin, 5A, 400 V; RS stock no: 206-5229

• 26 Pin, 5A, 400 V; RS stock no: 206-5230

Interconnection

RS PRO male panel mount connectors should be used with the equivalent SP2910 series female socket cable mount connectors. Browse our extensive range to find your ideal solution.

Why would you choose RS PRO for Industrial Circular Connectors?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Contacts	3
	Mounting Type	Flange Mount
	Plug/Socket	Socket
	Contact Gender	Male
	Termination Method	Solder
	IP Rating	IP68
	Current Rating	50A
	Body Orientation	Straight
	Series	SP29
	Voltage Rating	500V
	Mating Type	Threaded
	Housing Material	Nylon, PC
	Pole Format	3P
	Contact Plating	Gold
	Strain Relief	No
	Maximum Operating Temperature	85°C
	Contact Material	Brass
	Minimum Operating Temperature	-40°C

	Select all
	Brand RS PRO
	Number of Contacts 3
	Mounting Type Flange Mount
	Plug/Socket Socket
	Contact Gender Male
	Termination Method Solder
	IP Rating IP68
	Current Rating 50A
	Body Orientation Straight
	Series SP29
	Voltage Rating 500V
	Mating Type Threaded
	Housing Material Nylon, PC
	Pole Format 3P
	Contact Plating Gold
	Strain Relief No
	Maximum Operating Temperature 85°C
	Contact Material Brass
	Minimum Operating Temperature -40°C
